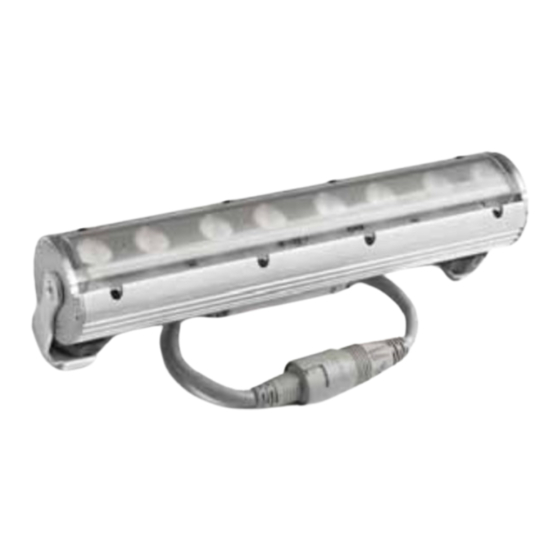

Tripix™
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tripix and is the answer not in the manual?

Questions and answers

Related Manuals for Martin Tripix

Summary of Contents for Martin Tripix

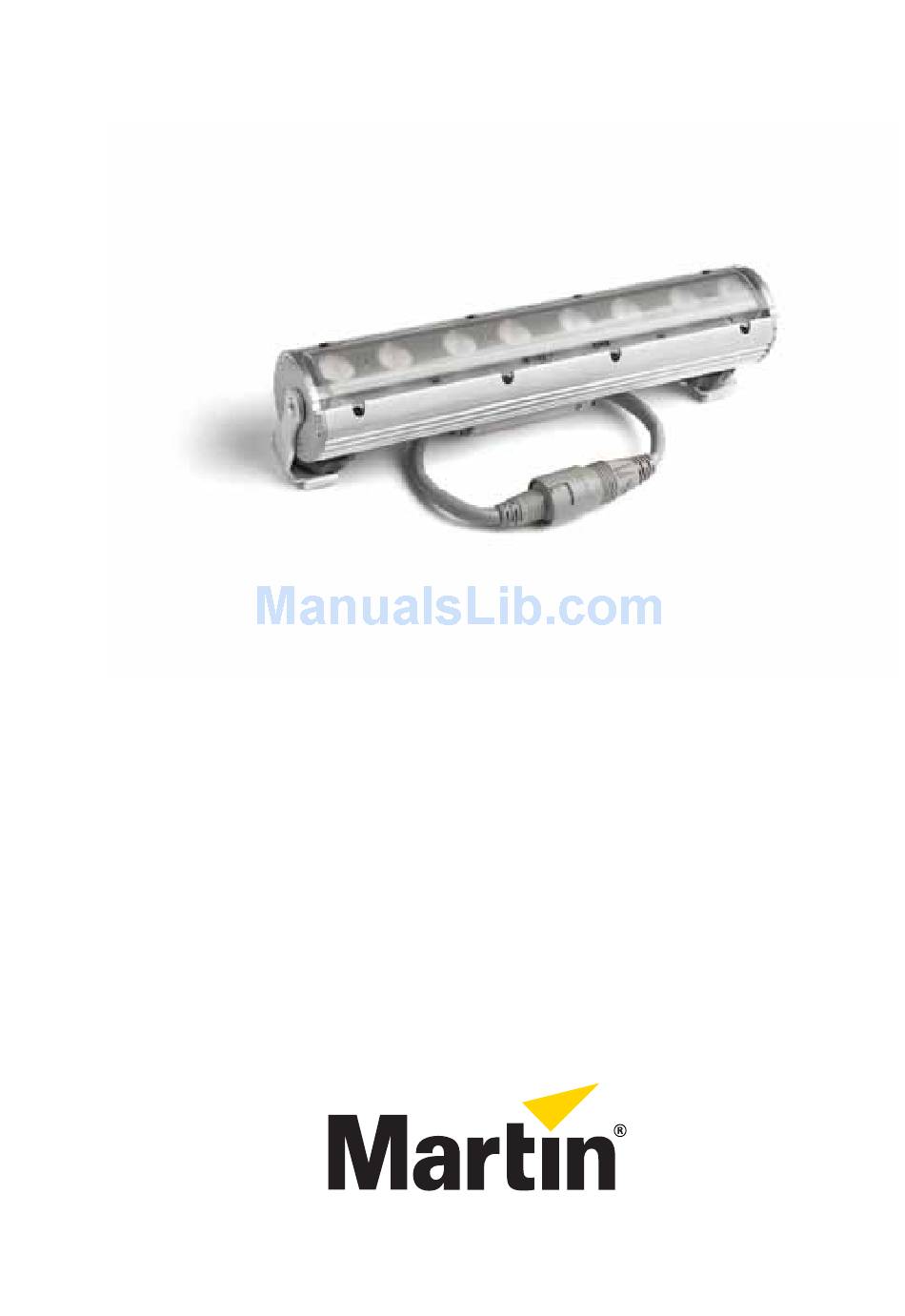

  • Page 1 Tripix™ user manual...

  • Page 2: Dimensions

    Martin Professional A/S or its affiliates and subsidiaries are trademarks owned or licensed by Martin Professional A/S or its affiliates or subsidiaries. The use of certain patents in Martin™ Tripix™ products is licensed by Color Kinetics, Inc. (see details printed on product)

  • Page 3: Safety Information

    Refer any operation not described in this manual to a qualified technician. If you have questions about how to operate the fixture safely, please contact your Martin dealer or call the Martin 24-hour service hotline at +45 70 200 201, or in the USA on 1-888-tech-180.
  • Page 4 • Do not operate the devices if the ambient temperature (Ta) exceeds 45° C (113° F). • The exterior of the fixtures and Tripix Power becomes hot, up to 65° C (149° F) during normal operation. Ensure that accidental physical contact with the devices is impossible.
  • Page 5 DIN rail safely. Any nuts used must be self-locking. Disposing of this product Martin™ products are supplied in compliance with Directive 2002/96/EC of the European Parliament and of the Council of the European Union on WEEE (Waste Electrical and Electronic Equipment), as amended by Directive 2003/108/EC, where applicable.

  • Page 6: Table Of Contents

    Contents Dimensions ....................... 2 Safety Information ..................... 3 Contents ......................6 Introduction ....................... 7 Unpacking ....................8 Using for the first time ................8 Physical installation ..................9 Location and orientation ................9 Mounting ....................10 Connections - general ..................14 Connection overview ................

  • Page 7: Introduction

    • 24 W LED power and 360 lumens total output (at narrow beam angle) from Tripix 300 • Tripix Power can drive up to twenty-four Tripix 300s or six Tripix 1200s, or any mixture of Tripix 300 and Tripix 1200 devices that not exceed 7.2 meters (23 ft.

  • Page 8: Unpacking

    • Carefully review “Safety Information” on page 3 • Check that the local AC power voltage is within the range listed on the Tripix Power serial number label • Install the Tripix Power and Tripix fixtures as described in this manual Tripix user manual...

  • Page 9: Physical Installation

    • Do not bury the devices or locate them in a space that is more critical than IP66. • Allow 5 cm (2 in.) free space around both the Tripix Power and the Tripix fixtures. • Install the Tripix Power and the Tripix fixtures at least 20 cm (8 in.) away from any combustible materials (wood, paper, etc.) and well...

  • Page 10: Mounting

    Mounting DIN rail The Tripix fixture is designed for mounting on standard 35 mm top-hat DIN rail. You can use the standard 35mm DIN Rail or use the Short Martin DIN rail 35mm for a more comfortable installation. Figure 1: Short Martin DIN rail 35mm Dimensions for the DIN rail supplied by Martin are given in Figure 1.
  • Page 11 (see B). Figure 2: Mounting on DIN rail Mounting the Tripix fixture vertically The mounting clamp screws will not hold the product securely on the DIN rail if fixture is installed vertically. You must therefore insert screws...
  • Page 12 Adjusting tilt angle The Tripix fixture can be tilted through 105°. Figure 4: Tilt angle To adjust the tilt angle: Figure 5. Turn the locking knob clockwise until it releases the fixture profile. Adjust the fixture to the desired tilt angle Rotate the locking knob counter-clockwise until it engages in the fixture profile and locks it in position.
  • Page 13 Mounting the Tripix Power The Tripix Power conforms to IP20 and is for indoor use only. Fasten the Tripix Power securely to a flat surface in a location that is accessible for service. To mount it, use M5 screws in the four mounting holes.

  • Page 14: Connections - General

    Warning! Do not exceed the maximum permitted number of fixtures per Tripix Power output channel, i.e. 24 Tripix 300 fixtures or 6 Tripix 1200 fixtures or the mixture of Tripix 300 and Tripix 1200 fixtures that not exceed 7.2 meters for one Tripix Power.

  • Page 15: Ac Power

    The Tripix Power is protected by a 6.3 amp slow-blow primary fuse located on the Tripix Power. Tripix user manual...

  • Page 16: Connecting To Power

    240 VAC nominal, 50/60 Hz. The Tripix Power has one output channel which can drive up to twenty- four Tripix 300s or six Tripix 1200s, or a mixture of Tripix 300 and Tripix 1200 fixtures that does not exceed 7.2 meters.

  • Page 17: Installation Setup

    The Tripix Power, a power supply that provides fixtures with power at 48 V DC. • A Power Inserter 3-way cable (see Figure 7), P/N 91611339, that is used to connect a Tripix Power device and a DMX signal to Tripix fixtures. Power Figure 7: Tripix Power Inserter Cable...
  • Page 18 Connection to power, fixtures and DMX is indicated on the Power Inserter (see Figure 8). The DMX signal runs from “In” to “Out”; The Tripix Power is connected to the plug marked “Power”, and Tripix fixtures are connected to the end marked “Out”.
  • Page 19 Use CAT5 or better data cable. See Figures 11 and 12. If you need to extend the distance between fixtures, use a set of Tripix Cable Adapters, IP66, Male+Female (P/N 91611323). When installing fixtures outdoors or in a wet or damp environment, install each cable adapter inside an IP66-rated electrical junction box (not provided).
  • Page 20 Figure 11: Cable Adapter IP66 Male+Female Figure 12: CAT5 cable and power cable connections Tripix user manual...
  • Page 21 See Figures 13 and 14. When extending the distance between Tripix Power and the Power Inserter cable, only a power cable (arrowed) is needed as no data is transferred. Power Figure 13: Extending Tripix Power and Power Inserter Figure 14: Only Power cable needed...
  • Page 22 Cable Adapters. Figure 17: Extending the link Figure 18: Both power cable and CAT5 cable needed 11. To continue the DMX link to other fixtures with XLR-type DMX input connections, use the Tripix DMX Output cable (P/N 91611338). Tripix user manual...

  • Page 23: Fixture Configuration

    Fixture configuration To set up Tripix fixtures for DMX control or stand-alone operation, you will need: ™ ™ • A PC running the Martin (Multi Utility Manager) application, version 1.6.2 or later. • A Martin™ DABS™ PC-to-fixture hardware interface Important! Version 1.4 or later of this device is required.
  • Page 24 DMX Address box, or • Set all the Tripix fixtures on the link to DMX address 1 using the Reset DMX address to 1 button. If you choose this option, all the Tripix fixtures will react identically to DMX control and behave as one.
  • Page 25 Select the DMX color control mode you want to use via MUM (see Figure 20). Figure 20: DMX Mode settings Setting pixel mode For Tripix 1200 fixtures, select the pixel grouping mode you want to use via MUM (see Figure 21). Figure 21: Pixel mode settings Tripix user manual...

  • Page 26: Configuring For Stand-Alone Operation

    MUM and set Stand-alone operation to Enabled/ Disabled (see Figure 22). Figure 22: Stand-alone settings Stand-alone sequence settings There are 64 stand-alone sequences in total (see Figure 23). Select a sequence to activate it. Figure 23: Stand-alone sequence settings Tripix user manual...
  • Page 27 • Fade times (the speed of the change from one step in a dynamic scene to the next step) can be set using the Scene fade time pull- down box. Figure 24: Stand-alone wait and fade times Tripix user manual...
  • Page 28 W - C - W - M - W - Y RED / ORANGE RED / PINK ALTERNATES I RED / AQUA GREEN / YELLOW GREEN / BLUE GREEN / ORANGE ALTERNATES II BLUE / PURPLE BLUE / ORANGE BLUE / YELLOW Tripix user manual...
  • Page 29 GREEN PULSE CYAN PULSE PULSES MAGENTA PULSE YELLOW PULSE WHITE PULSE RGB PULSE CMY PULSE RED FLASH BLUE FLASH GREEN FLASH FLASHES CYAN FLASH MAGENTA FLASH YELLOW FLASH WINTER-SPRING-SUMMER- AUTUMN DAY-NIGHT SUNRISE-SUNSET NATURE SUNNY AFTERNOON CLOUDY NIGHT DAYTIME Tripix user manual...
  • Page 30 • Four buttons also allow you to apply synchronized operation settings to all Tripix fixtures on the DMX link. If you select Set all as single fixtures – synchronize sequence and timing selections, all fixtures follow the stand-alone program you have set up in MUM: scene changes are synchronized and wait/fade times are identical.

  • Page 31: Operation

    Ambient temperatures The Tripix system can be operated at ambient temperatures from -30° C (-22° F) to 45° C (113° F). DMX color control modes When the Tripix system is set up for DMX-controlled operation, faders on the DMX controller are used to control color and intensity.
  • Page 32 200 – 10 000 K Pixel grouping mode If Tripix 1200 fixtures are set to 2 or 4 pixel mode, the DMX channels used are available for each pixel. For example, a Tripix 1200 in 4-pixel HSIC mode will use 16 channels: the first 4 channels will control HSIC on pixel 1, Channel 5 to 8 will control HSIC on pixel 2, and so on.

  • Page 33: Service And Maintenance

    However, optical components in all lighting fixtures are subject to wear and tear over the life of the Tripix fixture, resulting in gradual changes in color rendition, for example. The extent of wear and tear depends heavily on operating conditions and environment, so it is impossible to specify precise lifetimes for optical components.

  • Page 34: Fixture Information And Monitoring

    Two counters are available for each: an absolute and a resettable counter: Figure 26: Fixture info window See Figure 27. The Tripix displays voltage readouts for 48 V and 5 V components as well as temperature readouts for LEDs and the main PCB in the Monitor window:...

  • Page 35: Testing

    Replace fuses with ones of the same type and rating only. Do not attempt to bypass a fuse. The Tripix Power is protected by a 6.3 amp slow-blow primary fuse. If the Tripix Power is completely dead, the primary fuse may have blown.

  • Page 36: Software Installation

    Figure 29: Fuseholder Software installation It may be necessary to upload new software (i.e. firmware) to the Tripix fixtures if you believe that the product has a software-related fault or if you want to update to a newer version. Software updates are available from the Martin website (http://www.martin.com) and can be installed...

  • Page 37: Troubleshooting

    Inspect connections and cables. Correct poor connections. Fault on DMX link Repair or replace damaged cables. Check Tripix fixture is set to correct DMX mode. Incorrect DMX addressing Check Tripix fixture’s DMX address and channels assigned One or more fixtures to it at controller.

  • Page 38: Specifications

    Firmware update ............Serial upload via DMX link Optics Light source ................... 3-1 LED Total LED power ....Tripix 300: 24 W approx., Tripix 1200: 82 W approx. Total output per 300 mm segment Narrow (24° half-peak) ................360 lm Total output per 1200 mm segment Narrow (24°...
  • Page 39 Mixture of Tripix 300 and 1200 ............7.2 meters Connections Tripix Power mains input ..........Male (C14) IEC socket Tripix fixture power and DMX combined interconnection ....13-pin DIN Electrical AC power ....switch-selectable 100-120/200-240 VAC nominal, 50/60 Hz Main fuse ................T 6.3 A (slow blow) Thermal Cooling ..............

  • Page 40: Included Items

    1.0 m Extension Cable ..............P/N 91611334 5.0 m Extension Cable ..............P/N 91611333 Tripix Diffusers Narrow, includes eight 304 mm (12.0 in.) diffusers, installation by Martin Service only ........ P/N 91611329 Tripix Diffusers Medium, includes eight 304 mm (12.0 in.) diffusers, installation by Martin Service only ........
  • Page 41 Cable Adapter, IP66, Male+Female ..........P/N 91611323 Cartridge fuse 5 x 20mm, T 6.3 A ..........P/N 05020060 Different diffusers can be ordered and installed by a Martin Distributor only. Please indicate angles and models at time of order. Related Items Martin DABS1™...
  • Page 44 • Olof Palmes Allé 18 • 8200 Aarhus N • Denmark Tel: +45 8740 0000 • Fax +45 8740 0010...
