• Hot! Do not touch! The glass
and surfaces of this appliance
will be hot during operation and
will retain heat for a while after
shutting off the appliance. Severe
burn may result.
• Carefully supervise children in
the same room as appliance.
• If small children are present in the home, it
is recommended that this appliance be used
with a fire screen kit.
Printed in Canada
Rev. 8 Oct 2006
PIBISPANO

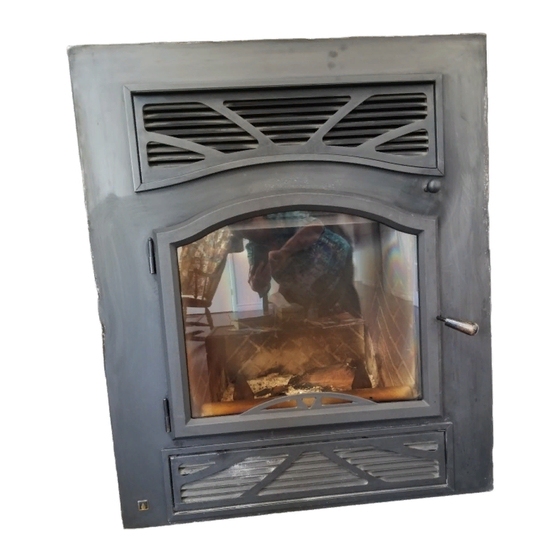

Installation and Operating
This installation manual will help you
obtain a safe,
installation
for
chimney
system.
understand these installation instructions
before beginning your installation.
CAUTION: Do not attempt to modify
or alter the construction of the fireplace
or its components. Any modification or
alteration of construction may void the
warranty, listings and approvals of this
system. In that case, Security Chimneys
International Ltd will not be responsible
for damages. Install the fireplace only as
described in these instructions.
PLEASE RETAIN THIS MANUAL
FOR FUTURE REFERENCE
WARNING:
operated without a door. Consult your
dealer to select the correct door model.
2125 Monterey St., Laval, Quebec, Canada, H7L 3T6
Instructions
efficient,
dependable
your
fireplace
Please
read
The fireplace cannot be
Listed to standards:
ULC-S610, UL-127
Report # 192-5237
and
and

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PANORAMA and is the answer not in the manual?

Questions and answers

Related Manuals for BIS PANORAMA

Summary of Contents for BIS PANORAMA

  • Page 1 Installation and Operating Instructions This installation manual will help you obtain a safe, efficient, dependable installation your fireplace chimney system. Please read understand these installation instructions before beginning your installation. CAUTION: Do not attempt to modify or alter the construction of the fireplace or its components.
  • Page 2 Printed in Canada Rev. 8 Oct 2006 PIBISPANO 25 YEAR LIMITED WARRANTY Security Chimneys International Ltd. warrants to the owner of a Security Fireplace that the wood burning fireplace will be • free from defects in material and workmanship, under normal use and service, for a period of twenty-five (25) years from the date of purchase.
  • Page 3 Door assembly gaskets, chipped or cracked refractory. Door, latch assembly, hinges, glass retainer, gaskets Although your BIS fireplace is very efficient, it should not, Facade assembly in any case, replace the main heating system of the home in Facade, hardware which it is installed.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS 1. SAFETY RULES FOR OPERATING THE BIS PANORAMA ......... 1 2. CERTIFICATION LABEL ................... 2 3. THE FIREPLACE....................2 ................... 3 INTRODUCTION 3.1.1 Parts Required 3.1.2 Additional Equipment (optional) ..............4 OPERATING THE BIS PANORAMA Fuel 3.2.1.1 3.2.1.2...
  • Page 5 SAFETY RULES FOR OPERATING YOUR FIREPLACE MODEL BIS PANORAMA Warning: An outside air kit must be installed on the fireplace model BIS PANORAMA Warning: The fireplace must be operated with the doors fully opened or fully closed. If the doors are left partly opened, smoke may be drawn into the room. If the unit is operated with the doors fully opened, the optional fire screen must be used.

  • Page 7: Certification Label

    CERTIFICATION LABEL...

  • Page 8: The Fireplace

    Security Chimneys International components. The BIS PANORAMA is not intended for use with a gas log. Failure to follow these • instructions will void the certification and the warranty of the fireplace and may result in an unsafe installation.

  • Page 9: Operating The Bis Panorama

    OPERATING THE BIS PANORAMA 3.2.1 Fuel The BIS PANORAMA is designed to work best when fuelled with seasoned cordwood. Hardwoods are preferred to softwoods since the energy content of wood is relative to its density. Hardwoods will result in a longer burning fire and less frequent refuelling. A moisture content of 15% to 20% (seasoned) is recommended.

  • Page 10: Combustion Control

    3.2.4 Combustion Control There is no flue damper in the BIS PANORAMA. As is common with airtight stoves, the combustion air damper controls the air entering the firebox. This allows for a more precise control of the fire.

  • Page 11: Accelerated Combustion

    Always set the damper so that flames are visible, that way you maintain a good clean combustion process. This method of burning should be used only after operating the BIS PANORAMA with the air control opened to produce a hot fire for about an hour. Slow...

  • Page 12: Starting And Maintaining A Fire

    3.2.9 Refuelling For Best Performance To refuel the BIS PANORAMA at the end of a burn cycle where only hot embers remain and flames are gone (not enough heat to maintain catalyst operating temperatures): A) Open the by-pass and air controls fully.

  • Page 13: Smoking - Causes And Troubleshooting

    As the fire burns, air goes up the chimney. This air must be replaced through leakage into the house or through the outside air duct. When operating the BIS PANORAMA, open a nearby window temporarily to check if there is adequate air replacement.

  • Page 14: Important Notes

    4. Wet wood Wet or tarred wood will smoulder and smoke instead of burn properly. 5. Dirty or blocked chimney Check to make sure the chimney is clear and reasonably clean. 6. Chimney not long enough The minimum chimney height is 12 ft., not including the fireplace height. The chimney must extend at least 3 feet (915 mm) above its point of contact with the roof and at least 2 feet (610 mm) higher than any roof or wall within 10 feet (3 m) of it.

  • Page 15: Maintaining Your Bis Panorama

    MAINTAINING YOUR BIS PANORAMA 3.3.1 Creosote When wood is burned slowly, it produces tar and other organic vapours which combine with expelled moisture to form a black deposit called creosote that accumulates on the flue lining. When ignited, this creosote makes an extremely hot fire. If the creosote accumulation is large, a creosote fire in the chimney can damage the chimney and overheat the surrounding wood framing.

  • Page 16: Catalytic Combustor

    3.3.4 Catalytic Combustor The BIS PANORAMA is designed with a catalytic combustor that will reduce pollution emissions and creosote build up while improving thermal efficiency. In order to optimise and maintain the combustor performance, it is important to visually check the combustor at least 3 times during the heating season to determine if physical degradation has occurred.

  • Page 17: Door Installation

    Figure 4 3.3.8 Door Installation The door must be installed only when the installation of the BIS PANORAMA is completed. All you have to do is fit the male part of the hinge, already fixed on the door, in the female part, which is already fixed on the fireplace.

  • Page 18: Door Adjustment

    Figure 6 3.3.10 Glass Care - Replacement The glass used for the BIS PANORAMA is a high temperature ceramic glass. If the glass breaks, it must be replaced with a ceramic glass. Tempered glass or ordinary glass will not withstand the high temperatures of the BIS PANORAMA. Replacement ceramic glass should be purchased from a Security Chimneys International dealer.
  • Page 19 Around ash trap 8" 2" wide x 1/4" thick...

  • Page 20: Fireplace Installation

    3. A minimum of 7’ (2134 mm) measured from the floor to the ceiling is required to install the BIS PANORAMA. The appliance can be installed on a combustible floor or on a base, leaving at least 6’8" (2032 mm) from the base of the unit to the ceiling.

  • Page 21: Hearth Extension Requirements

    3.4.2 Hearth Extension Requirements The fireplace can be installed directly on a combustible floor. Combustible floor in front of the fireplace must be covered with tile, marble, stone or any other non-combustible material (fig. 7). Figure 7...
  • Page 22 * The shelf may be lowered to 48 inches if the upper panel is blocked by the panel for clean face option (BPCF) and that hot air gravity ducts are used (7B30ZR-1). 3.4.3 Framing, Facing and Mantel The construction of the framing, facing, and mantel must be in accordance with the standards and the following illustrations (figures 8 to 12): 1.
  • Page 23 Figure 10 Figure 11...
  • Page 24 INSULATED CHASE CONSTRUCTION Figure 12...
  • Page 25 Facing 1. Combustible wall (such as Gyproc) must be installed flush with the fireplace. It may not project in front of and on the fireplace (i.e. the steel façade of the fireplace) (figure 15). 2. Decorative frame made of combustible material cannot project in front of and on the fireplace steel front, in the space delimited by the width of the unit (38") and a height of 54"...
  • Page 26 Figure 15...

  • Page 27: Hot Air Ducting Installation

    Maximum length See figure 17 The height of the louver must be measured from the base of the BIS to the middle point of the louver. When installing the double outlet system, the hot air outlets can be installed in the same room as the fireplace, or one or both of the outlets can be installed in adjacent or upper rooms.
  • Page 29 Figure 17 Figure 18...
  • Page 30 A furnace duct is only single wall and not double wall as is required for the BIS PANORAMA hot air exhaust. 7. Use only Security Chimneys International grills and components as described in this manual.

  • Page 31: Forced Air Kit (Not Tested Under Epa Certification)

    3.5.2 Forced Air Kit (Not tested under EPA certification) The knock-outs provided on the back and on the sides of the BIS PANORAMA allow the connection of insulated flexible pipe which enables you to heat adjacent rooms up to 50 feet from the fireplace.

  • Page 32: Outside Air Kit

    OUTSIDE AIR KIT The installation of an outside air assembly is required on the BIS PANORAMA. The outside air assembly must be installed according to the following requirements: 1. Duct length should be kept to a minimum. The maximum length of a 4" I.D. (100mm) insulated flexible duct is 20 ft.

  • Page 33: The Chimney

    2. The Security fireplace model BIS PANORAMA is listed only with Security S2100+ Chimneys International Ltd 7" dia. chimney systems (Secure Temp...

  • Page 34: Chimney Installation Instructions

    CHIMNEY INSTALLATION INSTRUCTIONS Cut and frame the holes in the ceiling, floor and roof where the chimney will pass (see figure 25). Use a plumb bob to line up the centre of the holes. The sizes are indicated in table 1 for the floor and ceiling holes and table 2 (page 28) for the roof holes. CHIMNEY SQUARE HOLE SIZE MODEL...
  • Page 35 Figure 26 Figure 27...
  • Page 36 AC CHIMNEY INSTALLATION (AIR COOLED GALVALUME CHIMNEY) NOTE HE OUTSIDE AIR KIT IS MANDATORY FOR BOTH FIREPLACE AND CHIMNEY Figure 28...
  • Page 37 ACBI CHIMNEY Figure 29 Figure 30 Table 2 ROOF DOWN SLOPE HOLE SIZE ASHT+ S-2100+ Secure Temp Secure Temp SLOPE ACBI HT6103+ HT6000+ Nova Temp Nova Temp Roof Pitch 7" 7" 7" 13 3/8" (340 mm) 15 1/8" (384 mm) 15"...

  • Page 38: Offset Chimney Installation

    OFFSET CHIMNEY INSTALLATON The minimum chimney height when using elbows is: Fireplace model BIS PANORAMA S-2100+ HT6000+ Chimney model Secure Temp / Nova Temp ASHT+ HT6103+ Secure Temp / Nova Temp ACBI Vertical installation 12 ft (3.66 m) Two (2) elbows 15 ft.
  • Page 39 TOTAL HEIGHT DEVIATION ONE LENGTH BETWEEN ELBOWS TWO LENGTHS BETWEEN ELBOWS CHIMNEY ELBOW DEVIATION 7” & LENGTH 8” 12” 18” 24” 36” 48” 8” & 36” 12” & 48” 18” & 48” 24” & 48” 36” & 48” 48” & 48” 10 _ 19 _ 25 _...
  • Page 40 Figure 31 Figure 32...

  • Page 41: Angled Wall Radiation Shield

    ANGLED WALL RADIATION SHIELD RSM+, RSMI30, RSMI45) When traversing a combustible wall with the chimney at a 30º or 45º angle, an angled firestop or wall radiation shield must be installed. Only one is required. Note: 45º angle for Canada only In cold climate locations, we recommend that you use the insulated wall radiation shield since it will maintain the home’s thermal barrier.

  • Page 42: Chimney Support Installation

    CHIMNEY SUPPORT INSTALLATION UNIVERSAL ROOF SUPPORT This support has three possible uses: ASHT+ HT6103+ S2100+ 1. For Secure Temp / Nova Temp and Secure Temp / Nova HT6000+ Temp , it must be used on a roof to support the chimney. 2.

  • Page 43: Chimney Chase And Multiple Terminations

    CHIMNEY CHASE AND MULTIPLE TERMINATIONS For the purpose of this manual, a chimney chase is considered a part of the chimney system rather than part of a building. The termination must be placed a minimum of 18" (460 mm) above the chase. For installations where more than one chimney is located in the same chase or within the same area, we suggest that their terminations be separated by at least 16"...

  • Page 44: Installation Instructions For Masonry Application

    For connection at 45º angles, a special connector (BISUMA for the BIS Ultra fireplace or BISPMA for the BIS Panorama fireplace) must be used to connect the liner to the insulated chimney. For connection at 30º, use the BISUMA30 or BISPMA30 connectors.

  • Page 45: Parts And Components List

    PARTS AND COMPONENTS LIST ACBI Chimney Description Part No. Lengths 7" dia. 12" length ACBI7L12 18" length ACBI7L18 36" length ACBI7L36 48" length ACBI7L48 15º elbow ACBI7E15 30º elbow ACBI7E30 Starter section ACBI7SBA Starter section, 30º ACBI7SBA30 Rain cap ACBI7CPR Spark arrester cap Supports Support section...

  • Page 46: Options

    OPTIONS (Fireplace) Description : Part No.: Complete double ducting system including: 2 elbows 90º, 2 telescopic 7B30ZK-1 lengths, 2 grill supports and 2 black grills Black grill with support 7B30ZO Brass grill for 7B30ZK 7B30ZGB Panel for clean face option BPCF Elbow 90º, 8"...
  • Page 47 Front refractory PR-SR2113 Back refractory PR-SR2056 Right side refractory PR-SR2057D Left side refractory PR-SR2057G Bottom refractory PR-SR2055 Catalytic combustor PR-SR2110 Catalytic combustor stainless steel casing PR-SR2111 Catalyst air tube (front) PR-SR2053 Secondary air tube (rear) PR-SR2051 Cast-iron log supports (2) 7B30B2CH Louver frame (top) PR-SR2131...
