Blood Pressure Measurement Device

Instructions For

REF # 7200-0001

www.statmap.net

Patents Pending

800-231-6370 or 813-289-5555

Ramsey Medical, Inc.

Table of Contents

Need help?

Do you have a question about the statMAP and is the answer not in the manual?

Questions and answers

Summary of Contents for Ramsey Medical statMAP

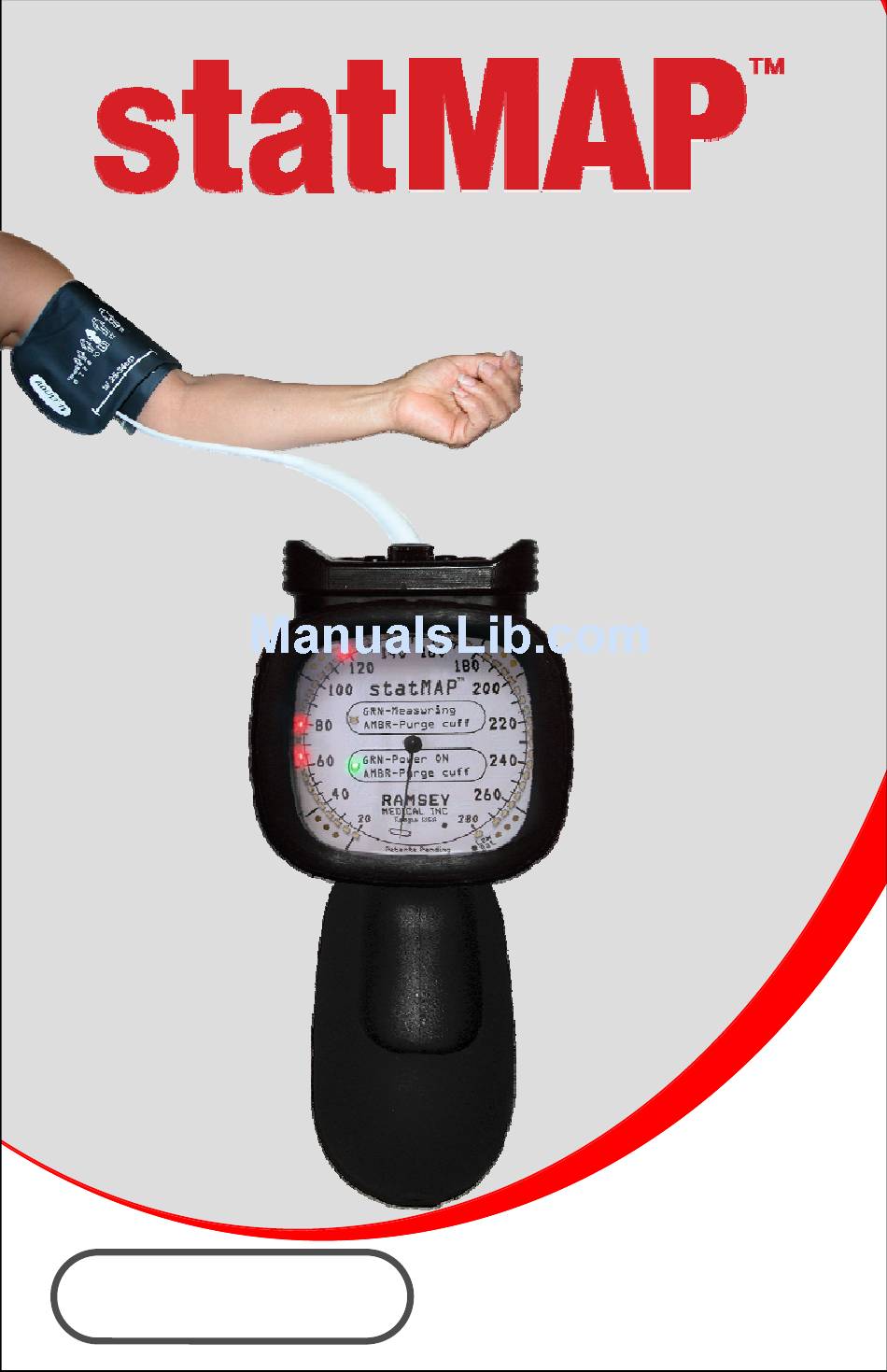

Page 1 Blood Pressure Measurement Device Instructions For REF # 7200-0001 www.statmap.net Patents Pending 800-231-6370 or 813-289-5555 Ramsey Medical, Inc.
Page 2: Table Of Contents
Page 2 TABLE OF CONTENTS Description Explanation of Symbols Important Information Precautions for Use Guidance and Manufacturer’s Declaration Accessories Controls and Indicators Operating Instructions (semi-automatic mode) Operating Instructions (manual mode) Battery Replacement Maintenance Troubleshooting Specifications Warranty Customer Service Repairs...
Page 3: Description
OFF then ON after a BP measurement session is finished. All of the session’s readings are then analyzed by the statMAP and a “Nominal Session BP Value” is displayed. This “Nominal Session Value” is not an...
Page 4: Explanation Of Symbols
Page 4 EXPLANATION OF SYMBOLS Type BF applied part (defibrillation-proof) IPX1 Drip –Proof Attention, refer to accompanying documents On / Off momentary switch Multi-Function Button...
Page 5: Important Information
Page 5 IMPORTANT INFORMATION Indications for use: statMAP is a prescription device and is indicated for use to measure systolic and diastolic pressure, mean arterial pressure (MAP) and heart rate of persons ages 12 and over using the oscillometric method of measurement.
Page 6: Precautions For Use
 Remove the batteries from statMAP if it will not be used for an extended length of time.  The statMAP, when used with Ramsey Medical approved...
Page 7 280mmHg Pediatrics (12 to 16 years) 200mmHg  Do not immerse the statMAP in water. If the device is splashed with water or becomes wet, wipe it immediately with a dry cloth.  Arrhythmias may extend the time required for blood pressure measurement beyond the design capabilities of the statMAP.
Page 8  There is potential for radio/television interference. statMAP has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Page 9: Guidance And Manufacturer'sdeclaration
Page 9 GUIDANCE AND MANUFACTURER’S DECLARATION Electromagnetic Emissions The statMAP is intended for use in the electromagnetic environment specified below. The customer or user of the device should assure that it is used in such an environment. Emissions Electromagnetic environment -...
Page 10 Page 10 Electromagnetic Immunity The statMAP is intended for use in the electromagnetic environment specified below. The customer or user of the statMAP should assure that it is used in such an environment. IEC60601 Compliance Electromagnetic Immunity test test level...
Page 11 Page 11 Electromagnetic Immunity The statMAP is intended for use in the electromagnetic environment specified below. The customer or user of the statMAP should assure that it is used in such an environment IEC60601 Compliance Immunity test Electromagnetic environment - guidance...
Page 12 Recommended separation distances between portable and mobile RF communications equipment and the statMAP The statMAP is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or user of the device can help prevent electromagnetic interference by...
Page 13: Accessories
Page 13 ACCESSORIES The following blood pressure cuffs are approved for use with statMAP : Cuffs: Arm Circumference Reorder No. Type Cuff Range 8061 Small Adult Size 10 20.0 to 27.0 cm 8062 Adult Size 11 25.3 to 34.3 cm...
Page 14: Controls And Indicators
Multi-Function Power Power Button: Power button turns the device On/Off. (In order to conserve battery life, the statMAP will automatically shut off after 10 minutes of “no use”). Multi-Function Button: The Multi-Function button is used to control two features of the statMAP: 1) Brightness of LED display.
Page 15 At that time, the LEDs will stop flashing and the GREEN Power ON LED will re- main illuminated, indicating that the statMAP is ready for use. During an automatic determination, the measuring LED will illuminate green indicating a measurement is in progress.
Page 16 Page 16 CONTROLS AND INDICATORS (con’t) Deflate Trigger: When the red deflate trigger is in the up position (valve closed), cuff is ready for inflation. When the red deflate trigger is in the down position (valve open), air is released from the cuff. Deflate Trigger up Deflate Trigger down (valve closed)
Page 17: Operating Instructions: Semi-Automatic Mode
Wrap cuff snugly around the patient’s arm, ensuring that the cuff index marker (line) falls within the range markings. 4. Connect the cuff hose to the statMAP, ensuring that the connection is tight. 5. Open the deflate trigger and verify the needle is located in the zero indicator.
Page 18 DO NOT OVER-INFLATE. Over-inflation (pressures beyond 260 mmHg) may cause damage to the statMAP and harm the patient. The gauge needle and the illuminated LED should track together and agree during the inflation. (If during inflation the gauge needle and LED are not in agreement within approximately +/- 5 mmHg, see Troubleshooting, page 26).
Page 19 BP determination is complete. The remaining air must be released from the cuff by squeezing the deflate trigger. The statMAP will indicate BP and Heart Rate at the end of the deflation on the LEDs to the nearest 5mmHg tic mark.
Page 20 20 LED will light and remain solid. 5) Unit is cleared of all previous session NSV readings. NOTE: If for any reason the statMAP is unable to get a BP reading, all LEDs will sequence around the dial once to indicate the failure to determine the BP.
Page 21 Blood Pressure Display and MAP (Mean Arterial Pressure) to the nearest mmHg The statMAP will indicate blood pressure at the end of each measurement on the LED display to the nearest 5mmHg tick mark. The multi-function button can be used to display the BP measurement to the nearest 1 mmHg.
Page 22: Operating Instructions: Manual Mode
The cuffed arm should be supported to maintain the cuff at the patient’s heart level. 2. When using statMAP in the manual mode, the unit should be off (not powered). 3. Select the appropriate cuff size. Place cuff so that the artery mark is aligned with the artery index marker.
Page 23: Battery Replacement
Remove old batteries and insert new AAA batteries according to symbols located on the label on the battery compartment. Replace the cover. Pressing the cover down to seat it against the housing of the statMAP, tighten the screw. Positive Negative...
Page 24: Maintenance
Cuffs, Tubing and Port Fittings : Before washing the cuff, remove it from the statMAP, close off the tube with a plug, and place the hook and loop fasteners in closed position. Use one or more of the following methods and allow to dry: ...
Page 25 Page 25 MAINTENANCE (con’t) Leak Test: The statMAP should be checked annually for leakage or when there is doubt about the validity of measurements. This check may be accomplished by plugging the outlet port, inflating the device to 200-260 mmHg, and checking for needle movement.
Page 26: Troubleshooting
1. Open the deflation valve with the trigger and assure that there is no pressure in the system. Now turn statMAP OFF and then ON again. The device should automatically reset for correct tracking. 2. If the first power cycle does not correct tracking, repeat On/Off cycle up to 2 additional times.
Page 27 5. Check LoBat light. Replace batteries if indicated. 6. Zero not set properly on power up. Make sure there is no pressure in the system when the statMAP is first powered up by opening the deflate trigger first and/or removing the cuff connector from the unit to assure atmospheric pressure, before turning Power ON.
Page 28: Specifications
Page 28 SPECIFICATIONS Indications/Contraindications for use: statMAP is a prescription device and is indicated for use to measure systolic and diastolic pressure, mean arterial pressure (MAP) and heart rate of persons ages 12 and over using the oscillometric method of measurement.
Page 29 Weight with Batteries: 6.0 oz., (0.375 lbs), (0.17 kg) Drip-Proof: IPX1 The statMAP is protected against vertically falling drops of water and conforms to the IEC 529 standard at the IPX1 level. Type BF Applied Part (defibrillation-proof) Attention, refer to accompanying documents...
Page 30: Warranty
Page 30 WARRANTY The Ramsey Medical, Inc. statMAP™ and cuffs are covered by a one year warranty against defects in materials and workmanship. Damage resulting from inappropriate use or physical abuse is not covered by the warranty. Units returned for warranty service will be repaired or replaced at the discretion of Ramsey Medical, Inc.
Page 32 Tampa, FL 33607 statMAP is a registered trademark of Ramsey Medical, Inc. Patents Pending 4920 W. Cypress St. Suite 110 Tampa, FL 33607 Phone: 800-231-6370 813-289-5555 Fax: 813-289-5454 Website: www.statmap.net E-mail: support@ramseymedical.com AWR400057-D Manual Revision 130604 06/24/13...
