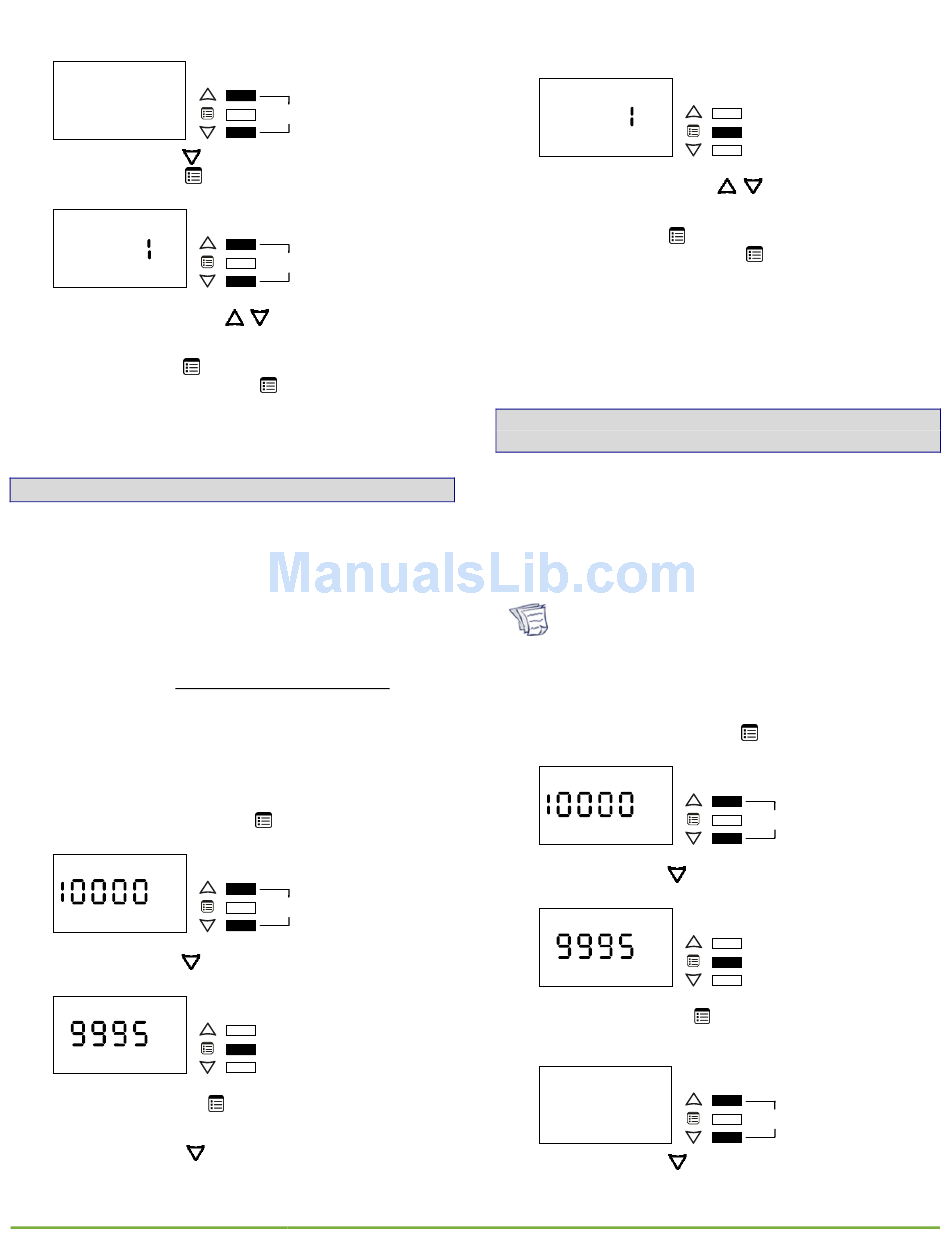

Distech Allure EC-Smart-Vue Series Hardware Installation Manual page 6

Screen timeout: 30 sec
GEN C
5. Press the down button
6. Press the Menu button
on the display. The current controller's Subnet ID is shown.
Screen timeout: 30 sec
SUBNE
7. Use the up and down buttons
ID to 1. Tip: Hold down either the up or down button to fast-
advance the display value.
8. Press the Menu button
9. Press and hold the Menu button
configuration menu.
The Allure EC-Smart-Vue sensor can now be used to go from one
controller to the next for commissioning purposes.
17. Commissioning Controllers
To commission a controller with a MAC Address DIP switch located on
the faceplate or under the cover in the case of an ECB-VAV Series
controller, first set the DIP switch to 0 (all off). When using an Allure
EC-Smart-Vue sensor for commissioning a controller (before code is
downloaded to the controller from EC-gfxProgram), connect an Allure
EC-Smart-Vue sensor to the controller with its Subnet ID set to 1. (see
Section 16).
For ECB-VAV and ECL-VAV Series controllers, commissioning can be
used to perform application selection if needed. Applications are pre-
loaded programs that enable the ECB-VAV and ECL-VAV to control a
typical VAV box. See the Pre-Loaded Application User Guide for more
information.
For ECB Series controllers only, during commissioning, the Allure
EC-Smart-Vue sensor is used to set the controller's BACnet
Address. Set the connected ECB Series controller's MAC Address as
follows:
1. Connect an Allure EC-Smart-Vue sensor to the controller with a Cat
5e patch cable. Wait for the display to show the room temperature.
2. Press and hold the Menu button
password menu. 10000 is shown on the display.
Screen timeout: 15 sec
PASSW
3. Use the down button
default password).
Screen timeout: 15 sec
PASSW
4. Press the Menu button
submitting the password, the GEN CFG menu appears on the
display.
5. Press the down button
The MAC ADDRESS menu is shown with the current controller's
BACnet MAC Address.
6/10
OR
once to enter the GEN CFG submenu.
several times until SUBNET ID appears
OR
to set the controller's Subnet
once.
for 5 seconds to exit the
for 5 seconds to enter the
OR
to set the number to 9995 (this is the
to submit the password.
once to enter the GEN CFG submenu.
6. Use the up and down buttons
Address. Only addresses from 1 to 127 are recommended to be
used.
7. Press the Menu button
8. Press and hold the Menu button
configuration menu.
Once the controller's communications network is operational, the
controller can be programmed with EC-gfxProgram. For each Allure
EC-Smart-Vue sensor, set its Subnet ID number to the block number
of its associated ComSensor block in EC-gfxProgram. This is done in
the Allure EC-Smart-Vue's GEN CFG menu under SUBNET ID. The
range of valid Allure EC-Smart-Vue Subnet IDs is shown in Table 8-1.
18. Setting the BAUD Rate (optional – BACnet
controllers only)
By default, the BAUD rate for the controller is set to automatically
detect the current communication BAUD rate of the connected BACnet
MS/TP network (AUTO). This is the preferred setting for a controller.
However, at least one controller on the BACnet MS/TP network data
bus must have its BAUD rate set. The preference is to set the building
controller's BAUD rate (if present). Otherwise, set the BAUD rate on
one controller that will set the BAUD rate for all other controllers (to act
as the master for setting the BAUD rate).
When the Baud rate is set to AUTO, the controller cannot
initiate any communication until it has detected the baud rate
of the BACnet MS/TP network. If all controllers on the
BACnet MS/TP network are set to AUTO, then all controllers
will not communicate.
Set the connected controller's BAUD rate as follows:
1. Connect an Allure EC-Smart-Vue sensor to the controller with a Cat
5e patch cable. Wait for the display to show the room temperature.
®
MAC 2. Press and hold the Menu button
password menu. 10000 is shown on the display.
3. Use the down button
default password).
4. Press the Menu button
submitting the password, the GEN CFG menu appears on the
display.
Upon
5. Press the down button
Screen timeout: 30 sec
MAC A
to set the controller's MAC
once to apply the value.
for 5 seconds to exit the
for 5 seconds to enter the
Screen timeout: 15 sec
PASSW
OR
to set the number to 9995 (this is the
Screen timeout: 15 sec
PASSW
to submit the password.
Screen timeout: 30 sec
GEN C
OR
once to enter the GEN CFG submenu.
Upon
