Ensure proper ventilation of device and avoid areas where
•
corroding, deteriorating or explosive vapors, fumes or gases may
be present.
• Do not drop the sensor or subject it to physical shock.
• If the device is used and/or installed in a manner not specified by
Distech Controls, the functionality and the protection provided by
the device may be impaired.
• To ensure reading accuracy, handle sensor with care and avoid
installing on a vibrating surface.
Make connections to the Allure EC-Smart-Vue sensors last.
Yanking the cable while it is attached to the sensor can
damage the connector.
Any type of modification to any Distech Controls product will
void the product's warranty.
Take reasonable precautions to prevent electrostatic
discharges to the device when installing, servicing or
operating it. Discharge accumulated static electricity by
touching one's hand to a securely grounded object before
working with the device.

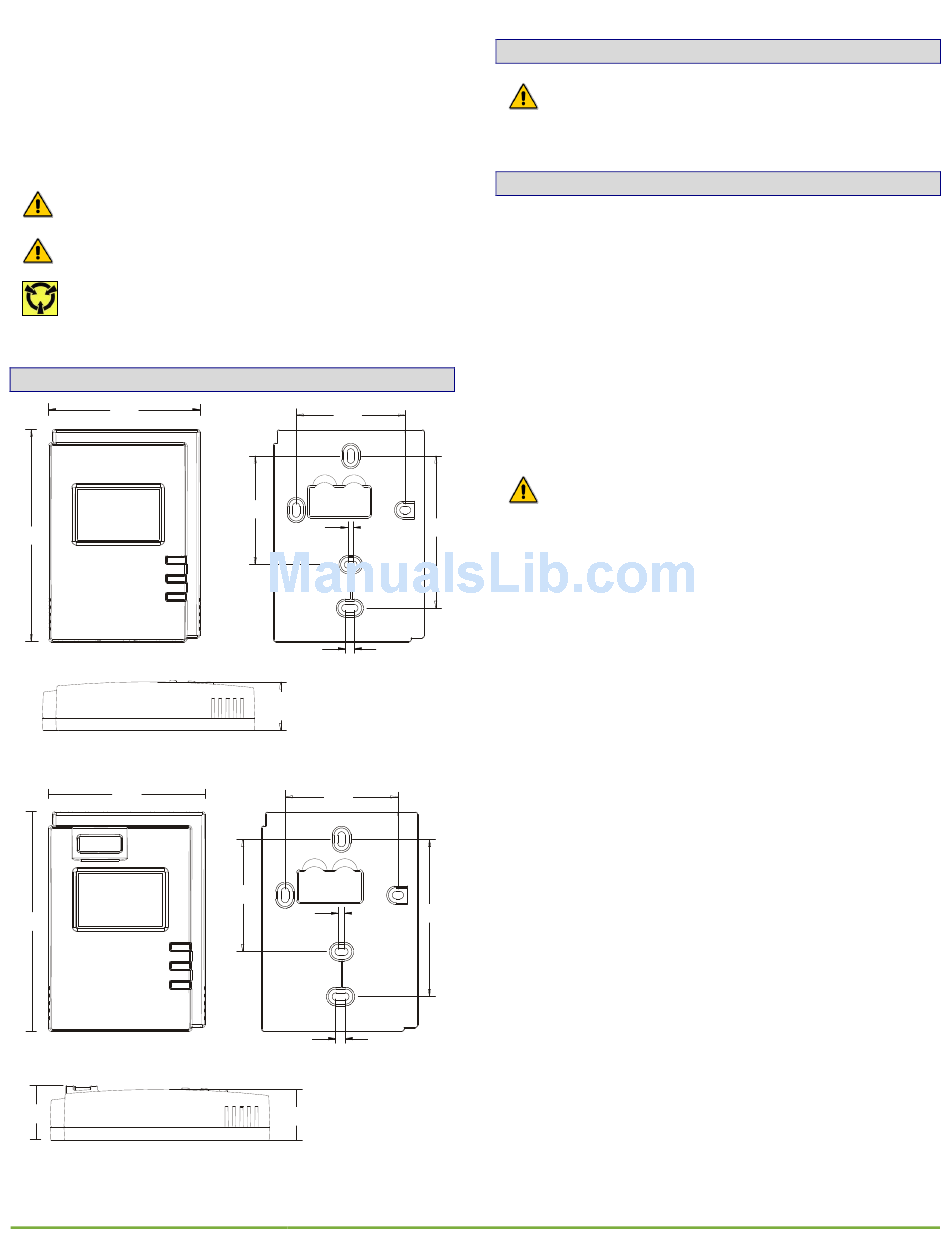

4. Device Dimensions

3.29
(83.57)
4.62
(117.27)
Figure 4-1: Front view, back plate, and side view for models
WITHOUT motion sensor
3.29
(83.57)
4.62
(117.27)
1.15
(28.84)
Figure 4-2: Front view, back plate, and side view for models WITH
motion sensor. Note the motion detection window in
the upper left corner of the sensor.
2/10
2.37
(60.30)
2.36
(60.00)
0.12
(3.00)
0.20
(4.98)
Mounting Base Plate Shown Detached
1.06
Unit Legend:
(26.81)
inches (mm)
2.37
(60.30)
2.36
(60.00)
0.12
(3.00)
0.20
(4.98)
Mounting Base Plate Shown Detached
1.06
(26.81) Unit Legend:
inches (mm)

5. General Wiring Recommendations

Turn off power before any kind of servicing.
• All wiring must comply with national and local electrical codes.

6. Mounting Instructions

The Allure EC-Smart-Vue sensors have been specially designed for
easy installation. However, certain conditions apply when choosing a
suitable location for the device:
• The device should not be installed on an exterior wall.
• The device should not be installed near a heat source.
• The device should not be installed near an air discharge grill.
• The device should not be installed in a place where it can be
affected by the sun.
• Install the device in an area that provides proper device ventilation.
Nothing must restrain air circulation to the device.
• Models equipped with a motion sensor should be installed in a
location and at a height where people will pass in front of it, within
its detection zone. See the datasheet for this information.
• Models equipped with a CO
are periodically unoccupied (e.g. during evening or nighttime
hours).
The Allure EC-Smart-Vue sensor has not been designed for
outdoor use.
Installation Procedure
3.31
(84.00)
1. Remove the security screw from the device (Figure 7-1).
2. Open the device by pressing in the two (2) tabs on the bottom of
the device with a flat screwdriver and pulling the bottom side of the
front plate out.
3. Pull all cables 6" (15 cm) out of the wall, and insert them through
the central hole of the back plate.
4. Align the back plate with the wall and mark the location of the
mounting holes on the wall. Make sure to orient the proper side of
the back plate facing upwards.
5. Remove the back plate and drill holes in the wall if necessary.
6. Install anchors in the wall if necessary.
7. Make sure that the mounting surface is flat and clean.
8. Screw the back plate onto the wall. Do not over tighten.
9. Plug the wire(s) into the connector(s).
10. Gently push excess wiring back into the wall.
11. Set any jumpers. See
12. Reattach the front plate and make sure it clips tightly into place.
Start by hooking the top in place, and then clip the bottom edge
into place.
13. Install security screw.
3.31
(84.00)
sensor must be used in spaces that
2
Figure 10-1.
