7. Device Components

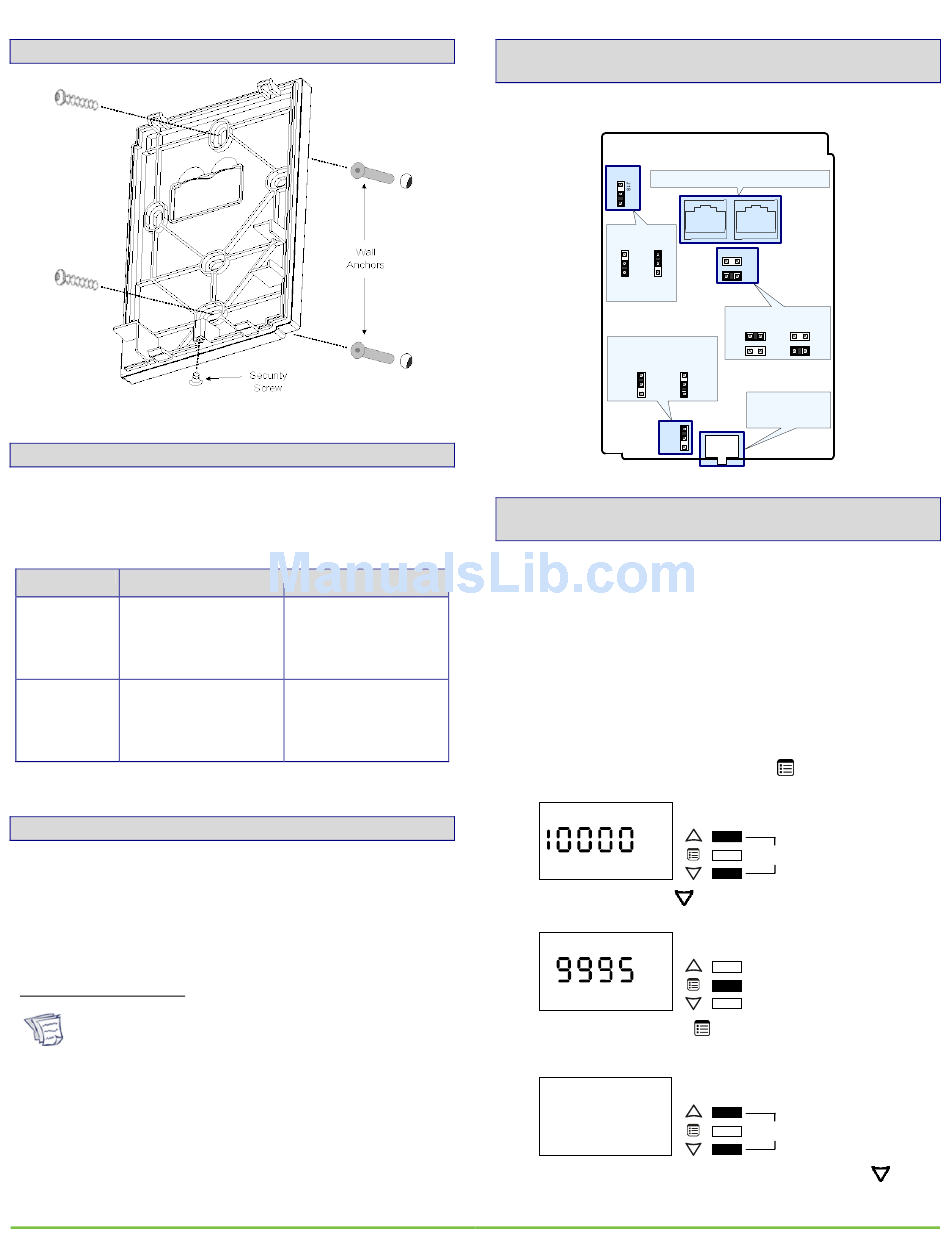

Figure 7-1: Mounting an Allure EC-Smart-Vue
8. Supported Quantity
Each controller supports a maximum number of Allure EC-Smart-Vue
sensors. The Subnet ID of all Allure EC-Smart-Vue sensors must be
set to be within the shown addressing range.
Table 8-1: Number of Allure EC-Smart-Vue sensors supported by
controller model
Series Maximum Number of Allure
EC-Smart-Vue sensors
1
ECB-VAV Series 4
ECL-VAV Series
ECB-103
ECL-103
ECB-203
ECL-203
1
ECB-300 12
ECL-300
ECB-400 Series
ECL-400 Series
ECB-600 Series
ECL-600 Series
1
A controller can support a maximum of two (2) Allure EC-Smart-Vue models
equipped with a CO sensor. The remaining connected Allure EC-Smart-Vue
2
models must be without a CO sensor.
2
9. About the Allure EC-Smart-Vue CO
The Allure EC-Smart-Vue-C/-CM/-CH/-CHM are factory calibrated to
accurately read CO concentration levels at sea level. When these
2
Allure EC-Smart-Vue sensors are used in locations where the
elevation is greater than 500ft (152m) above sea level, you must set
the Elevation input of the corresponding ComSensor block in
EC-gfxProgram to the current location's elevation to obtain the most
accurate readings.
For more information, refer to the Inputs and Outputs section in the
EC-gfxProgram User Guide
Under normal conditions, an Allure EC-Smart-Vue sensor
with CO sensor will reach its operational accuracy after 25
2
hours of continuous operation on condition that it was
exposed to ambient air reference levels of 400 ppm ±10
ppm CO .
2
Permitted Subnet ID
Addressing Range
1 to 4
1 to 12
Sensors
2
10. Connector and Configuration Jumper Location
and Identification
Allure EC-Smart-Vues sensors have the following onsite configurable
jumpers.
Allure EC-Smart-Vue
Front Cover, Interior View
PIR
LED Pass-Through Subnetwork RJ-45 Connectors
D
E
PIR LED
Enabled Disabled
Motion Detection
Models Only
Local Area Network Type
Jumper
BACnet L W
ON
J11
BAC
LON
Figure 10-1: Connector and Jumper Locations
11. Setting Up the Allure EC-Smart-Vue with Motion
Sensors
The following procedure describes how to commission and test the
Allure EC-Smart-Vue sensors equipped with motion sensors as well as
adjust the motion sensitivity (Allure EC-Smart-Vue-M/-CM/-HM/-CHM).
1. Connect an Allure EC-Smart-Vue with motion sensor to the
controller with a Cat 5e patch cable.
2. After a 30-second warm-up period, if movement is detected, the
motion sensor light will turn on.
3. To test the sensor functionality, aim the sensor in the direction you
want to detect motion and walk at a normal pace across the typical
detection zone and verify that the sensor light turns on. The light
will turn on and after 2 seconds of non-movement, the motion
sensor light will turn off.
4. Now to set the motion sensitivity, on the Allure EC-Smart-Vue
sensor, press and hold the Menu button
the password menu. 10000 is shown on the display.
Screen timeout: 15 sec
PASSW
5. Press the down button
default password).
Screen timeout: 15 sec
PASSW
6. Press the Menu button
submitting the password, the GEN CFG menu appears on the
display.
Screen timeout: 30 sec
GEN C
7. To enter the GEN CFG submenu, press the down button
J6
ON
EOL
OFF
Subnetwork End of Line
Enabled Disabled
ORKS
3.5 mm (1/8") Local
Area Network Access
Jack
for 5 seconds to enter
OR
to set the number to 9995 (this is the
to submit the password.
OR
Upon
once.
