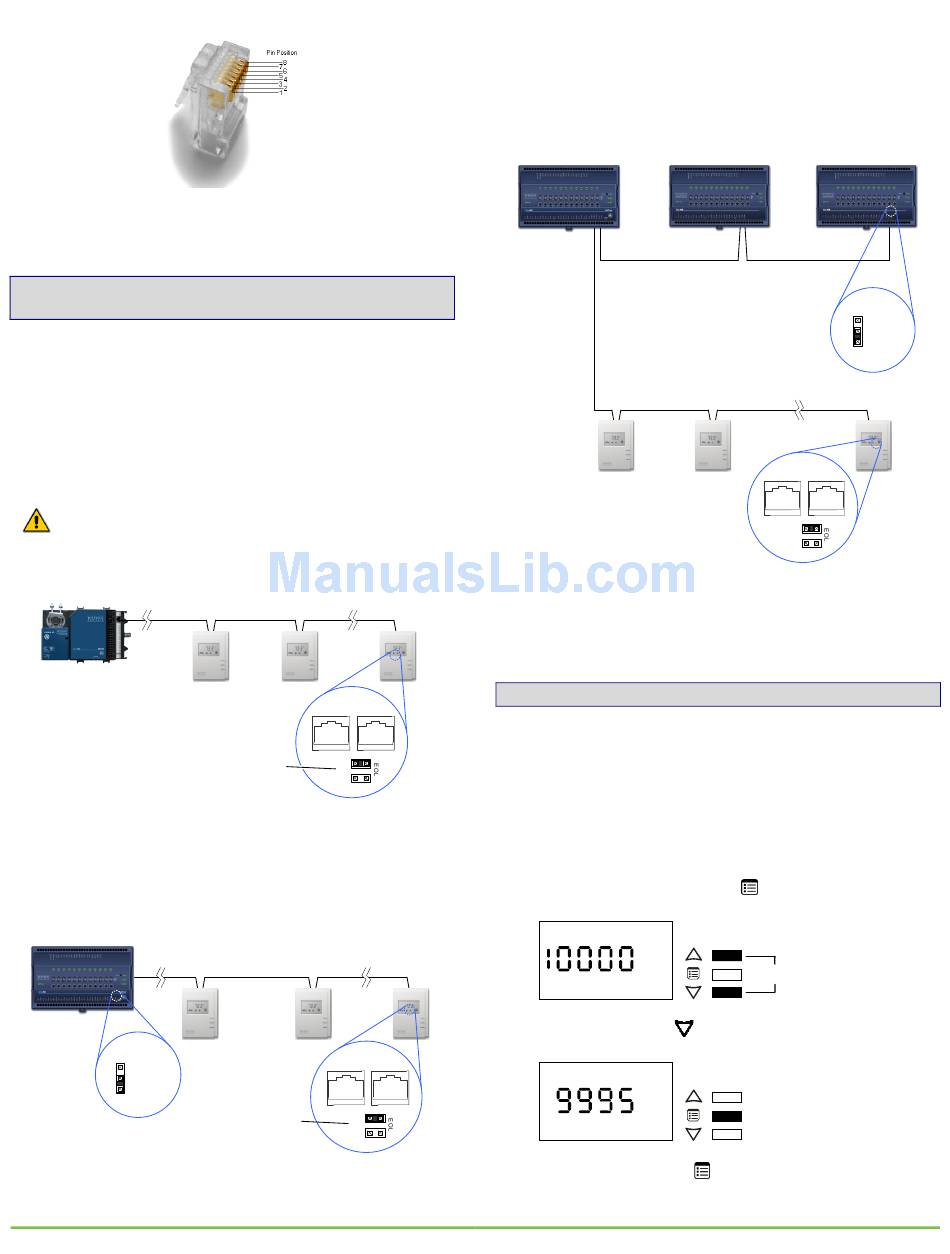

Figure 14-2:
Pins on RJ-45 Jack Face
Patch cables fitted with connectors supplied by Distech Controls are
wired as T568B.
15. Subnetwork Bus Topology and EOL
Terminations
Only a daisy-chain topology is acceptable for the EC-Smart-Vue
subnetwork Bus. T-connections are not allowed.
When one or more Allure EC-Smart-Vue sensors are installed with an
ECB-VAV Series, ECB-103, ECB-203, ECB-300, ECB-400 Series,
ECL-VAV Series, ECL-103, ECL-203, ECL-300, or ECL-400 Series
Controller, only the EOL terminations of the last Allure EC-Smart-Vue
sensor are set to ON. All other Allure EC-Smart-Vue sensors must
have their EOL terminations set to OFF. The controller must be the first
devices on the bus as the EOL termination in these devices are
permanently enabled.
A controller can support a maximum of two (2) Allure
EC-Smart-Vue models equipped with a CO
remaining connected Allure EC-Smart-Vue models must be
without a CO
sensor.
2
EC-Smart-Vue Sub-Network Bus – Cat 5e Cable with RJ-45 Connectors
Controller Series:
· ECB-VAVS / ECB-VAV
· ECB-103
· ECB-203
· ECB-300
· ECB-400
· ECL-VAVS / ECL-VAV
· ECL-103
· ECL-203
· ECL-300
· ECL-400
Figure 15-1:
Setting the EOL Terminations on the Allure
EC-Smart-Vue Subnetwork Bus for non ECB-600 or
ECL-600 series controllers
When one or more Allure EC-Smart-Vue sensors are installed with an
ECB-600 / ECL-600 (without an ECx-4XX IO Extension Module), only
the EOL terminations on the ECB-600 / ECL-600 and the last Allure
EC-Smart-Vue sensor are set to ON. All other Allure EC-Smart-Vue
sensors must have their EOL terminations set to OFF.
EC-Smart-Vue Sub-Network Bus – Cat 5e Cable with RJ-45 Connectors
Controller Series:
· ECB-600
· ECL-600
EOL OFF
EOL ON
For ECB-600 / ECL-600, set the
Sub-Network EOL to ON
Figure 15-2:
Setting the EOL Terminations on the Allure
EC-Smart-Vue Subnetwork Bus for ECB-600 or
ECL-600 Series controllers
sensor. The
2
EOL set to ON
at the last
ON
sensor at the
OFF
end of the Bus
EOL set to ON
at the last
ON
sensor at the
OFF
end of the Bus
When ECx-400 Series IO Extension Modules are installed with an
ECB-600 / ECL-600 Series controller and with Allure EC-Smart-Vue
sensor(s), only the EOL terminations on the last ECx-400 Series IO
Extension Module and the last EC Smart Vue are set to ON. All other
ECx-400 Series IO Extension Modules and Allure EC-Smart-Vue
models must have their EOL terminations set to OFF.
Typical ECB-600 /
Typical ECx-4XX Series Extension I/O Modules – For use
ECL-600 Controller
ECx-4XX Sub-Network Bus
For ECx-4XX:
• Last daisy-chained EC-Smart-Vue:
EOL Jumper is ON
• All other EC-Smart-Vue:
EOL Jumpers are OFF
EC-Smart-Vue Sub-Network Bus – Cat 5e
Cable with RJ-45 Connectors
For EC-Smart-Vue:
• Last daisy-chained EC-Smart-Vue:
EOL Jumper is ON
• All other EC-Smart-Vue:
EOL Jumpers are OFF
Figure 15-3:
Setting the EOL Terminations when Allure
EC-Smart-Vue Sensors are used with ECx-400 Series
IO Extension Modules
ECx-400 Series devices and Allure EC-Smart-Vue sensors are factory-
set with the EOL set to OFF by default.
16. Setting the Allure EC-Smart-Vue Subnet ID
Controllers can be commissioned with an Allure EC-Smart-Vue sensor.
The default Subnet ID for an Allure EC-Smart-Vue is 1. To commission
a controller, the Allure EC-Smart-Vue's Subnet ID must be set to 1. If
the Allure EC-Smart-Vue's Subnet ID has been set to another value
(for example, the display flashes error code 1 with the Bell icon when
the Allure EC-Smart-Vue sensor is connected to a controller for
commissioning), change the Subnet ID to 1 as follows:
1. Connect an Allure EC-Smart-Vue sensor to the controller with a Cat
5e patch cable. Wait for the Bell icon and the number 1 to flash on
the display.
2. Press and hold the Menu button
password menu. 10000 is shown on the display.
Screen timeout: 15 sec
PASSW
3. Press the down button
default password).
Screen timeout: 15 sec
PASSW
4. Press the Menu button
submitting the password, the GEN CFG menu appears on the
display.
with an ECB-600 / ECL-600 Series Controller Only
2-Wire Shielded
EOL OFF
EOL ON
ON
OFF
for 5 seconds to enter the
OR
to set the number to 9995 (this is the
to submit the password.
Upon
5/10
