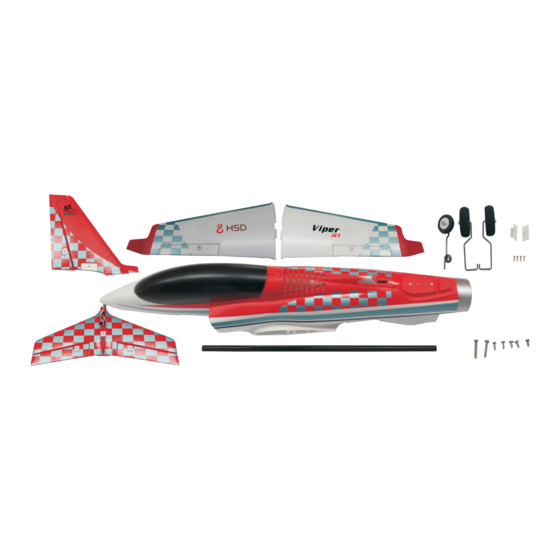

- Page 1 ViperJET 75mm EDF...
-
Page 2: Safety Precautions And Warnings
Each product from HSD has unique functions that users will need to fully grasp step by step, as you will complete the assembly. It is necessary to assemble and test the product strictly in accordance with HSD's standards. -
Page 3: Table Of Contents
C O N T E N T S Box Contents..................01 S p e c i f i c a t i o n s ..............0 1 . -
Page 4: Specifications
Attention EDF jets require Li-PO batteries with a high discharge rating (C rating) for increased safety and optimal performance. We recommend using Li-Po batteries with a minimum of 40C or above. Box Contents Specifications 1100mm 75mmEDF Brushless Outrunner Motor, 3060/2600KV(4S) 3060/2000KV(6S) Installed Installed... -
Page 5: A S S E M B L
Assembly PA 3*15MM 1pcs PA 3*18MM 1pcs PA 2.6*6MM 1pcs Connect the servo link and fix the screws PA 3*5MM 2pcs Connect the servo link and fix the screws Fixed with screws M3*3MM 1pcs PA 2.6*6MM 2pcs PA 2.6*6MM 4pcs Assembly of your Viper is completed. -
Page 6: Control Horn And Servo Arm Settings
Control Horn and Servo Arm Settings The table to the right shows the factory settings for the control horns and servo arms.Fly the aircraft at factory settings before making changes. After flying y ou may choose to adjust the linkage positions for the desired control response.See the lower table. Horns Arms Elevator... -
Page 7: Control Direction Test
Control Direction Tests Assemble the aircraft and bind your transmitter to the receiver before performing this test. After binding a transmitter to the aircraft receiver,set the trims and sub-trims to 0,then adjust the clevises to center the control surfaces. Move the controls on the transmitter to make sure the aircraft control surfaces move in the proper direction. Transmitter Aircraft Reaction Command... -
Page 8: C L E V I S I N S T A L L A T I O
Clevis Installation * Adjust the push-rod and clevis as necessary. *Carefully adjust the clevis so that it creates a centered surface when attached to the control horn. Control Surface Centering After assembly and transmitter setup,verify that the control surfaces are centered.If the control surfaces are not centered, mechanically center the control surfaces by adjusting the linkages. -
Page 9: Cg Location
CG LOCATION +10mm +10mm -10mm -10mm 85MM +10mm -10mm Installation of battery: Recommended battery location for Recommended battery location for 4S 3300mAh (350g) Li-Po. 6S 3300mAh (550g) Li-Po. -
Page 10: Accessories
Accessories HS D A 75- T 0 1 HSD A 7 5-T 0 2 H SDA 7 5 -T0 3 H S D A75 - T 04 H SDA7 5 -T05 HS D A 75- T 0 113 5 HSD - T B02... - Page 11 Accessories HS D - TA0 1 HS D - TA0 2 HSD- H E 01 H S D-T B 0 1 HSD- T A03 H SDA 7 5 -J0 4 H S DA7 5 - K02 H S D A75 - K 01...
-
Page 12: Tro U B Le S H O O Tin
Cause Problem Solution 1. Charge the batteries 1.Battery is not fully charged 2.Install a full charged battery 2.Transmitter battery low 3.Check for connection between the 3.Motors not connected ESC and Motor does 4.Replace motor 4.The motor is damaged not turn 5.Consult Radio manual and 5.Reciever is not bound to Tx through bind procedure again... -
Page 13: Model Flying Precautions
MODEL FLYING PRECAUTIONS - Select your flight area carefully. Always choose an open space that is unobstructed by trees and/or buildings and away from crowded area.Avoid flying in area with roads,electricity/telephone poles or wires and water nearby or within close proximity to full size air traffic. - Do not fly this model in poor weather, high winds, low visibility, extreme temperatures, rain and storms. - Page 14 ViperJET 75mm EDF Distributed by: Banana Hobby California,USA Call or Text(626) 629-8243 WWW.bananaHobby.com...
