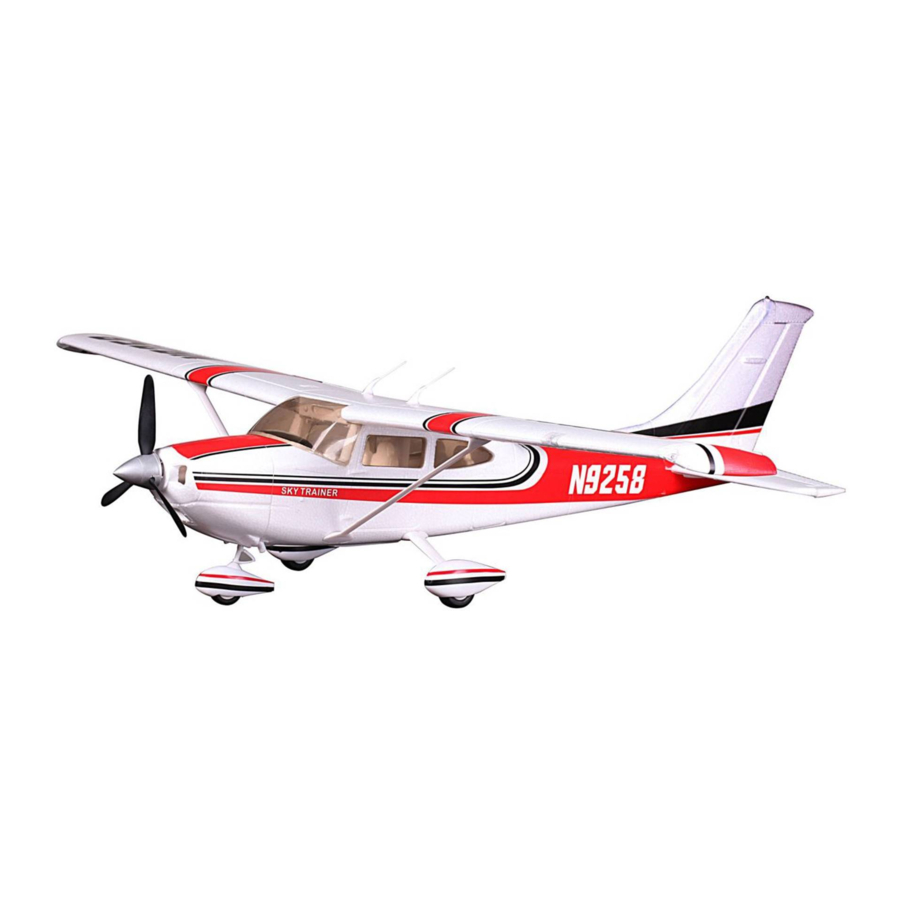

HSD Sky Trainer Manual

1400mm

Table of Contents

Need help?

Do you have a question about the Sky Trainer and is the answer not in the manual?

Page 2: Model Flying Precautions
Each product from HSD has unique functions that users will need to fully grasp step by step, as the assembly will be completed by you.
Page 3 C O N T E N T S Problem Cause Solution 1. Charge the batteries 1.Battery is not fully charged 2.Install a fully charged battery 2.Transmitter battery low 3.Check for connection between the 3.Motors not connected ESC and Motor does 4.Replace motor 4.The motor is damaged not turn...
Page 4: Box Contents
Specifications Control Surface Centering Throttle Range Setting After assembly and transmitter setup,verify that the control surfaces are (Throttle range should be reset whenever a new transmitter is being used) 1400MM centered.If the control surfaces are not centered, mechanically center the control surfaces by adjusting the linkages.
Page 5 Assembly CG:60MM...
Page 6 Assembly Assemble the aircraft and bind your transmitter to the receiver before performing this test. After binding a transmitter to the aircraft receiver,set the trims and sub-trims to 0,then adjust the clevises to center the control surfaces. Move the controls on the transmitter to make sure the aircraft control surfaces move in the proper direction. Small...
