VocoPro CASAMAN Owner's Manual

VocoPro CASAMAN Owner's Manual

Professional digital karaoke mixing amplifier
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

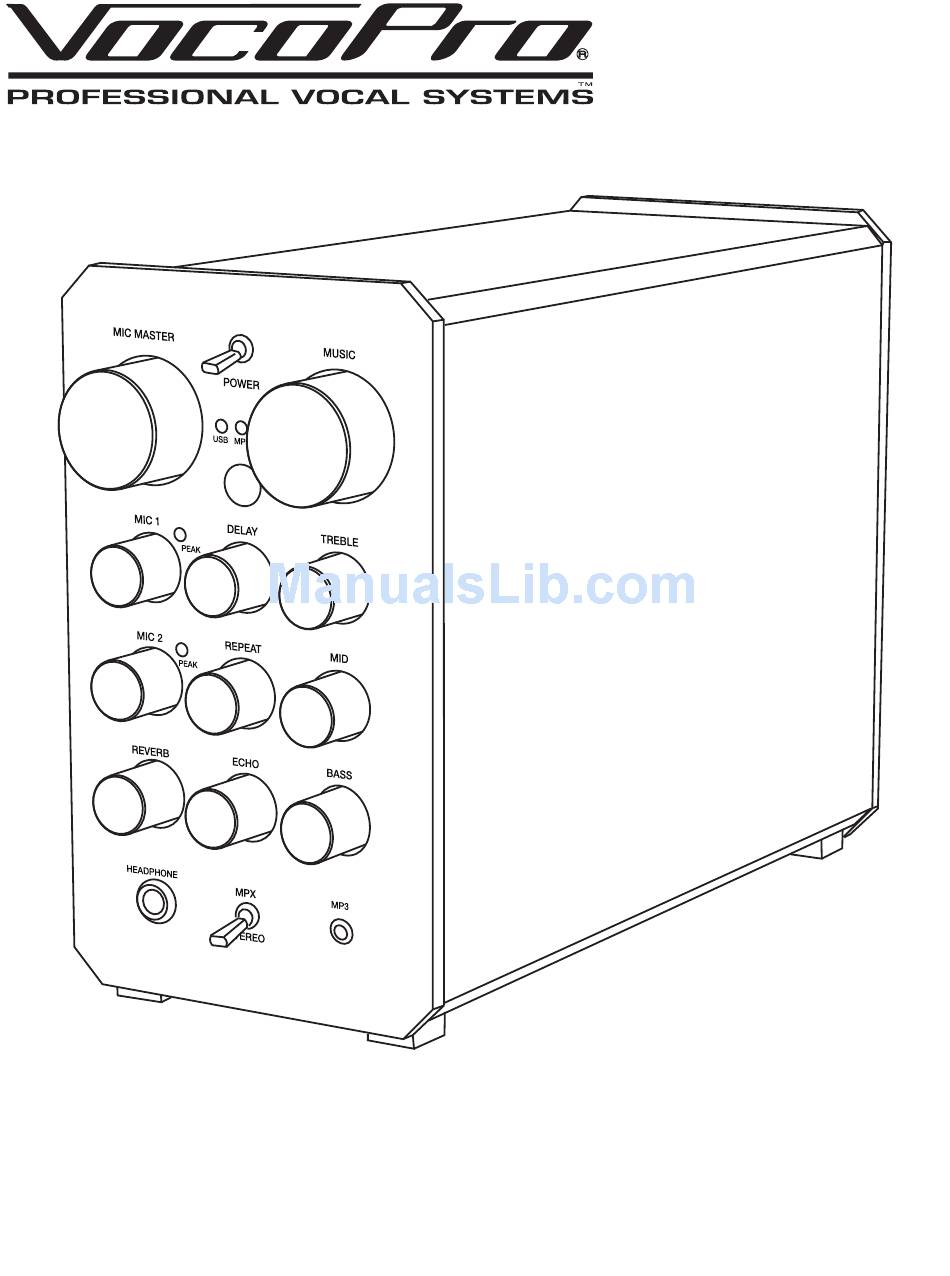

CASAMAN
Professional Digital Karaoke Mixing Amplifier
o
w
n
e
r
'
s
m
a
n
u
a
l

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CASAMAN and is the answer not in the manual?

Questions and answers

Related Manuals for VocoPro CASAMAN

Summary of Contents for VocoPro CASAMAN

  • Page 1 CASAMAN Professional Digital Karaoke Mixing Amplifier ’...

  • Page 2: Table Of Contents

    Table of Contents Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . 3 FCC Information .

  • Page 3: Safety Instructions

    Safety Instructions 8. Ventilation - The appliance should be situated so its location does not interfere with its proper ventilation. CAUTION For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the RISK OF SHOCK ventilation slots.

  • Page 4: Fcc Information

    1. To ensure the finest performance, please read this requirements. Modifications not expressly approved by manual carefully. Keep it in a safe place for future Vocopro may void your authority, granted by the FCC, to reference. use this product. 2. Install your unit in a cool, dry, clean place - away from 2.

  • Page 5: Welcome

    And while you're there don't forget to check out our Club VocoPro for Karaoke news and events, chat rooms, club directories and even a KJ Service directory! We look forward to hearing you sound like a PRO, with VocoPro, the singer’s ultimate choice. FOR YOUR RECORDS Please record the model number and serial number below, for easy reference, in case of loss or theft.

  • Page 6: Listening For A Lifetime

    Now itʼs time to consider how you can maximize the fun and excitement your equipment offers. VocoPro and the Electronic Industries Associationʼs Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion and, most importantly, without affecting your sensitive hearing.

  • Page 7: Getting Started

    Olufsen®, the Casaman provides audiophile sound quality while weighing in at under 6 lbs . Don’t let the light weight fool you; the Casaman packs a serious punch . We are very proud of our new amplifier and think you will be too .

  • Page 8: Connection Diagram

    Getting Started Connection Diagram AC OUTLET Laptop SPEAKERS Wireless Microphone Port Front Panel MIC MASTER MUSIC POWER MIC 1 DELAY TREBLE PEAK MIC 2 REPEAT PEAK REVERB ECHO BASS Laptop, Smartphone or MP3 Player HEADPHONE STEREO...

  • Page 9: Features At A Glance

    Features at a Glance Face Panel Power Switch USB/MP3/AUX LEDs Turns unit off/on. Indicates what input source is being used. IR Sensor MUSIC MASTER MIC MASTER Recieves Remote Control Mic Master Commands. Adjusts the overall POWER microphone volume. Note: Mic Master will affect wired and Music Master wireless microphones...
  • Page 10 Features at a Glance Face Panel Cont. MUSIC MASTER MIC MASTER POWER Delay Treble Adjusts the high-end Adjusts the length of time between echoes. frequencies of the input music. MIC 1 DELAY TREBLE To accentuate the high range, PEAK turn clockwise. To attenuate, turn counter clockwise.

  • Page 11: Back Panel

    RCA jacks. Outputs Low-end frequencies via a mono RCA jack. Stereo Music Expansion Port Plug in Expansion Modules to increase the Casaman capabilities. Note: Expansion Modules sold Used to connect to separately. Please check PC or MAC. *See Stereo Music Vocopro.com for...

  • Page 12: Input Select Buttons

    Volume - lowers the volume of the music. Microphone Volume Buttons Mic + raises the volume of the microphones. Mic - lowers the volume of the microphones. Applies to both wired and wireless mics connected to the Casaman.

  • Page 13: Getting Connected

    Casaman’s back panel . NOTE: The Casaman is power configuration is factory set. For customers on a 220V power grid, make sure that your Casaman has been configured for 220V use. You can check MIC MASTER MUSIC this on the top panel power designation.
  • Page 14 Before we get into connecting speakers, there are two important issues to consider: speaker impedance and multiple speakers . The Casaman is rated to perform as low as 4Ω (ohms) . The Ω (ohms) rating is a measure of the speaker’s impedance . Basically, the rating tells you how much amplifier power will be passed through the speakers.

  • Page 15: Basic Operations

    “USB Audio Codec” as the primary output destination . PEAK Stereo Music - Use a music program to playback tracks and the audio will stream to the Casaman via the USB cable . Expansion Port Recording Audio from the Casaman.
  • Page 16 Basic Operations Installing a Stereo Expansion Module Locate the stereo expansion port. 2 . Remove the metal cover plate and locate the 6-pin ribbon cable inside. 3 . Firmly press the 6-pin ribbon cable into the 6-pin socket on the expansion module. 4 .
  • Page 17 Note: The wireless microphone signals will be mixed over any wired microphones that may be plugged into the Casaman. Note: Mic 1 & 2 volume knobs will affect both wired and wireless microphones plugged into the Casaman. If both are connected, the wireless microphone volume must be controlled from the wireless microphone module.

  • Page 18: Specifications

    Specifications INPUTS SENSITIVITY: Mic 1& 2 (Balanced)1.5mV/1K Ω (XLR Comb) AUX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3V/47K Ω (Ohms) (RCA Jack) MP3 .

  • Page 19: Troubleshooting

    Please refer to your Apple computer owner’s manual for detailed instructions on how to switch audio output/input settings. The settings that dictate where your computer sends audio needs to be changed to send it to the Casaman, which is listed as “USB Audio Codec” in the audio setting menu.
  • Page 20 CASAMAN Owner’s Manual © VocoPro 2014 v1.0.0818 www .vocopro .com...
