OWNER'S MANUAL

Table of Contents

Summary of Contents for VocoPro DA-7909RV

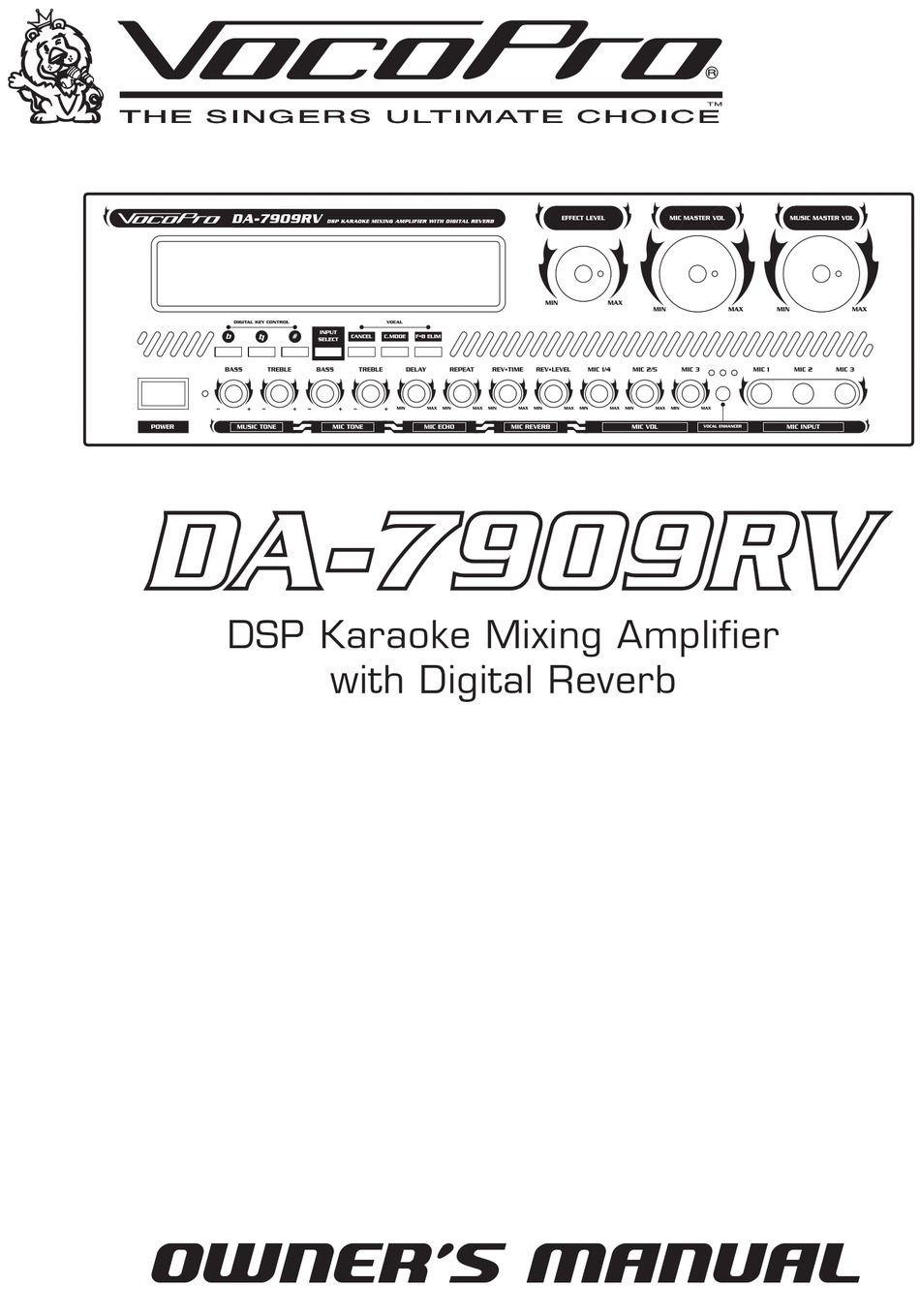

Page 1 �� ...
Page 2 Club VocoPro for Karaoke news and events, chat rooms, club directories and even a Service directory! We look forward to hearing you sound like a PRO, with VocoPro, your ultimate choice in Karaoke entertainment. Please record the model number and serial number below, for easy reference, in case of loss or theft.
Page 3: Table Of Contents
Table of Contents Introduction Safety Instructions Listening for a Lifetime FCC Information Features & Specifications Descriptions and Functions Front Panel Rear Panel Remote Getting Started Getting Started Getting Connected Operations Basic Operations Advanced Operations Troubleshooting 6 - 7 8 - 9...
Page 4: Safety Instructions
Safety Instructions CAUTION RISK OF SHOCK CAUTION: To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Only refer servicing to qualified service personnel. Explanation of Graphical Symbols The lightning flash & arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of danger.
Page 5: Listening For A Lifetime
Now it’s time to consider how you can maximize the fun and excitement your equipment offers. VocoPro and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level.
Page 6: Fcc Information
UNIT!: This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Vocopro may void your authority, granted by the FCC, to use this product. 2. IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables.
Page 7: Features & Specifications
Features and Specifications Features • 300W (RMS) and 600W (MAX) power output • 3 microphone inputs (¼”) with individual volume controls plus 2 additional ¼” inputs • DSP vocal Echo with Repeat and Delay controls • DSP vocal Reverb with Time and Level controls •...
Page 8: Front Panel
Front Panel �� 1. VFD Display Screen - Displays the amplifier’s operation status and settings 2.
Page 9: Front Panel
10. Power Switch - Turns the DA-7909RV On and Off. 11. Power LED - Indicates the DA-7909RV’s power status by lighting up when the power is on 12. Music Bass Control - Adjusts the bass for the music. Turn clockwise to increase and counter-clockwise to decrease.
Page 10: Rear Panel
Rear Panel �� 1. RS 232 Interface Jack - This jack is used by the factory in the event of future firmware upgrades.
Page 11: Rear Panel
Rear Panel �� 9. CD Input Level Control - Separate volume control for the CD input channel that controls the input volume for the audio device that is connected to the CD L/R RCA inputs.
Page 12: Remote
Remote Control 1. Memory Buttons - Program and select up to 4 custom effect settings. 2. Mute - Mutes the sound for the devices connected to the Audio inputs. Press once to turn MUTE on and again to turn MUTE off. 3.
Page 13: Getting Started
[1] Warranty Card �� Things to consider: • Place the DA-7909RV in a spot where the vents on top are not blocked by another machine or rack shelf. • Make sure there are no obstacles between the remote and the remote control sensor on the front of the DA-7909RV.
Page 14: Getting Connected
2. Connect the other end of the L/R (red & white) RCA cable to to one of the L/R RCA audio input channels on the rear panel of the DA-7909RV 3. For additional players follow steps 1 and 2 Connecting Video What you will need: •...
Page 15 Getting Connected Connecting a Pair of Speakers The DA-7909RV has 2 pairs of L/R “Banana Plug” speaker outputs, allowing you to connect and power up to 4 speakers. What you will need: • 2 unpowered speakers • 2 “Banana Plug” speaker cables 1.
Page 16 �� DA-7909RV Connected to Vocopro PV-802 �� ...
Page 17 • 1 L/R RCA audio cable 1. Connect one end of the L/R RCA cable to the PRE -OUT jacks on the rear panel of the DA-7909RV 2. Connect the other end of the L/R RCA cable to the L/R audio inputs on the mixer.
Page 18 TV/video monitor Connecting Microphones The DA-7909RV allows you to connect up to 5 microphones for vocals. There are 3 microphone inputs on the front panel, each with their own volume controls and then 2 additional backup microphone inputs on the rear panel that are also controlled by the Mic 1 & 2 volume controls on the front panel.
Page 19: Basic Operations
-- button to lower it. Adjusting the Music Tone The DA-7909RV has Bass and Treble tone controls for fine-tuning the overall music tone. This allows you to precisely adjust the tone before each performance to accommodate the room, stage and other factors that effect tone.
Page 20 2 on the front panel and mic input 5 on the rear panel. Adjusting the Mic Tone The DA-7909RV has Bass and Treble tone controls for fine-tuning the overall microphone vocal tone. This allows you to precisely adjust the tone before each performance to accommodate the room, stage and other factors that effect tone.
Page 21 Controlling the Vocal Echo Adding Echo to vocals gives them a more professional and unique sound. The DA-7909RV lets you adjust the Delay and Repeat for the echo effect. • REPEAT adjusts the interval repetition of the echo effect. As more REPEAT is applied to the ECHO effect, more echo intervals will occur prior to fading out.
Page 22 Controlling the Vocal Reverb Adding Reverb to the vocals gives them a more refined and pro- quality sound. The DA-7909RV lets you adjust the TIME and LEVEL for the reverb. • TIME adjusts how long the reverb holds out for.
Page 23: Advanced Operations
Locking/Unlocking the Tone and Effect Controls The DA-7909RV allows you to lock the Music Bass and Treble controls, Microphone Bass and Treble controls, Mic Echo controls and Mic Reverb controls to prevent them from being changed accidentally or without your consent.
Page 24 Advanced Operations Storing Custom Effects Settings (M1, M2, M3, M4) The DA-7909RV allows you to set up to 4 custom effects settings using the M1, M2, M3, M4 memory buttons on the remote control. Adjust the effects settings to your desired specifications.
Page 25 Advanced Operations Setting the Maximum Music Volume The DA-7909RV allows you to set the maximum volume level that the music can be turned to. 1. Press the C. MODE button on the front panel TWICE. 2. Use the MUSIC MASTER VOLUME control on the front panel to increase and decrease the maximum music volume which will be displayed on the display panel.
Page 26: Troubleshooting
• Make sure the Effect Level control on the front panel is turned up loud enough. The Remote Control Is Not Working • The DA-7909RV’s power is not on. • Make sure the batteries are inserted correctly and not out of power.
Page 27 Featured Vocopro Products Here are some of the other great Vocopro products featured in this manual. You can find more information at our website: www.vocopro.com VP-2100 PRO 2000W Professional Digital Switching Power Amplifier PV-802 Professional Stereo 400W Powered Vocal Speakers ��...
