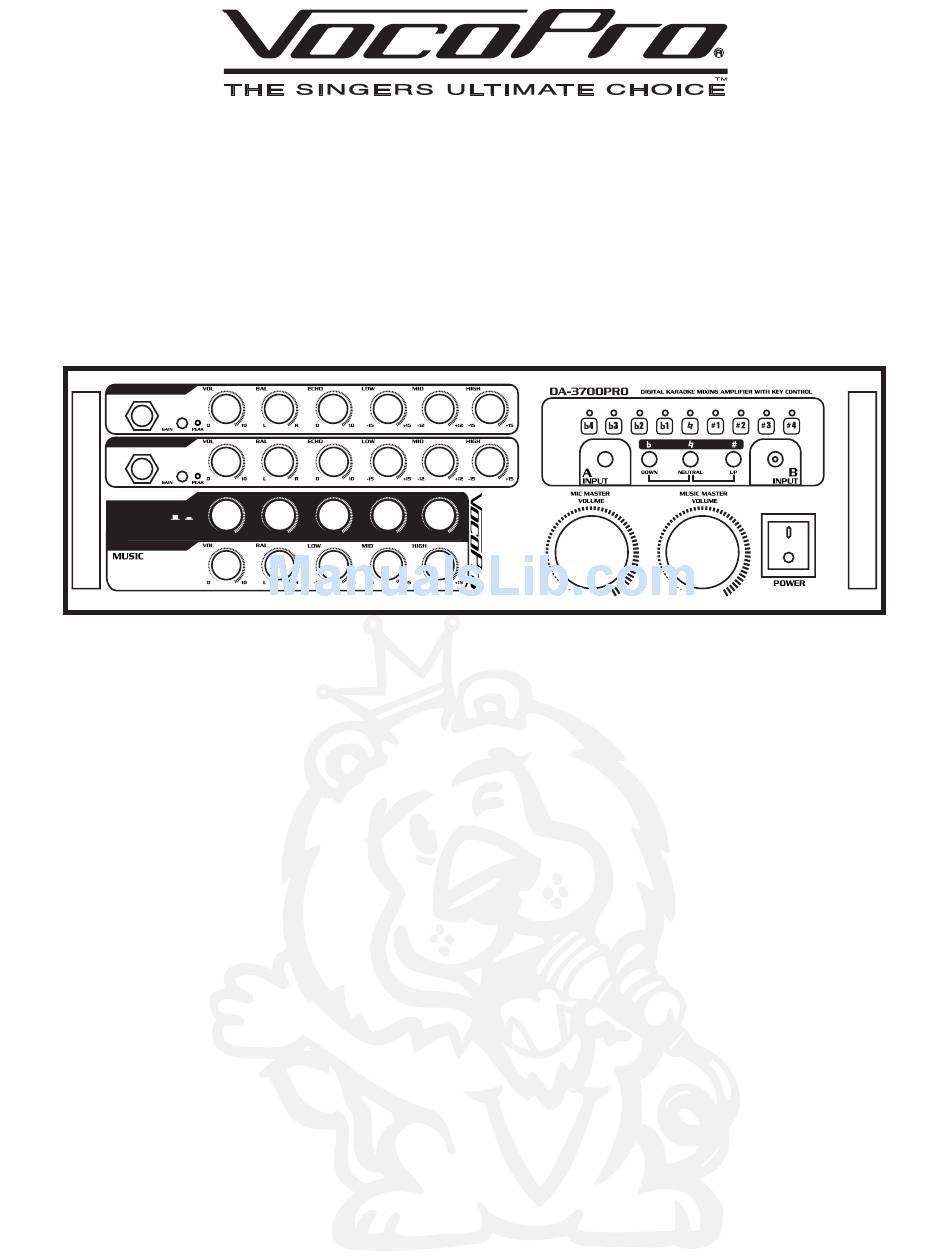

- Page 1 DA-3700 MIC 1 MIC 2 HIGH REPEAT ECHO MONO Digital Karaoke Mixing Amplifier with Key Control O W N E R ’ S M A N U A L DELAY...
-
Page 2: Table Of Contents
Table of contents Introduction Safety Instructions ... 1 FCC Information ... 2 Welcome ... 3 Listening for a Lifetime ... 4 Specifications and Features ... 5 Getting Connected CD/DVD player connection ... 6 TV/Display device connection ... 6 Amplifier, mixer and external sound system connections ... 7 External speaker connection ... -
Page 3: Safety Instructions
Safety Instructions CAUTION RISK OF SHOCK CAUTION: To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Only refer servicing to qualified service personnel. Explanation of Graphical Symbols The lightning flash & arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of danger. -
Page 4: Fcc Information
UNIT!: This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Vocopro may void your authority, granted by the FCC, to use this product. 2. IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables. -
Page 5: Welcome
Club VocoPro for Karaoke news and events, chat rooms, club directories and even a Service directory! We look forward to hearing you sound like a PRO, with VocoPro, your ultimate choice in Karaoke entertainment. Please record the model number and serial number below, for easy reference, in case of loss or theft. -
Page 6: Listening For A Lifetime
Selecting fine audio equipment such as the unit you’ve just purchased is only the start of your musical enjoyment. Now it’s time to consider how you can maximize the fun and excitement your equipment offers. VocoPro and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. -
Page 7: Specifications And Features
• 2-Way Binding Post Speaker Outputs • Remote Control • 10V-220V Compatible • Dimensions: 16” (W) x 14” (D) x 55” (H) VocoPro DA-3700 Digital Karaoke Mixing Amplifier with Key Control 120W + 120W at 4-Ohm 100W + 100W at 8-Ohm 65dB (mic on) 70dB (mic off) .0.5%... -
Page 8: Getting Connected
CD/DVD player to the VIDEO INPUT on the rear panel of the DA-3700PRO. TV/Display device connection The DA-3700 has two video inputs and two video outputs. Video inputs A and B correspond to the two input channels. The video that is being input into VIDEO input A will only play when input channel A is active. -
Page 9: Amplifier, Mixer And External Sound System Connections
You can connect directly to speakers using either MDP (banana plug) speaker cables or standard speaker wires. Be sure to correctly match the polarities (+/-). Connect speakers rated no lower than 4-Ohms to the DA-3700 Pro. Please do not try to connect more than one speaker per channel, as the load may exceed the amplifiers handling capacity, causing it to overload. -
Page 10: Mic(S) Connection
EFFECTS LOOP L or R OUT jack to the effects unit input. Then connect an RCA cable from the effects unit output, into the DA-3700’s L or R IN jack. Vocals The MIC INSERT jacks on the rear panel allow you to loop the vocals through an effects unit. -
Page 11: Front Panel
Front panel description MIC 1 MIC 2 ECHO MONO 1. MICROPHONE INPUT jacks – Connect your microphones to these inputs with 1/4” cables. 2. -20dB GAIN pads – Press pad to an inward position to decrease the microphone output’s gain by -20dB. Release pad to its outer position to have the microphone output revert back to NORMAL volume. - Page 12 Front panel description (cont.) MIC 1 MIC 2 ECHO MONO 11. ST/MO (Stereo/Mono) - Use this button to switch between the two echo output modes, STEREO and MONO. 12. MASTER ECHO VOLUME control – This control increases/decreases the MASTER VOLUME LEVEL of the ECHO effect available to the MIC 1, 2-3 channels.
-
Page 13: Rear Panel
Digital Key Controller on the DA-3700PRO. 6. VOLUME RESET switch - The master MIC and MISIC volumes on the DA-3700 are programmed to reset back to zero every time the machine’s power is turned off. The VOLUME RESET switch allows you to turn this feature off. When this switch is in the ON position, the volume will reset whenever the machine is turned off and when in the OFF position, the volume will stay the same when the machine is turned off. -
Page 14: Remote Control
Remote control description 1. INPUT SELECTOR buttons - Use these buttons to toggle between the two available input channels A and B. 2. DIGITAL KEY CONTROL - Use these buttons to raise or lower the musical key of your source music (CD/DVD player). The LEDs indicate where the current key of the music is. -
Page 15: Basic And Advanced Operations
Digital Key Control enables you to adjust the key of the source music (CD/DVD player) to fit the vocal range of the person who is singing. The key can be adjusted by using the key control buttons on the DA-3700’s front panel, the remote control or from a Remote Key Control microphone. -
Page 16: Advanced Operations
Balancing the Music with the Vocals The DA-3700 Pro has MASTER, HIGH, MID and LOW controls for both the music and the microphone levels, which enables you to adjust your mix levels with precision, resulting in a professional-sounding mix. If you find that the music is too loud, simply adjust the MUSIC VOLUME control. -
Page 17: Troubleshooting
Troubleshooting PROBLEMS No sound coming from selected music source There are no graphics on the screen. High pitched squealing occurs when using the microphone No microphone output is present CAUSE Input Selector is set incorrectly Music Master Volume control is set to minimum The Effect Loop bars are either not inserted or inserted... - Page 18 THE SINGER'S ULTIMATE CHOICE™ © Vocopro 2005 V 1.0 WWW.VOCOPRO.COM...
