Summary of Contents for VocoPro CDG-6000RV

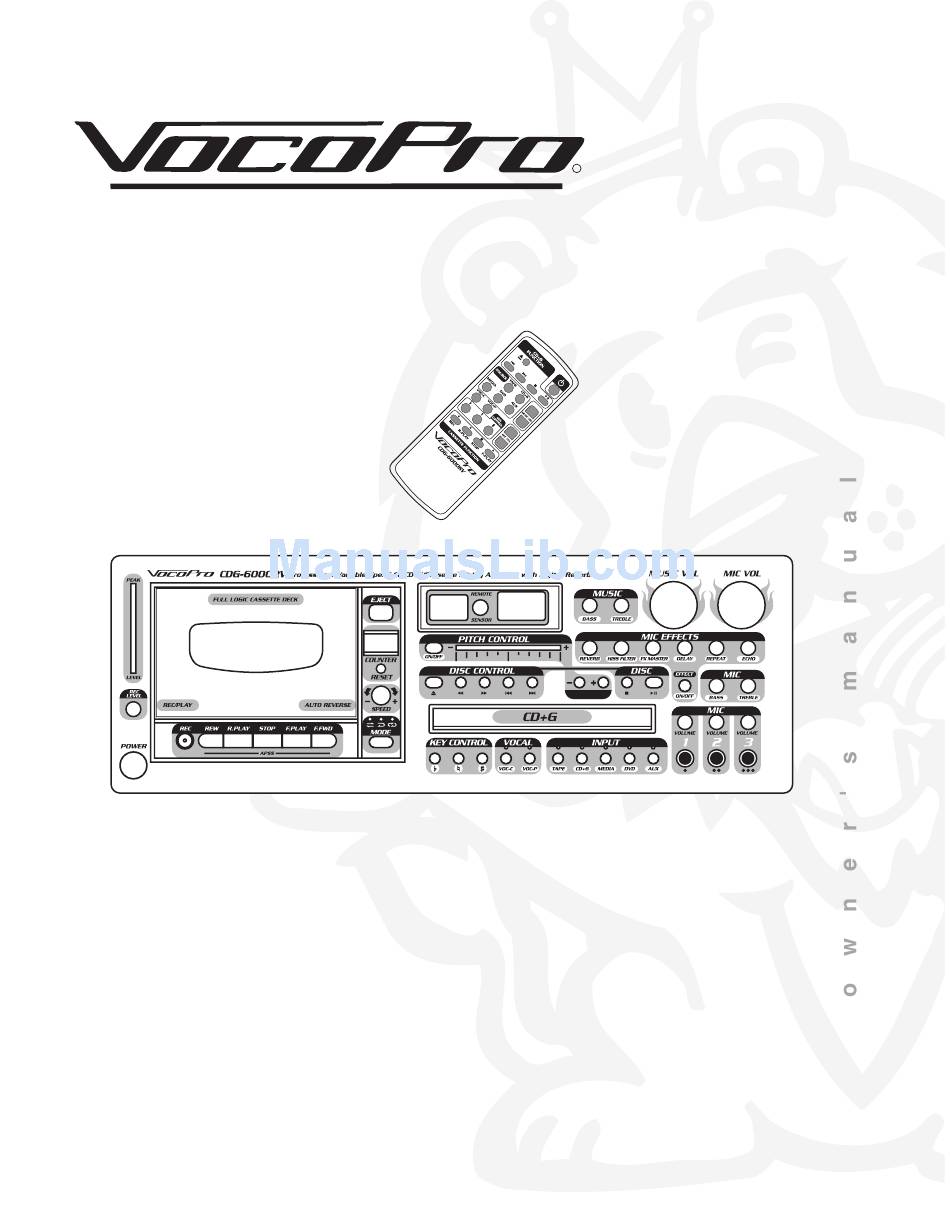

- Page 1 THE SINGER'S ULTIMATE CHOICE CDG-6000RV CDG-6000RV Professional Variable Speed CD/CD+G/Cassette Professional Variable Speed CD/CD+G/Cassette Mixing Amplifier with Digital Reverb Mixing Amplifier with Digital Reverb...
-
Page 2: Table Of Contents
Safety Instructions ...2-3 Welcome... 4 Listening for a Lifetime ... 5 Before Getting Started ... 6 CDG-6000RV Features... 7 Getting Connected Connecting Input Source Players ... 8 Connecting TV’s/Monitors ... 9 Connecting an External Effects Device ... 10 Connecting Speakers... 11 Descriptions and Functions Front Panel...12-13... -
Page 3: Safety Instructions Safet
Safety Instructions CAUTION RISK OF SHOCK CAUTION: To reduce the risk of electric shock, do not remove cover (or back). No user- serviceable parts inside. Only refer servicing to qualified service personnel. Explanation of Graphical Symbols The lightning flash & arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of danger. -
Page 4: Fcc Information (U.s.a.)
UNIT!: This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Vocopro may void your authority, granted by the FCC, to use this product. 2. IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables. -
Page 5: Welcome
Club VocoPro for Karaoke news and events, chat rooms, club directories and even a KJ Service directory! We look forward to hearing you sound like a PRO, with VocoPro, the singers ultimate choice. Please record the model number and serial number below, for easy reference, in case of loss or theft. These numbers are located on the rear panel of the unit. -
Page 6: Listening For A Lifetime
Now it's time to consider how you can maximize the fun and excitement your equipment offers. VocoPro and the Electronic Industries Association's Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion and, most importantly, without affecting your sensitive hearing. -
Page 7: Before Getting Started
CDG-6000RV to ensure best performance. Unpacking the CDG-6000RV Carefully remove the CDG-6000RV from its carton. It is recommended that you store the original packaging materials in case you need to ship this equipment for any reason. -
Page 8: Cdg-6000Rv Features
CDG-6000RV Features Features: • 125W + 125W Maximum Power Output at 8 Ohms • 13-Step Digital Key Controller • Built-In Variable Speed Cassette Deck with Record Level Control and Led Meter • Built-In Variable Speed, Skip-Free, Shock-Resistant CD/CD+G Player • Six Microphone Inputs with Three Channel Volume Controls •... -
Page 9: Getting Connected
Connecting input source players to the CDG-6000RV The CDG-6000RV has stereo paired RCA inputs labeled for RCA stereo audio ouptut from DVD, MEDIA and AUX players and two VIDEO inputs for corresponding video signals from DVD, and MEDIA players. The device associations are for reference only. -
Page 10: Connecting Tv's/Monitors
1. Connect an RCA style video cable from a VIDEO OUTPUT on the CDG-6000RV to the VIDEO INPUT jack on your TV or other monitor. You may need to manually switch your TV to video mode, while some models automatically switch when a video signal is detected. -
Page 11: Connecting An External Effects Device
Getting Connected cont. Connecting an External Effects or EQ Device to the CDG-6000RV The CDG-6000RV has EFFECT LOOP INPUT and OUTPUT jacks that can be used to add additional effects to the audio signal which is sent to the speakers. -
Page 12: Connecting Speakers
6000RV is disconnected from the power source. • Do not let the bare speaker wires touch each other or another metal part of this unit. This could damage the CDG-6000RV and/or the speakers. Determining the proper way to connect the speaker cables: The speaker cable is a pair of insulated cables running side by side. -
Page 13: Descriptions And Functions
2. KEY CONTROL DISPLAY - Displays key control setting information. 3. REMOTE SENSOR - When operating the CDG-6000RV with the REMOTE CONTROL, direct the REMOTE towards this SENSOR within 23 feet. Maintain a line of sight between REMOTE and REMOTE SENSOR clear of obstacles to prevent signal deflection. - Page 14 Front Panel Descriptions and Functions cont. 10. MIC EFFECTS - Add effects to your vocal output to give it a professional edge. REVERB KNOB - This controls the overall level for the REVERB effect on all three MIC INPUTS. This effect gives a spacious or ambient feeling that works great with vocals.
- Page 15 Front Panel Descriptions and Functions cont. �� �� �� DISC CONTROL 11. OPEN/CLOSE Button - Opens and closes the disc tray PREV and NEXT Buttons - Press PREV to jump to the previous track and NEXT to jump to the next track.
- Page 16 Front Panel Descriptions and Functions cont. �� 16. VOCAL CANCEL/VOCAL PARTNER - VOC/C: Vocal Cancel key. This feature is designed to work only with “multiplex” karaoke discs. By pressing this key the “guide” or “lead” vocal on the multiplex disc will be removed throughout the entire song. To hear the guide/lead vocal press the key again.
-
Page 17: Cassette Deck Controls
Cassette Deck Descriptions and Functions � � 1. LEVEL KNOB - When recording to the cassette deck, use this control to increase or decrease the incoming signal level for precise recording results. 2. LEVEL INDICATOR - This LED meter reflects the record signal level in “real-time” to allow for accurate record level adjustment. -
Page 18: Rear Panel
10. MEDIA INPUT - Connect any additional media player or audio output device to this audio/video RCA connection. 11. AUDIO PRE-AMP OUTPUT - Output the audio from your CDG-6000RV via RCA audio cables. 12. VIDEO OUTPUT - Output the video from your CDG-6000RV via RCA video cables. -
Page 19: Remote Control
This button allows you to select between TAPE, CD+G, DVD, 2. SOURCE - MEDIA and AUX player source to the CDG-6000RV. This allows the CDG-6000RV to differentiate between all the related sources and AUDIO INPUT options available on the back panel. -
Page 20: Cassete Deck Recording
Cassette Deck Recording You can record yourself singing with a Karaoke CD/CD+G track for demos, practicing or just plain fun. 1. Select the desired “track” (song), and make sure a microphone is connected. Also set the mic echo, bass and treble settings now if they need to be changed. 2. -
Page 21: Specifications
CDG-6000RV Specifications MAX POWER OUTPUT (1KHz, 8Ω) ...AC 120V/230V SWITCHABLE TOTAL HARMONIC DISTORTION ...0.05% (1 KHz, 60W, 8Ω) AUDIO MICROPHONE ...2.5mv/10k Ohms BGM/DVD/CD/AUX ... BGM/DVD/CD/AUX ... BGM/DVD/CD/AUX VIDEO DVD/ AUX / CDG ...1V P-P/75 Ohms FREQUENCY RESPONSE MIC ...40Hz–15kHz ±3db MUSIC ...20HZ-20KHz ±3db... -
Page 22: Troubleshooting
The remote control is not working. The recording level is too low. Solution • Make sure the CDG-6000RV is set to the correct input. • Make sure the volume is turned up. • Make sure everything is connected firmly and properly. - Page 23 Notes...
- Page 24 � �� ��� �������� �������� ������ CDG-6000RV Owner’s Manual © VocoPro 200 VocoPro 2008 8 Version 1.0 www.vocopro.com...
