- Page 1 RS-100 Owner’s Manual...
- Page 2 (electronic, mechanical, photocopying, recording or otherwise) without the prior written permission of Vitus Audio. Any person who does any unauthorized act in relation to this publication may be liable to criminal prosecution and civil claims for damages.
-
Page 3: Table Of Contents
2. connecting 7. pictures RS-100 rear panel ..10 RS-100 Front ... 23 Connecting the RS-100 ..10 RS-100... -
Page 4: On A Personal Note
Certificate Model: RS-100 Product ID/Serial __________________________________ Product Build Date __________________________________ Signed __________________________________ All products details, specifications and measurements are recorded for your RS-100 and kept by Vitus Audio. RS-100 | Version 1... -
Page 5: From The Creator
Vitus Audio push the limits and explore without “loosing” the nerve RS-100 power amplifier, we the unexplored. As a result in the music which often is are sure you will enjoy it for of this, many of the solutions a drawback of many high many years to come. -
Page 6: About This Manual
About this manual Introduction to the Reference Series This is your RS-100 owner’s The Vitus Audio Reference manual. The following pages Series is a true high-end series will describe, as clearly as of products, which is build on possible, how to get your RS- our true dedication to neutral 100 operating fast and simple. -
Page 7: Turning The Rs-100 On And Off
Turning the RS-100 on and off. Always turn on the products beginning from the source: CD player a pre-amplifier a power amplifier. Always turn off your products in reverse order: Power amplifier a pre-amplifier a CD player. This amplifier is VERY heavy –... -
Page 8: Getting Started
Now remove the side protective foam, this will make it easier Foam Sides to grab hold of the RS-100. 6 pieces Two people carefully lift the amplifier out of the box, and put it directly onto the floor. -
Page 9: Rs-100 Functions Of The Front Panel

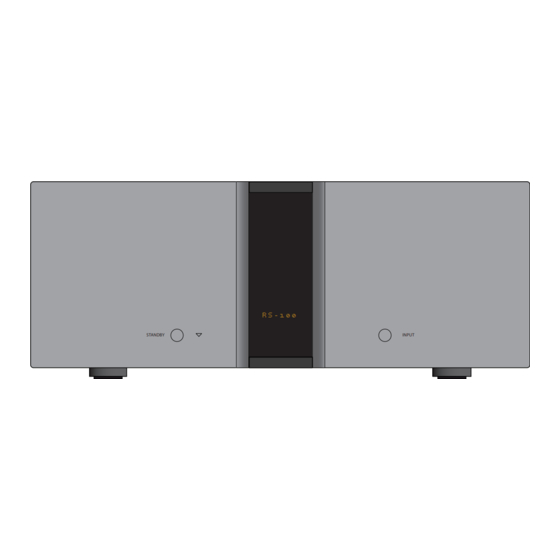

1. getting started RS-100 Functions of the front panel R S - 1 0 0 STANDBY INPUT RS-100 Front panel. Figure 6 INPUT. STANDBY. Press. Puts the RS-100 to standby. Choose between In this mode the controls of input 1 and input 2 the RS-100 are deactivated. -
Page 10: Connecting
2. connecting RS-100 rear panel Connecting the R S-100 Outputs Place the RS-100 on its shelf. Speaker left Connect all the sources to the Speaker out inputs of the RS-100, (labelled Speaker right INPUT 1 and INPUT 2 on the Speaker out rear panel.) - Page 11 To prevent re and shock To prevent re and shock hazard, do not expose this device hazard, do not expose this device to rain and moisture to rain and moisture RS-100 Rear panel. Figure 5 Fuse Ground XLR in RCA in...
-
Page 12: Operation & Service
There are potentially contain no user serviceable dangerous voltages present parts except from the mains inside. Should your RS-100 fuse. Should your RS-100 show show signs of malfunction, signs of malfunction, please then please contact your contact your dealer or Vitus dealer or Vitus Audio. -
Page 13: Mains Fuse
For an explanation of how to In case of malfunction the replace the fuse see chapter 3 unit must be returned to Vitus “replacing a blown fuse”. Audio for repair. RS-100 | Version 1... -
Page 14: Replacing A Blown Fuse
Pull the fuse carrier out. There is a spare fuse Take the blown fuse out of available in the fuse carrier. the fuse carrier and throw it away. RS-100 | Version 1... - Page 15 3. operation & service Flip the spare fuse out using Place the spare fuse in the a pointy object.. fuse carrier and click the fuse in place. Push the fuse carrier back into the machine. RS-100 | Version 1...
-
Page 16: Specifications
4. specifications RS-100 Measurements Front panel: Anodized Aluminium 435 mm Body: Powder coated Aluminium Total weight: 40 KG Figure 2 Device overview RS-100 | Version 1... -
Page 17: Rs-100 Specifications
4. specifications RS-100 Specifications Speaker Speaker INPUT OUTPUT Analog Analog Right Left Available Available Sensitivity 0,7 V RMS 1,4 V RMS Impedance 75 kΩ 75 kΩ Power W (8/4 ohm) 300/600 300/600 Impedance 100KΩ 100KΩ Frequency response +800kHz +800kHz Slew rate 35V/ μs... -
Page 18: Appendix
5. appendix Connecting devices 1 The RL-101 is connected to an RS-100 and to a Home Theater. The RS-100 is powering the speakers. The Media Center is connected to an input with a fixed volume. This means that the volume... -
Page 19: Connecting Devices 2
RCD-100. The RCD-100 is used as a DAC. The RI-100 is powering the hi- and mid-tones. The RS-100 is connected to the PRE-OUT of the RI-100. The RS-100 is powering the bass Units Speakers (Hi-Mid) Speakers (Low) -
Page 20: Warranty
Warranty Statement transported, or the defect (modified to fit Vitus Audio) is due to the product being 3. REMEDY repaired or tampered with by In the event the above 1. - Page 21 AVA Group A/S demo equipment needing original box, and returned to Sandgaardsvej 31, Birk warranty service must be Vitus Audio or an authorized DK7400 Herning packed in its original box Vitus Audio repair center by Denmark and returned to Vitus Audio the customer at his or her sole Att.: Customer Service...
- Page 22 In the unlikely event of service required beyond the capabilities of the importer, Vitus Audio will fulfill the conditions of the warranty. Such products must be returned at the owner’s expense to the Vitus Audio...
-
Page 23: Pictures
7. pictures RS-100 Front Picture 2 RS-100 Front RS-100 | Version 1... - Page 24 Handcrafted in Denmark AVA Group A/S (Vitus Audio), Sandgaardsvej 31, DK-7400 Herning, Denmark, Phone: +45 9626 8046, Fax: +45 9626 8045 e-mail: info@vitusaudio.com, web site: www.vitusaudio.com...
