Page 1: User Manual

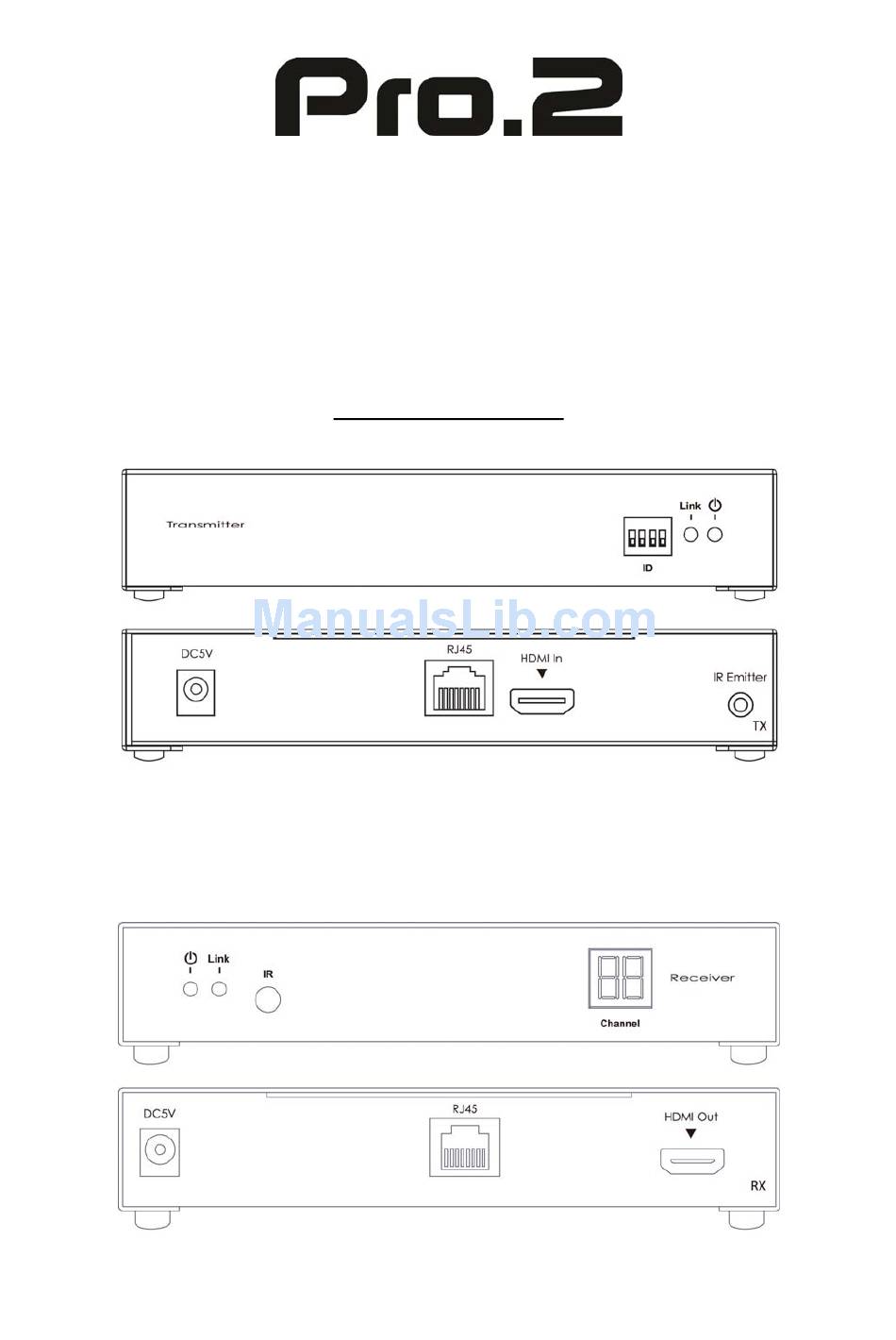

HDMI Over CAT6 with IR HDMIIPLR User Manual Transmitter Receiver www.pro2.com.au... - Page 2 Notice PRO2 reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice. © 2012 PRO2, All Rights Reserved. All trademarks are the property of their respective companies. Rev × A...
-
Page 3: Table Of Contents
CONTENTS 1. Introduction 2. Features 3. Transmitter Unit Panel Layout 4. Transmitter Unit Panel Descriptions 5. Receiver Unit Panel Layout 6. Receiver Unit Panel Descriptions 7. Remote Control Panel Layout & Descriptions 8. Connecting and Operating HDMI Over CAT6 Extender with IR 9. -
Page 4: Introduction
The HDMIIPLR HDMI Over CAT6 Ethernet Extender with IR sends HDMI signals over just one 100Ohm CAT6 cable -- up to 330 feet away. The HDMIIPLR HDMI Over CAT6 Extender supports HDMI 1.3 with Full HD 1080p resolution. DVI-D Computer video can also be transmitted... -
Page 5: Features
FEATURES Flexible extension of high-bandwidth HDMI 1.3 Audio and video are transmitted digitally over the 100Ohm CAT6 cable for lower signal loss Single Link Range: 1080p/60 and 1920x1200. Compliant with HDMI 1.3, HDCP 2.0 and DVI1.1 standards ... -
Page 6: Transmitter Unit Panel Layout
TRANSMITTER UNIT PANEL LAYOUT Front Panel Dip Switch Power LED Link LED Back Panel Power Input port RJ45 Port HDMI Input port IR Emitter Side Panel... -
Page 7: Transmitter Unit Panel Descriptions
TRANSMITTER UNIT PANEL DESCRIPTIONS 1. Power LED This LED indicator will activate once the included 5V DC power adapter has been properly connected between the Transmitter unit and an open wall power socket. 2. Link LED This LED indicator will activate once Cat 6. cable has been properly connected between the Transmitter unit and Receiver unit. -
Page 8: Receiver Unit Panel Layout
RECEIVER UNIT PANEL LAYOUT Front Panel Power LED IR Extender LED Display Link LED Back Panel Power Input port RJ45 Port HDMI output port Side Panel Reset... -
Page 9: Receiver Unit Panel Descriptions
RECEIVER UNIT PANEL DESCRIPTIONS 1. Power LED This LED indicator will activate once the included 5V DC power adapter has been properly connected between the Receiver unit and an open wall power socket. 2. Link LED This LED indicator will activate once Cat 6. cable has been properly connected between the Transmitter unit and Receiver unit. -
Page 10: Remote Control
REMOTE CONTROL PANEL LAYOUT & DISCRIPTIONS Front Panel Press to switch Press to switch source channel source channel downward upward 1. Downward Selection Button This button allows user to switch source channel downwardly (from source 16 to source 1). By long pressing the button, source will be changed in a short time. -
Page 11: Connecting And Operating
CONNECTING AND OPERATING How to Connect the HDMIIPLR HDMI Over CAT6 Extender One Source to One Display Function Connect one HDMI Cable between the HDMI output port of source device and the HDMI input port of Transmitter unit Connect one HDMI Cable between the HDMI input port of display device and the HDMI output port of Receiver unit. - Page 12 CONNECTING AND OPERATING How to Connect the HDMIIPLR HDMI Over CAT6 Extender One Source to Many Displays Function Connect one HDMI Cable between the HDMI output port of source device and the HDMI input port of Transmitter unit Connect one 100Ohm CAT6 cable between the RJ45 port of transmitter and input port of Gigabit Ethernet switch hub.
- Page 13 CONNECTING AND OPERATING How to Connect the HDMIIPLR HDMI Over CAT6 Extender Many Sources to Many Displays Function Connect one HDMI Cable between the HDMI output port of source device and the HDMI input port of Transmitter unit. Connect one HDMI Cable between the HDMI input port of display and the HDMI output port of Receiver unit.
-
Page 15: Specifications
SPECIFICATIONS Video Amplifier Bandwidth .............. 225 MHz Video Output ………………………..1080p/60 and 1920x1200 max. res Input DDC Signal ..5 Volts p-p (TTL); Input Video Signal: 1.2 Volts p-p HDMI Connector ............Type A, 19 Pin Female Link Connector ................RJ45 Shielded Power Supply ...... -
Page 16: Power Requirements
MECHNICAL Transmitter Dimensions (H-W-D) 162.3x114.85x30mm Weight 0.5kg Receiver Dimensions (H-W-D) 162.3x114.85x30mm Weight 0.5kg WARRANTY Limited Warranty 1 Year Parts and Labor ENVIRONMENTAL Operating Temperature +0 to +40° C (+32° to 104° F) Operating Humidity 10% to 85% (Non-condensing) Storage Temperature -20°... -
Page 17: Warranty
The liability of PRO2 with respect to any defective products will be limited to the repair or replacement of such products. In no event shall PRO2 be responsible or liable for any damage arising from the use of such defective products whether such damages be direct, indirect, consequential or otherwise, and whether such damages are incurred by the reseller, end-user or any third party. -
Page 18: Compliance
COMPLIANCE HDMIIPLR HDMI Over CAT6 Ethernet Extender have been tested for compliance with appropriate FCC and CE rules and regulations and are also RoHS compliant. The Power has been tested for compliance with UL, CE and CSA rules and regulations and is also RoHS compliant. - Page 19 Appendix A Setting Transmitter Channel There are 16 combinations for Dip Switch, please refer to the following table, which defines 16 source channels for the system. TX / DIP SW...
