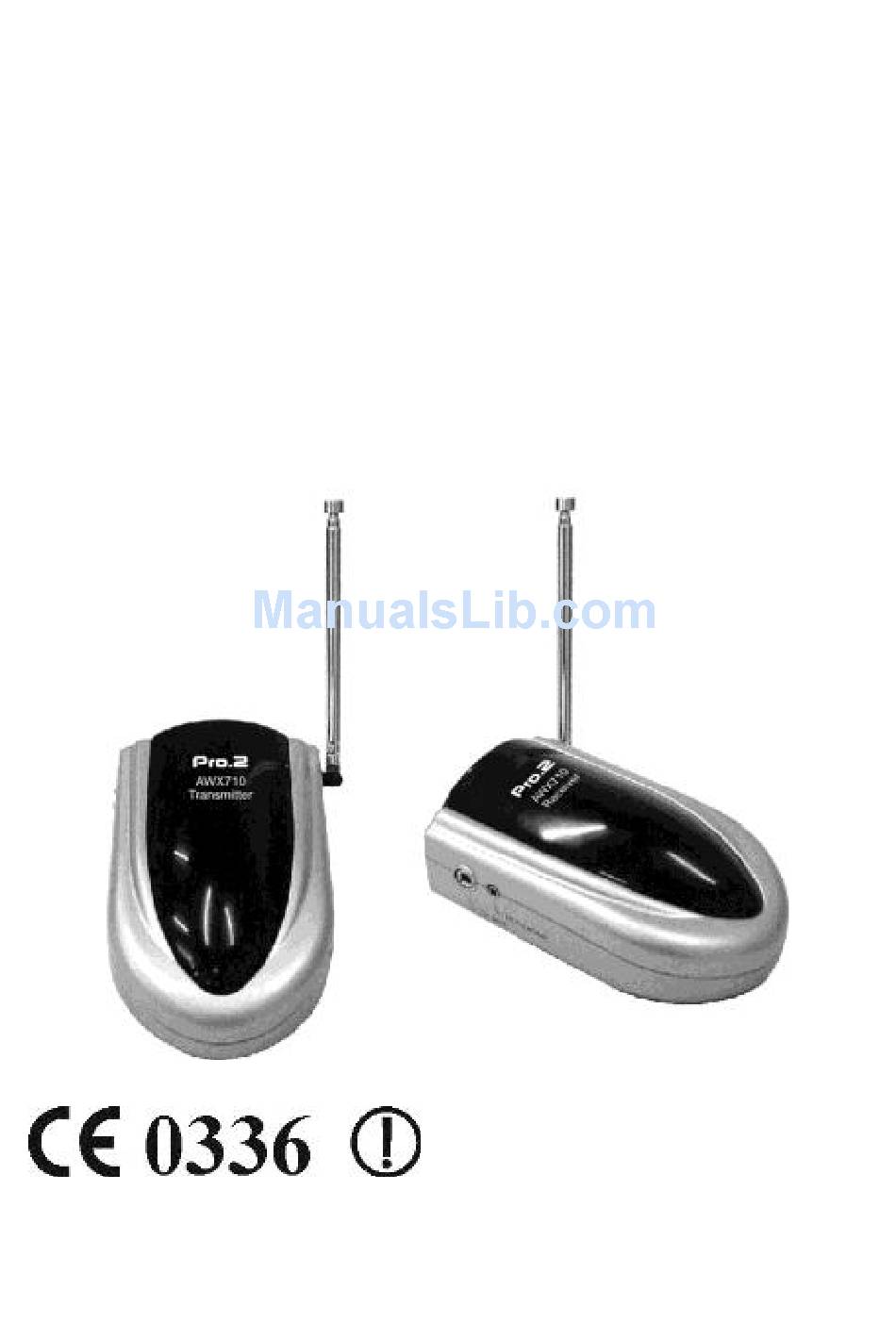

- Page 1 AWX 710 REMOTE CONTROL EXTENDER OWNERS MANUAL For use in: Australia, Germany, Italy, France, Spain, U. K., Holland, Sweden Made in China...
-
Page 2: Location Of Controls
LOCATION OF CONTROLS Transmitter Receiver IR emitter DC Power socket DC Power Transmitter and Receiver Front Infrared Remote Control Antenna Remote Control Indicators & IR Transmitter/Receiver Accessories DC 12 V AC 240V Infrared transmitter mouse x 1 Adaptor x 1... - Page 3 710 contains no user serviceable parts. Doing so will void the warranty ‧Use only the power supply provided with the AWX 710 ‧If you are experiencing difficulty with this product, do not attempt to service it yourself. Please call your vendor for...
-
Page 4: Product Description
Converter, Satellite receivers, etc. from virtually anywhere within your home. Unlike ordinary remote controls which are only effective in close-range line of sight use, The AWX 710 uses radio frequency that can operate through walls, doors, around corners, etc. Applications... - Page 5 1.Stereo system with extension speakers RF Signal Probe Wire to Extension Speaker Device to control Wall IR Remote Control AWX 710 Transmitter 2. DSS / Satellite Receiver with remote control: 2nd TV DSS or Satellite Wall Receiver AWX 710 Receiver...
- Page 6 Installation & Operation Guide Receiver Picture 1 Picture 2 W orking with extender probe Antenna Power Adaptor (Using IR ) Make sure the IR probe is stuck facing inrfra red Keep Vertica Receiver on unit Picture 3 Picture 4 W orking without W orking without e xtender probe e xtender probe...
- Page 7 Transmitter Picture 6 Picture 5 Working Angle not more than +/- 15° Antenna Power Adaptor Keep Vertical Remote Control Picture 7 Antenna Distance Not less than 0.3M and not more than 5M Working Angle not more than +/- 15°...
-
Page 8: Specifications
Care and Maintenance ‧Keep the AWX710 Remote Extender dry. If it gets wet, turn it off at the power point and wipe it dry immediately. ‧Use and store the AWX710 only at normal temperature environments. Extreme temperatures (below – 10°C + +40°C can shorten the life of electronic devices ‧Handle the AWX710 gently and carefully.
