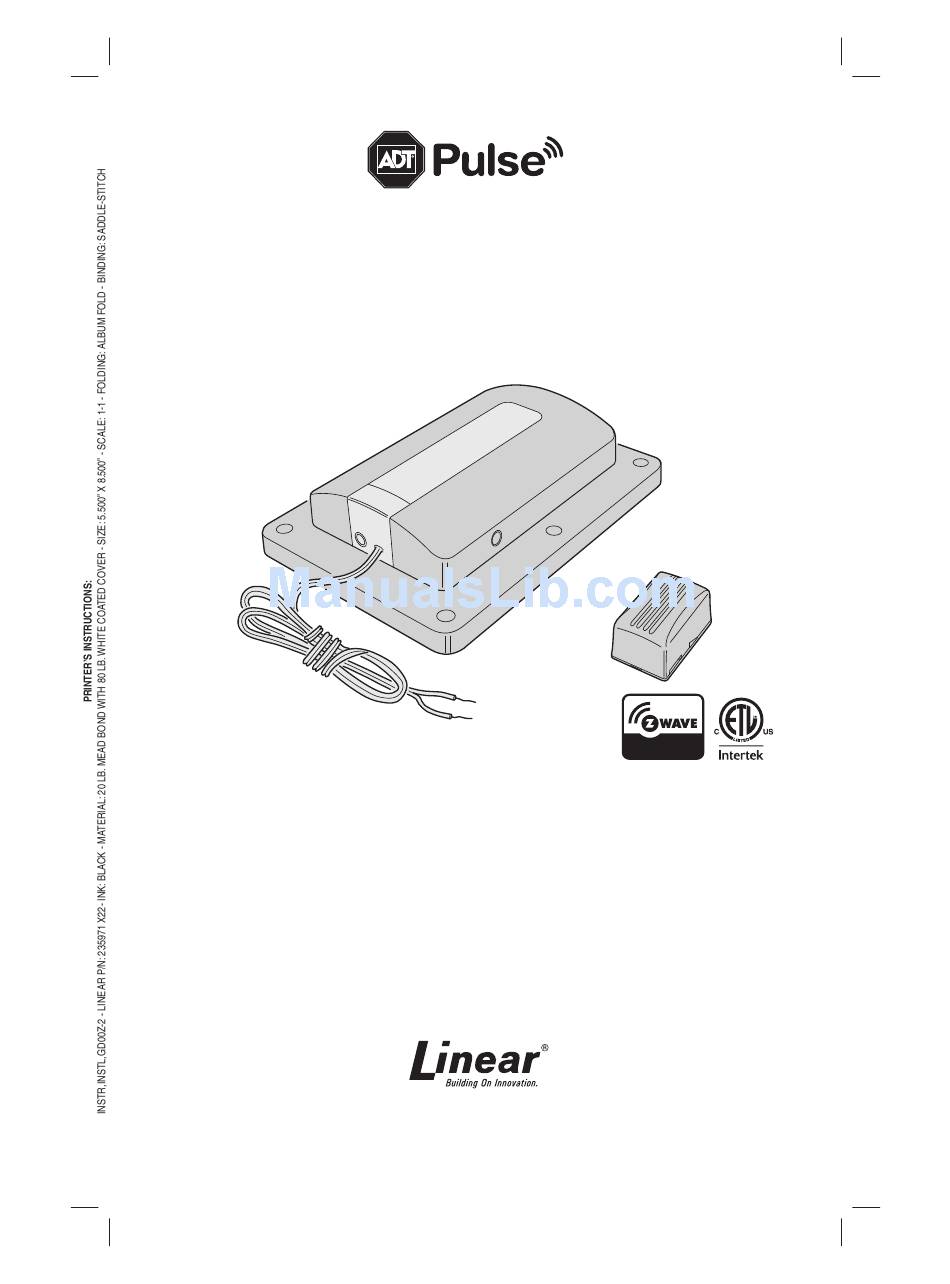

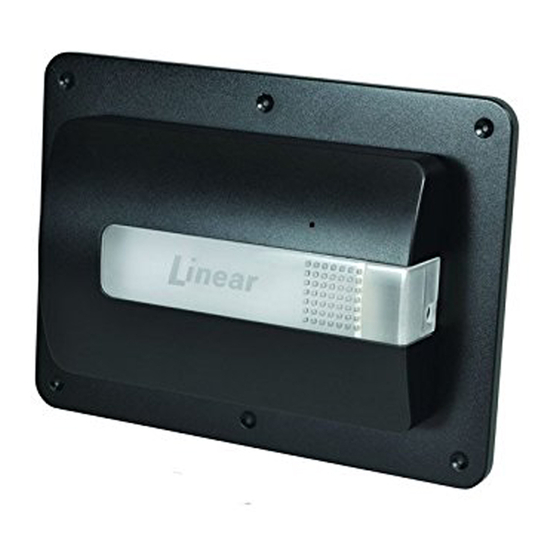

Page 1: Installation Instructions
® GARAGE DOOR OPENER REMOTE COMMAND CONTROLLER with TILT SENSOR GD00Z-2 Installation Instructions USA & Canada (800) 421-1587 & (800) 392-0123 (760) 438-7000 - Toll Free FAX (800) 468-1340 www.linearcorp.com... -
Page 2: Regulatory Information
Regulatory Information Regulatory Information ● Z-Wave ® is a registered trademark of Sigma Designs Inc. and/or its subsidiaries. ● Changes or modifi cations not expressly approved by the manufacturer could void the user’s authority to operate the equipment. ● Les changements ou modifi cations non approuvés expressément par la partie responsable de la conformité... -
Page 3: Table Of Contents
Table of Contents Product Description ............. 2 Overview . -
Page 4: Product Description
◆ Acts as a Z-Wave repeater to improve communications within the Z-Wave mesh network. ◆ ASSOCIATION: The GD00Z-2 supports 1 Group with 1 Node. Group 1 must be assigned the Node ID of the controller to which unsolicited notifi cations from the Controller will be sent. -
Page 5: Package Contents
• The Controller — The Controller wires to the garage door opener’s pushbutton terminals, receives door status from the tilt sensor, and communicates with the ADT Pulse system. • The Tilt Sensor — The battery powered Tilt Sensor monitors the position of the garage door and sends the status to the Controller. -
Page 6: Tilt Sensor Installation
Tilt Sensor Installation Mounting the Tilt Sensor The battery powered Tilt Sensor attaches to the top panel of the garage door. 1. Before installation, activate the Tilt Sensor by pulling and removing the battery protection strip. 2. If using screws to mount the Tilt Sensor, open the sensor case with a small screwdriver. -
Page 7: Enrolling With The System
Controller be factory reset. Reset the Controller by pressing the Include button 5 times.(Location of Include button is shown in Figure 2 on Page 3). A quick beep followed by a longer beep will indicate proper reset of the GD00Z-2. To add a Garage Door Controller: 1. - Page 8 6. At the Trigger Device screen, press and hold the Garage Door Controller’s include button for 1 second (See page 3, Figure 2 for the location of the include button). 7. Wait while the system fi nds the GD00Z-2 Device. When the device is successfully recognized, the Found Device screen appears.
- Page 9 Enrolling with the System (Cont.) 8. Enter a name for the device, and then click Continue. A message informs you that the device was successfully added. 9. Click Finish.
-
Page 10: Resetting Or Excluding The Garage Door Controller
Enrolling with the System (Cont.) Resetting or Excluding the Garage Door Controller If you have trouble adding the Garage Door Controller you can reset the device. Resetting the device removes it from a site (Not the same as factory resetting the device). You can then try to add the device again. -
Page 11: Controller Mounting
LAMP MUST BE VISIBLE IN ALL DOOR POSITIONS Figure 4. Controller Components TYPICAL MOUNTING METHOD ALTERNATE MOUNTING METHOD THE GD00Z-2 CAN ALSO BE ATTACHED TO THE OPENER'S HARDWARE USING THE ADJUSTABLE MOUNTING BRACKET USE THE FOUR SCREWS SECURE THE OPTIONAL ADJUSTABLE... -
Page 12: Controller Connections
The Garage Door Controller wires to the garage door opener with a two wire connection. 1. Connect the GD00Z-2 connection wires to the two pushbutton terminals on the garage door opener. The terminals on various models may have different names. Either wire can connect to either terminal. -
Page 13: System Operation
4. Verify that the Garage Door Controller fl ashes for fi ve seconds before the door moves. 5. The door should open or close. 6. Verify that the ADT Pulse system indicates the open or closed status of the garage door. -
Page 14: Operation Notes
If the second attempt fails, the Controller will go into lock-out mode. See next paragraph. ◆ If the GD00Z-2 is in lock-out mode and will not accept remote commands, activate the door from the pushbutton wall console. -
Page 15: Troubleshooting
2. Make sure that the GD00Z-2 connection wires are connected to the proper terminals on the garage door opener. Trace the wires from the garage door opener’s pushbutton wall console to the door opener. - Page 16 ® Copyright © 2014 Linear LLC 235971 X22...
