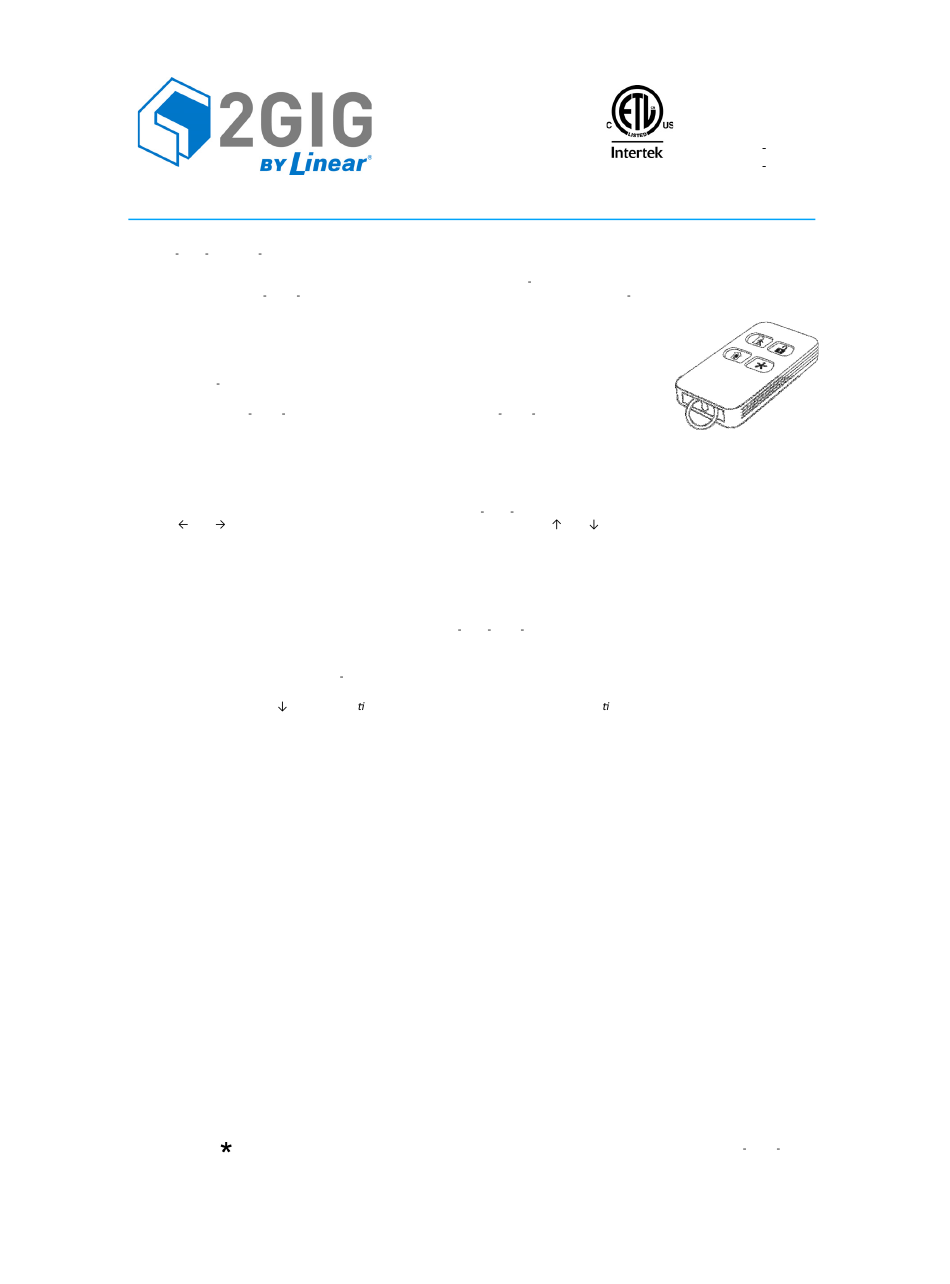

Linear 2GIG-KEY2-345 Install Instructions

4-BUTTON KEY RING REMOTE
INSTALL INSTRUCTIONS
The 2GIG KEY2 345 is a 4 button key ring remote. The key fob enables you to turn the 2GIG system on and off before entering the
home or after exiting. If there is an emergency, you can turn on the siren and automatically call the central monitoring station. If
lamp modules have been installed, you can use the key fob to turn all system controlled lights on or off via the open collector
output. Use with the 2GIG GDR1 345 to open a garage door. The key fob is a lithium coin battery powered, wireless key fob designed
to fit on a keychain, in a pocket, or in a purse. It provides a convenient option for the following system operations:
• Arm the system (doors, windows, and motion sensors)
• Arm the system with no entry delay (if programmed)
• Disarm the system
• Trigger panic alarms
• Turn system controlled lights on or off (via the open collector output)
• Other open collector output functions (if applicable)
• Use with the 2GIG GDR1 345 to open a garage door (see the 2GIG GDR1 345 Install Instructions)
Box Contents
• Key fob
• Key ring
• Lithium battery (included)
Programming
The following steps are for programming (learning) the sensor(2GIG KEY2 345) into the 2GIG Control Panel. Scroll between options
using the and arrows. Move to the previous or next prompt by pressing the
1
Go to Q3: Select fob # (1 to 8).
2
Fob used (0 to 1) or Fob enabled (0 to 1).
(0) unused
(1) used
(0) disabled
(1) enabled
3
Select RF sensor equipment code. Enter 0866 for the 2GIG KEY2 345 4 button Key Ring Remote.
4
Enter RF sensor serial number (7 digits).
Manual Entry: Type in the last 7 digits of the TX ID that is found outside of the box or on the back of the device.
Auto Entry: With the panel in Learn in mode (press Shift then Learn). The correct TX ID should appear. Accept the correct TX ID
by pressing OK.
Remember to press the arrow to con nue going through the 2GIG system configura on prompts.
5
Select RF sensor equipment age (0 to 1).
(0) new (product is new)
(1) existing (product already exists)
6
Select fob emergency key (0 to 4).
(0) disabled
(1) auxiliary alarm
(2) audible alarm
(3) silent panic
(4) fire
7
Select fob key 2 can disarm (0 to 1).
(0) disabled
(1) enabled
8
Construct RF sensor voice descriptor. Press Insert then press any number between 002 and 255 to add a word. For example, if
you wanted to name this Key Ring Remote as "main key remote," press Insert then press 138 for MAIN. Press Insert then press
121 for KEY. Press Insert then press 183 for Remote.
9
Select fob arm no delay (0 to 1).
(0) disabled
(1) enabled
10
Select fob key 4 output (0 to 2).
(0) disabled
(1) toggle output
(2) momentary output
11
To program another sensor click next.
12
To exit programming, click skip then end and exit. Upon exit, the panel takes a several seconds to reboot.
TIP:
Each key fob that is learned in uses one of the available fob sensor numbers as programmed in step 1.
Programming Key Fobs into the 2GIG-GDR1-345
1
Press and release the learn button (the learn indicator will light if there is room in memory.
2
Activate the (Auxiliary) button on the key fob while the indicator is lit (within 15 seconds). The Receiver (2GIG GDR1 345)
indicator flashes. (repeat steps for additional key fobs (up to 10).
FCC ID: WDQ KEY2345
Industry Canada ID: 7794A KEY2345
and arrows.
