Page 1: Operating Manual

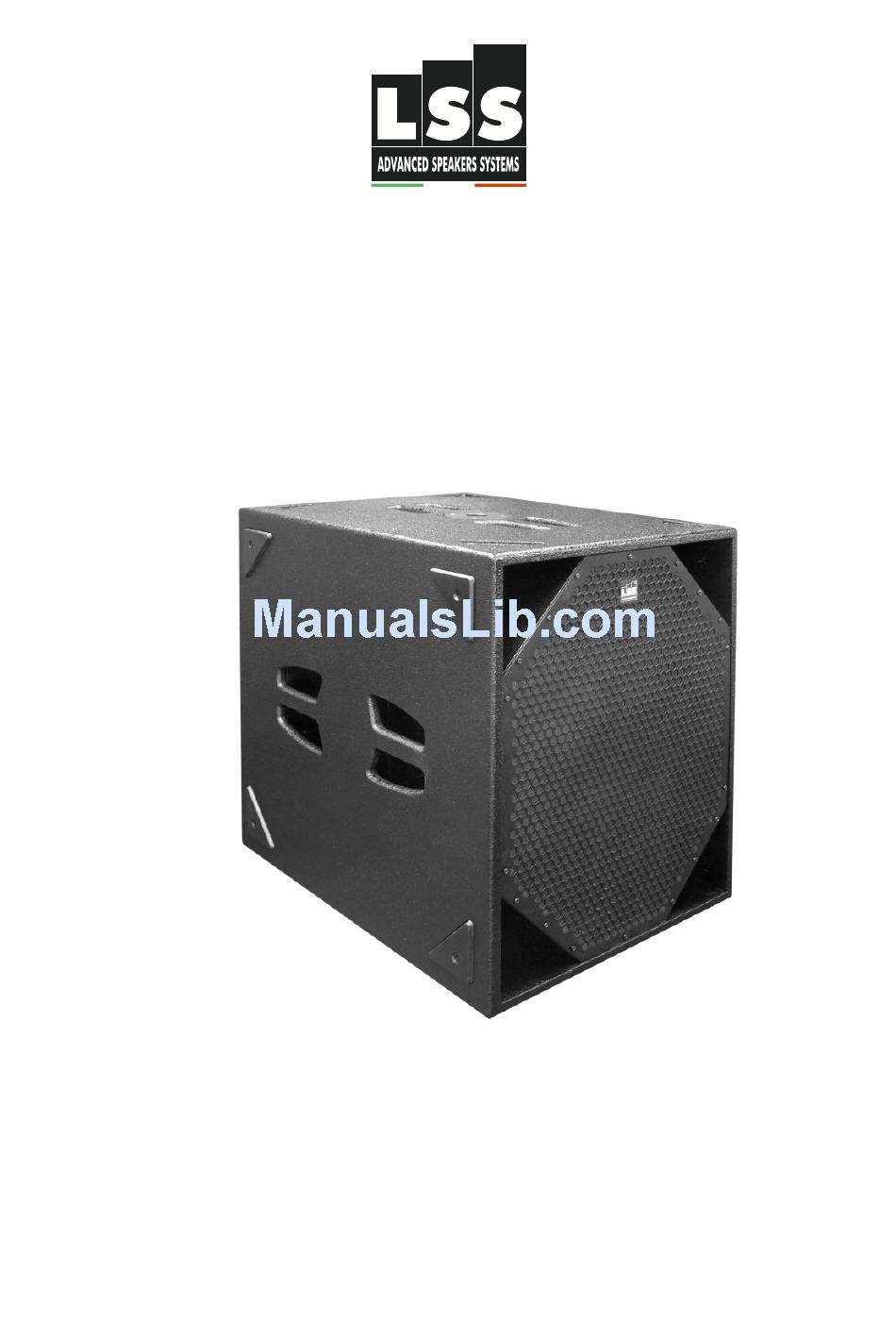

PROFESSIONAL AUDIO SYSTEM OCTO18 OPERATING MANUAL Ver. OCTO18-EN-1.0 LSS Advanced Speaker Systems Via On. Longo 53-89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it... - Page 2 Every precaution has been taken in the preparation of this manual. Nevertheless, LSS assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained in this publication.
-
Page 3: Table Of Contents
INTRODUCTION ............................4 SAFETY AND WARNING ..........................5 APPLICATION ..............................6 PHYSICAL DESCRIPTION ........................... 6 TECHNICAL SPECIFICATIONS ........................7 INSTALLATION AND WIRING ........................8 WEEE DIRECTIVE ............................11 TROUBLESHOOTING ..........................12 DIMENSIONS ..............................13 NOTES ................................14 Operating Manual ver. OCTO18-EN-1.0 |3... -
Page 4: Introduction
LSS produces professional audio products – the result of exceptional engineering and meticulous craftsmanship. This manual is intended for use with LSS loudspeaker. This includes: safety precautions; installation, set-up and operating instruction. Please read this manual plus any accompanying manual and follow all relevant precautions and instructions. -
Page 5: Safety And Warning
LSS loudspeakers can produce sound levels capable of causing permanent hearing damage from prolonged exposure. The higher the sound level, the less exposure needed to cause such damage CAUTION: This product is energized as long as it is connected to the AC. -
Page 6: Application
OCTO18 was designed for a wide range of professional applications. This system uses one woofers of 460 mm (18") with high performance and very high peak output for concert sound. The OCTO18 powering mode is only passive amplified operation with external digital processor. High output, bass response and low distortion make the OCTO18 surprising in performance. -
Page 7: Technical Specifications
Nominal Dispersion (@ -6 dB) units and configuration Birch Plywood of 18 mm [0.71 Enclosure material inches] Finish Texture poliuretanic black paint MECHANYCAL Powder coated perforated steel Grille with anti-dust foam Connectors 2 Neutrik NL4 Speakon Accessories Wheels (Included) Operating Manual ver. OCTO18-EN-1.0 |7... -
Page 8: Installation And Wiring
OCTO18 must be installed on the floor and can be placed both in vertical or horizontal position. On the top and side of OCTO18 there is a plate for fixation of a pole, it can be used to install another speaker above it. - Page 9 3.5 Ohms 2.7 Ohms 2.3 Ohms 2 Ohms 1.8 Ohms NL4 Pin Configuration Mixer Caution: Do not exceed the Pins 1+ and 1- Used maximum load rating of Pins 2+ and 2- Not Used the amplifier. Operating Manual ver. OCTO18-EN-1.0 |9...
- Page 10 OCTO18_______________________________________________________________________________ You can now use the system 10| Operating Manual ver. OCTO18-EN-1.0...
-
Page 11: Weee Directive
Warning: If the product is used for business purposes, the following steps to delete it: contact your LSS dealer for information about the product recall. Might be charged for the costs of collection and recycling. Small products (and amounts) might be taken back by your local collection facilities. -
Page 12: Troubleshooting
Poor system hissing, grounding or ground Check and correct the system grounding, as required. humming loop If these suggestions do not solve your problem, contact your nearest LSS dealer or LSS distributor. 12| Operating Manual ver. OCTO18-EN-1.0... -
Page 13: Dimensions
______________________________________________________________________________ DIMENSIONS SIDE FRONT REAR 70cm 52cm 52cm BOTTOM Operating Manual ver. OCTO18-EN-1.0 |13... -
Page 14: Notes
OCTO18_______________________________________________________________________________ NOTES 14| Operating Manual ver. OCTO18-EN-1.0... - Page 15 ______________________________________________________________________________ CONTACT INFORMATION: LSS Advanced Speaker Systems Via On. Longo 53 89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it Operating Manual ver. OCTO18-EN-1.0 |15...
