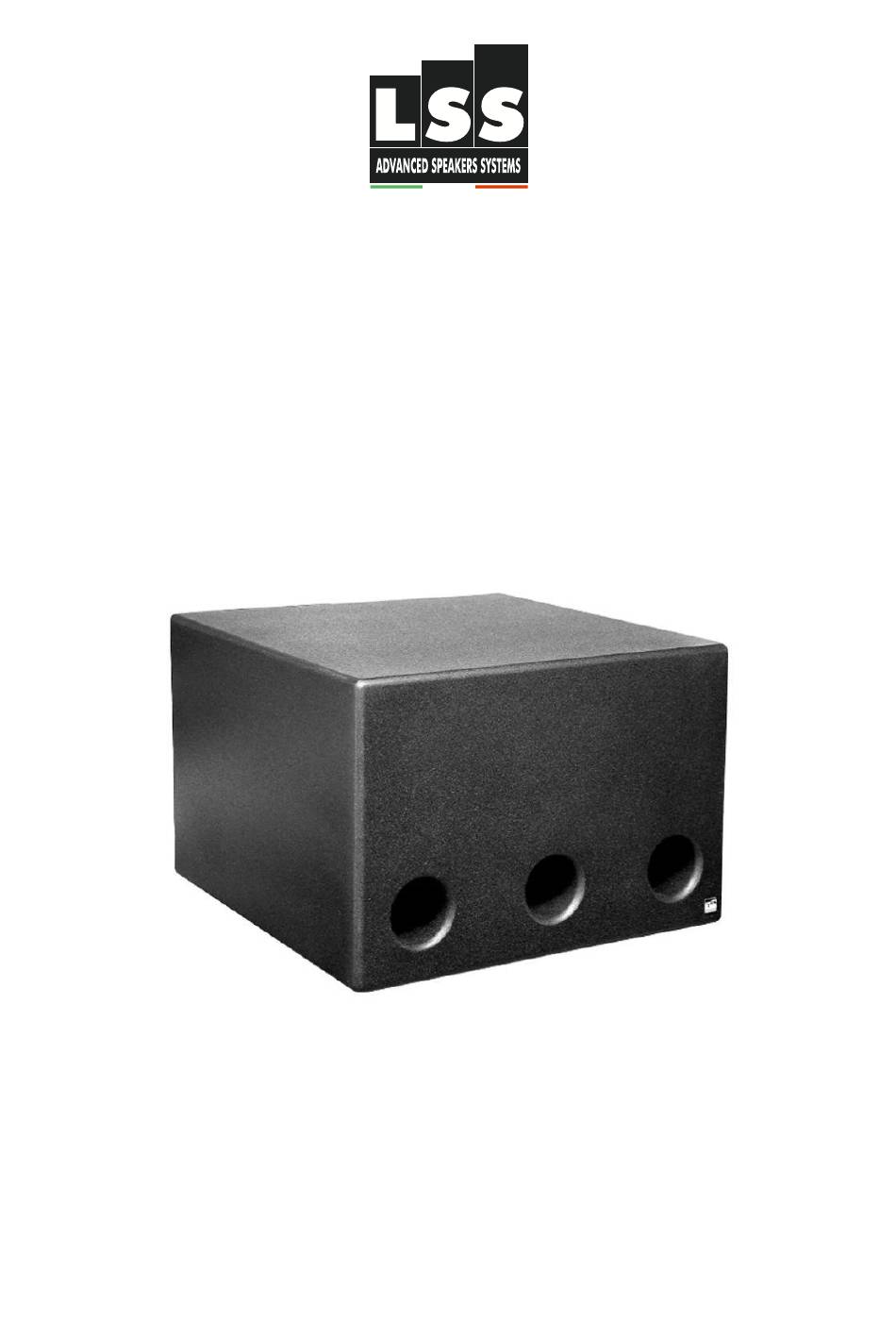

- Page 1 PROFESSIONAL AUDIO SYSTEM PULCEW/EQ OPERATING MANUAL Ver. PULCEW/EQ-EN-1.1 LSS Advanced Speaker Systems Via On. Longo 53-89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it...
- Page 2 Every precaution has been taken in the preparation of this manual. Nevertheless, LSS assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained in this publication.
-
Page 3: Table Of Contents
INTRODUCTION ............................4 SAFETY AND WARNING ..........................5 APPLICATION ..............................6 PHYSICAL DESCRIPTION ........................... 6 TECHNICAL SPECIFICATIONS ........................7 INSTALLATION AND WIRING ........................8 WEEE DIRECTIVE ............................11 TROUBLESHOOTING ..........................12 DIMENSIONS ..............................13 NOTES ................................14 Operating Manual ver. PULCEW/EQ-EN-1.1 |3... -
Page 4: Introduction
LSS produces professional audio products – the result of exceptional engineering and meticulous craftsmanship. This manual is intended for use with LSS loudspeaker. This includes: safety precautions; installation, set-up and operating instruction. Please read this manual plus any accompanying manual and follow all relevant precautions and instructions. -
Page 5: Safety And Warning
LSS loudspeakers can produce sound levels capable of causing permanent hearing damage from prolonged exposure. The higher the sound level, the less exposure needed to cause such damage CAUTION: This product is energized as long as it is connected to the AC. -
Page 6: Application
40-180 Hz range. It can be configured on request in stereo mode or mono mode. LSS's PULCEW uses two 160mm (6") low frequency cone with 38 mm (1.5") voice coil for better performance in permanently installed applications. PULCEW offers passive powering mode, band pass mechanical filter and the internal crossover network for satellite out. -
Page 7: Technical Specifications
Nominal Dispersion (@ -6 dB) units and configuration Enclosure material MDF of 12 mm [0.470 inches] Texture poliurethanic black Finish paint MECHANYCAL Four couples of Red and Black Connectors or two Neutrick NL4 Speakon (on request) Operating Manual ver. PULCEW/EQ-EN-1.1 |7... -
Page 8: Installation And Wiring
Two of them are connected to the right speaker while the other two are connected to left speaker. Considering only two couples of Black and Red clamps (right or left), the bottom couple is the input, the upper couple is the output. 8| Operating Manual ver. PULCEW/EQ-EN-1.1... - Page 9 To satellites From Amplifier Usually PULCEW works well with PULCE speaker, an example of recommended configuration using multiple with PULCEW in STEREO Mode speakers is represented below: PULCEW SUB Amplifier Input B Input A Mixer Operating Manual ver. PULCEW/EQ-EN-1.1 |9...
- Page 10 Mixer Choose a safe mounting location, so as to prevent the cables can be stepped on or create tripping hazards. Before making connections between mixer and speakers, make sure the mixer volume is turned down. 10| Operating Manual ver. PULCEW/EQ-EN-1.1...
-
Page 11: Weee Directive
Warning: If the product is used for business purposes, the following steps to delete it: contact your LSS dealer for information about the product recall. Might be charged for the costs of collection and recycling. Small products (and amounts) might be taken back by your local collection facilities. -
Page 12: Troubleshooting
Poor system hissing, grounding or ground Check and correct the system grounding, as required. humming loop If these suggestions do not solve your problem, contact your nearest LSS dealer or LSS distributor. 12| Operating Manual ver. PULCEW/EQ-EN-1.1... -
Page 13: Dimensions
______________________________________________________________________________ DIMENSIONS SIDE FRONT REAR 40cm 40cm 40cm BOTTOM Operating Manual ver. PULCEW/EQ-EN-1.1 |13... -
Page 14: Notes
PULCEW/EQ___________________________________________________________________________ NOTES 14| Operating Manual ver. PULCEW/EQ-EN-1.1... - Page 15 ______________________________________________________________________________ CONTACT INFORMATION: LSS Advanced Speaker Systems Via On. Longo 53 89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it Operating Manual ver. PULCEW/EQ-EN-1.1 |15...
