Page 1: Operating Manual

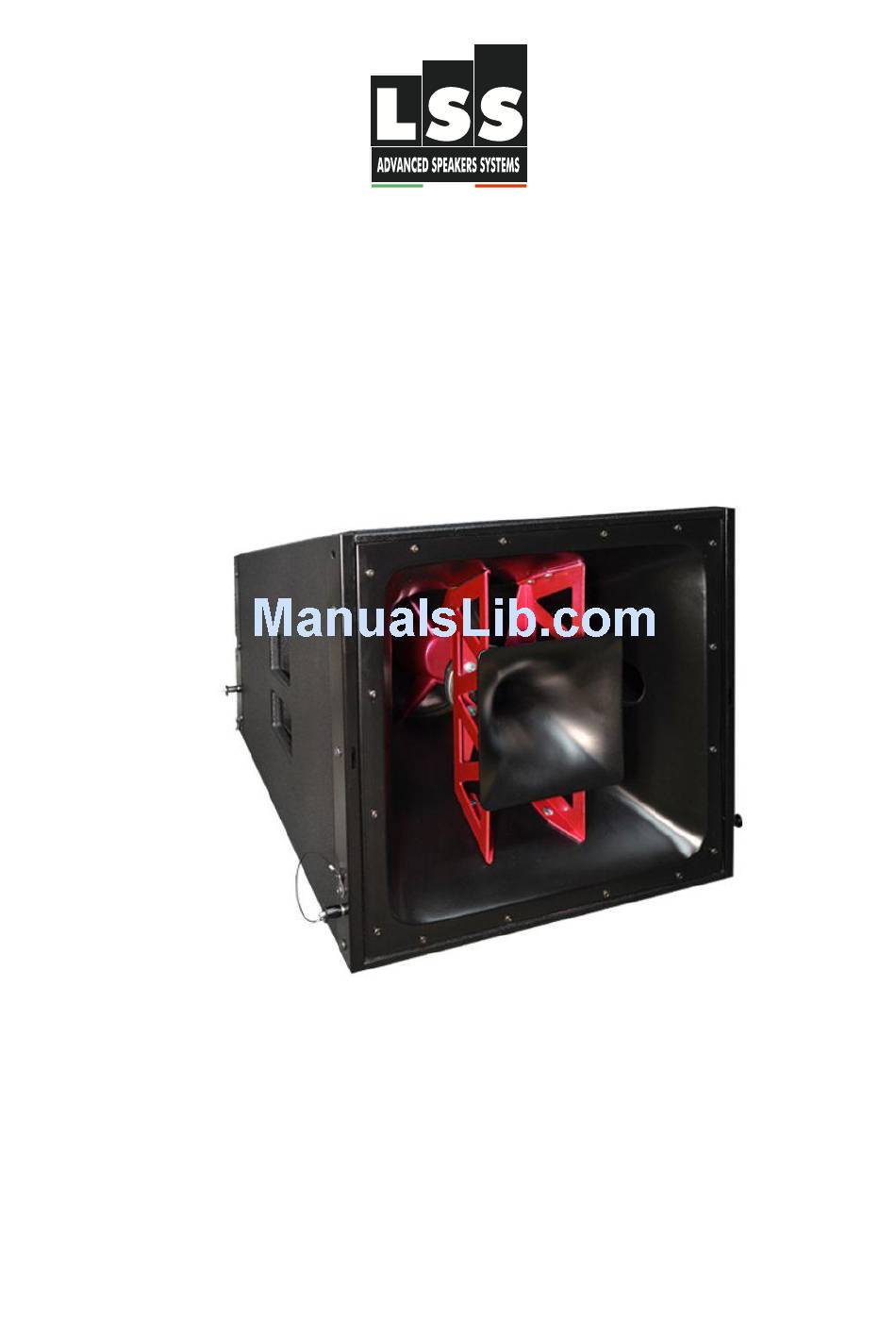

PROFESSIONAL AUDIO SYSTEM QREX OPERATING MANUAL Ver. QREX-EN-1.1 LSS Advanced Speaker Systems Via On. Longo 53-89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it... - Page 2 Every precaution has been taken in the preparation of this manual. Nevertheless, LSS assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained in this publication.
-
Page 3: Table Of Contents
SUMMARY INTRODUCTION ............................4 SAFETY AND WARNING ..........................5 APPLICATION ..............................6 PHYSICAL DESCRIPTION ........................... 6 TECHNICAL SPECIFICATIONS ........................7 INSTALLATION AND WIRING ........................8 WEEE DIRECTIVE ............................11 DIMENSIONS ..............................12 NOTES ................................13 Operating Manual ver. QREX-EN-1.1 |3... -
Page 4: Introduction
LSS produces professional audio products – the result of exceptional engineering and meticulous craftsmanship. This manual is intended for use with LSS loudspeaker. This includes: safety precautions; installation, set-up and operating instruction. Please read this manual plus any accompanying manual and follow all relevant precautions and instructions. -
Page 5: Safety And Warning
LSS loudspeakers can produce sound levels capable of causing permanent hearing damage from prolonged exposure. The higher the sound level, the less exposure needed to cause such damage CAUTION: This product is energized as long as it is connected to the AC. -
Page 6: Application
QREX_________________________________________________________________________________ APPLICATION QREX is a 2-Way vertical Arrayable Coaxial Horn Loudspeaker of high SPL coverage from mid/bass to high frequencies and low distortion. The constant directivity design of the QREX’s coaxial horns ensures that its 60°X40° dispersion. The system consists of two passively coupled devices - a 12"... -
Page 7: Technical Specifications
Birch Plywood of 18 mm [0.70 Enclosure material inches] Finish Texture poliurethanic black paint Grille Powder coated perforated steel MECHANYCAL Connectors 2 Neutrik NL4 Speakon Skate on wheels (optional), Accessories coupling and suspension hardware (included) Operating Manual ver. QREX-EN-1.1 |7... -
Page 8: Installation And Wiring
INSTALLATION AND WIRING QREX can be installed stand-alone or in multiple configuration. Multiple installation of QREX can be done both in stack or fly configuration. Each loudspeaker has a fixing system that allows to be connected and secured to the other loudspeaker. - Page 9 ______________________________________________________________________________ Suspension Hardware allows a very easy connection between QREX and other QREX or SUBQREX in stack configuration. Operating Manual ver. QREX-EN-1.1 |9...
- Page 10 Choose a safe mounting location, so as to prevent the cables can be stepped on or create tripping hazards. Before making connections between mixer and speakers, make sure the mixer volume is turned down. You can now use the system. 10| Operating Manual ver. QREX-EN-1.1...
-
Page 11: Weee Directive
Warning: If the product is used for business purposes, the following steps to delete it: contact your LSS dealer for information about the product recall. Might be charged for the costs of collection and recycling. Small products (and amounts) might be taken back by your local collection facilities. -
Page 12: Dimensions
QREX_________________________________________________________________________________ DIMENSIONS FRONT SIDE REAR 60cm 60cm 60cm BOTTOM 12| Operating Manual ver. QREX-EN-1.1... -
Page 13: Notes
______________________________________________________________________________ NOTES Operating Manual ver. QREX-EN-1.1 |13... - Page 14 QREX_________________________________________________________________________________ CONTACT INFORMATION: LSS Advanced Speaker Systems Via On. Longo 53 89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it 14| Operating Manual ver. QREX-EN-1.1...
