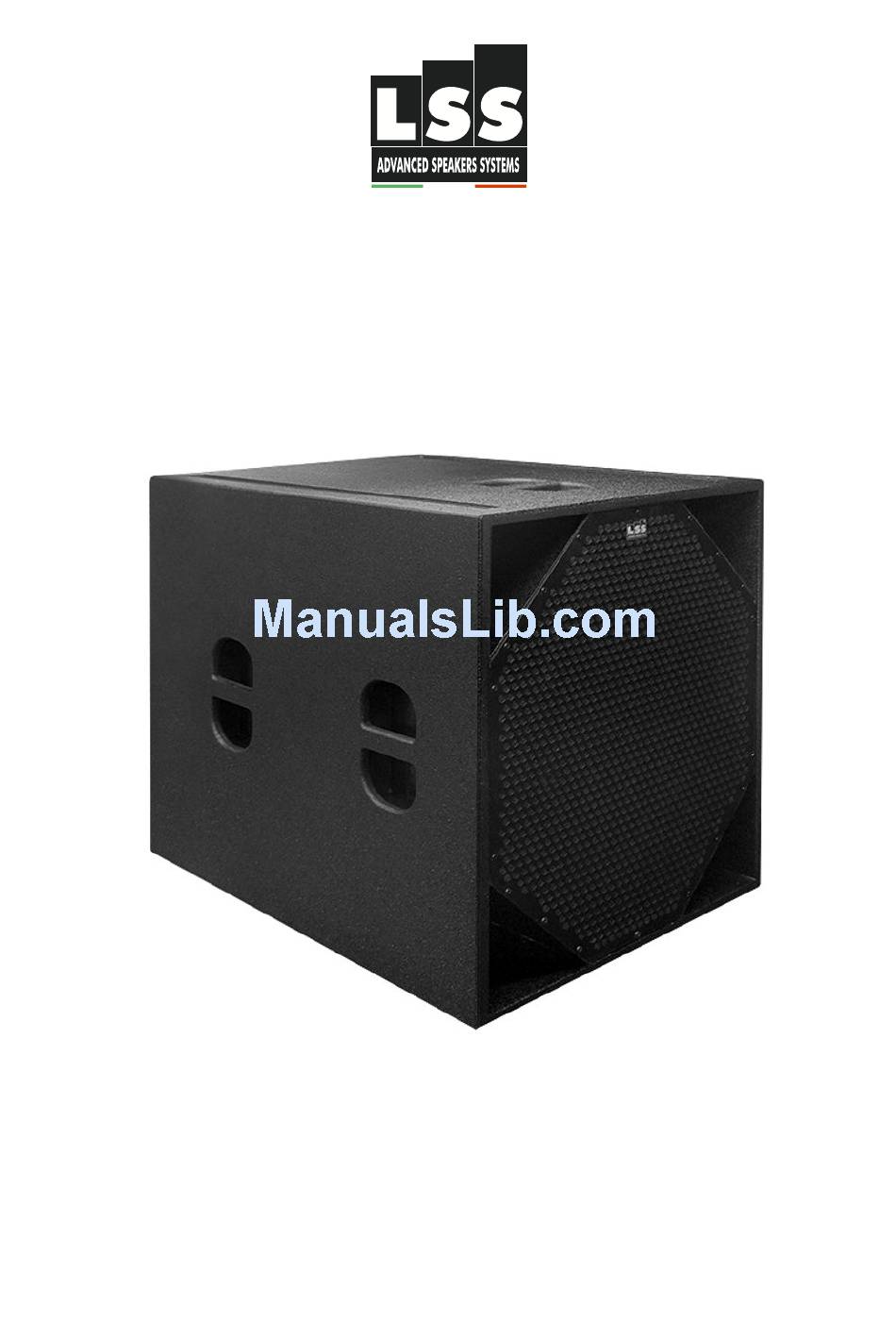

- Page 1 PROFESSIONAL AUDIO SYSTEM OCTO21 OPERATING MANUAL Ver. OCTO21-EN-1.0 LSS Advanced Speaker Systems Via On. Longo 53-89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it...
- Page 2 Every precaution has been taken in the preparation of this manual. Nevertheless, LSS assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained in this publication.
-
Page 3: Table Of Contents
______________________________________________________________________________ SUMMARY INTRODUCTION ............................4 SAFETY AND WARNING ..........................5 APPLICATION ..............................6 PHYSICAL DESCRIPTION ........................... 6 TECHNICAL SPECIFICATIONS ........................7 INSTALLATION AND WIRING ........................8 WEEE DIRECTIVE ............................10 TROUBLESHOOTING ..........................11 DIMENSIONS ..............................12 NOTES ................................13 Operating Manual ver. OCTO21-EN-1.0 |3... -
Page 4: Introduction
LSS produces professional audio products – the result of exceptional engineering and meticulous craftsmanship. This manual is intended for use with LSS loudspeaker. This includes: safety precautions; installation, set-up and operating instruction. Please read this manual plus any accompanying manual and follow all relevant precautions and instructions. -
Page 5: Safety And Warning
LSS loudspeakers can produce sound levels capable of causing permanent hearing damage from prolonged exposure. The higher the sound level, the less exposure needed to cause such damage CAUTION: This product is energized as long as it is connected to the AC. -
Page 6: Application

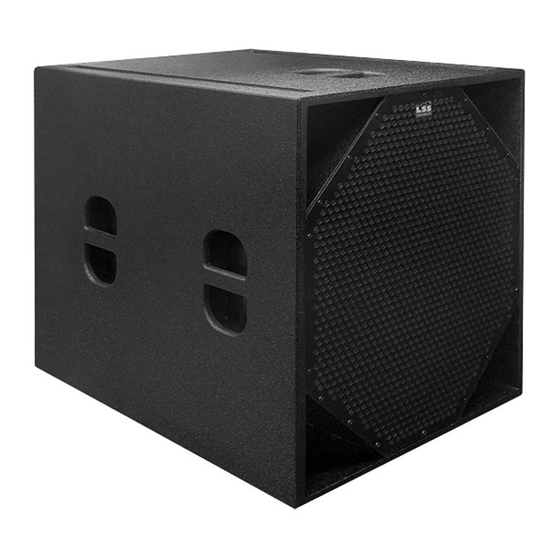

The OCT021 is the ideal product to be paired with speakers such as, SP530, SP640, PSAT1, PSAT2, ST17, HDA24, AR210, AR208 or similar. LSS OCTO21 is a subwoofer of high peak low frequency response in the range 30-150Hz. PHYSICAL DESCRIPTION... -
Page 7: Technical Specifications
______________________________________________________________________________ TECHNICAL SPECIFICATIONS Height 600 [23.62"] Dimensions mm (±1 mm) Front Width 700 [27.56"] [Inches] PHYSICAL Depth 800 [31.50"] Net Weight 70 Weight Kilograms Shipping Weight 76 ±5 dB 30 Hz ~ 150 Hz Frequency Response -10 dB 25 Hz Sensitivity (1 Watt @ 1 m) LF Range Passive 96 dB Max SPL Calculated... -
Page 8: Installation And Wiring
OCTO21_______________________________________________________________________________ INSTALLATION AND WIRING OCTO21 must be installed on the floor. It is possible to install more OCTO21 in stack configuration making fit Top Sub’s plastic skids in bottom sub’s recesses. To transport the speaker, use the wheels installed in the rear of the case. 8| Operating Manual ver. - Page 9 ______________________________________________________________________________ Choose a safe mounting location, so as to prevent the cables can be stepped on or create tripping hazards. Before making connections between mixer and speakers, make sure the mixer volume is turned down. In the connection panel there are two Speakon NL4 connectors referred as ‘IN’...
-
Page 10: Weee Directive
Warning: If the product is used for business purposes, the following steps to delete it: contact your LSS dealer for information about the product recall. Might be charged for the costs of collection and recycling. Small products (and amounts) might be taken back by your local collection facilities. -
Page 11: Troubleshooting
Poor system hissing, grounding or ground Check and correct the system grounding, as required. humming loop If these suggestions do not solve your problem, contact your nearest LSS dealer or LSS distributor. Operating Manual ver. OCTO21-EN-1.0 |11... -
Page 12: Dimensions
OCTO21_______________________________________________________________________________ DIMENSIONS SIDE FRONT REAR 80cm 60cm 60cm BOTTOM 12| Operating Manual ver. OCTO21-EN-1.0... -
Page 13: Notes
______________________________________________________________________________ NOTES Operating Manual ver. OCTO21-EN-1.0 |13... - Page 14 OCTO21_______________________________________________________________________________ CONTACT INFORMATION: LSS Advanced Speaker Systems Via On. Longo 53 89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it 14| Operating Manual ver. OCTO21-EN-1.0...
