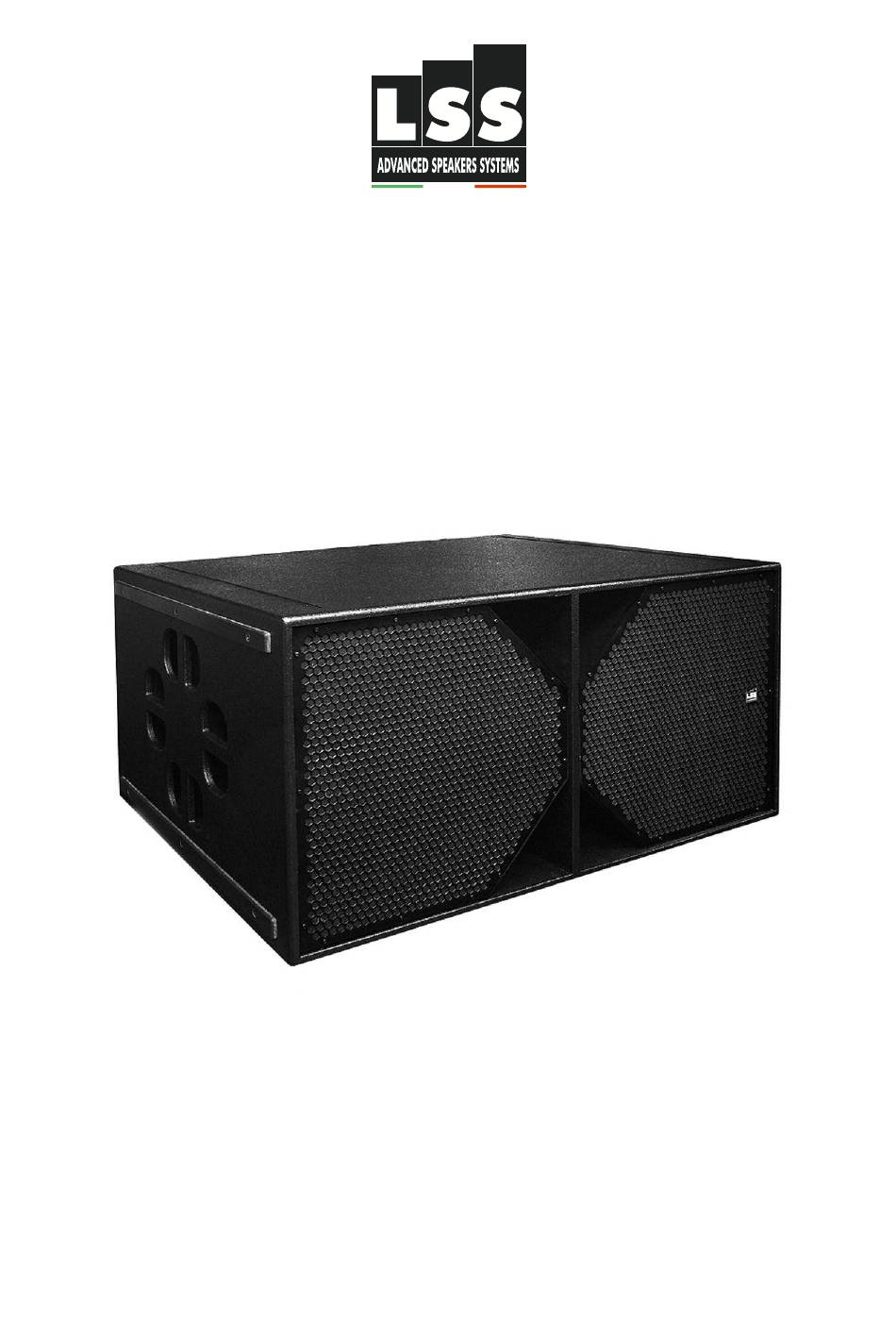

- Page 1 PROFESSIONAL AUDIO SYSTEM HPS246 OPERATING MANUAL Ver. HPS246-EN-1.1 LSS Advanced Speaker Systems Via On. Longo 53-89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it...
- Page 2 Every precaution has been taken in the preparation of this manual. Nevertheless, LSS assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained in this publication.
-
Page 3: Table Of Contents
INTRODUCTION ............................4 SAFETY AND WARNING ..........................5 APPLICATION ..............................6 PHYSICAL DESCRIPTION ........................... 6 TECHNICAL SPECIFICATIONS ........................7 INSTALLATION AND WIRING ........................8 WEEE DIRECTIVE ............................10 TROUBLESHOOTING ..........................11 DIMENSIONS ..............................12 NOTES ................................13 Operating Manual ver. HPS246-EN-1.1 |3... -
Page 4: Introduction
LSS produces professional audio products – the result of exceptional engineering and meticulous craftsmanship. This manual is intended for use with LSS loudspeaker. This includes: safety precautions; installation, set-up and operating instruction. Please read this manual plus any accompanying manual and follow all relevant precautions and instructions. -
Page 5: Safety And Warning
LSS loudspeakers can produce sound levels capable of causing permanent hearing damage from prolonged exposure. The higher the sound level, the less exposure needed to cause such damage CAUTION: This product is energized as long as it is connected to the AC. -
Page 6: Application

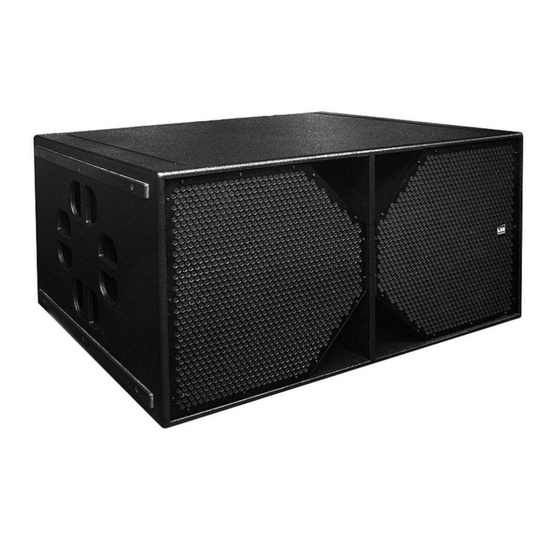

LSS's HPS246 is ideal product for bass frequency reinforcement for concert touring applications. LSS HPS246 is a subwoofer reflex of high peak low frequency response in the range 25-120Hz. PHYSICAL DESCRIPTION... -
Page 7: Technical Specifications
Nominal Dispersion (@ -6 dB) units and configuration Birch Plywood of 18 mm [0.71 Enclosure material inches] Finish Texture poliuretanic black paint MECHANYCAL Powder coated perforated steel Grille with anti-dust foam Connectors 2 Neutrik NL4 Speakon Operating Manual ver. HPS246-EN-1.1 |7... -
Page 8: Installation And Wiring
HPS246_______________________________________________________________________________ INSTALLATION AND WIRING HPS246 can be installed stand alone or in stack configuration. It can be installed both in horizontal and vertical position. In the bottom of the case there are two plastic skeeds used as feet to support the sub. - Page 9 Caution: Do not exceed the Pins 1+ and 1- Used maximum load rating of Mixer Pins 2+ and 2- Not Used the amplifier. Channel 2 has been linked from In to the out. You can now use the system Operating Manual ver. HPS246-EN-1.1 |9...
-
Page 10: Weee Directive
Warning: If the product is used for business purposes, the following steps to delete it: contact your LSS dealer for information about the product recall. Might be charged for the costs of collection and recycling. Small products (and amounts) might be taken back by your local collection facilities. -
Page 11: Troubleshooting
Poor system hissing, grounding or ground Check and correct the system grounding, as required. humming loop If these suggestions do not solve your problem, contact your nearest LSS dealer or LSS distributor. Operating Manual ver. HPS246-EN-1.1 |11... -
Page 12: Dimensions
HPS246_______________________________________________________________________________ DIMENSIONS SIDE FRONT REAR 81cm 120cm 120cm BOTTOM 12| Operating Manual ver. HPS246-EN-1.1... -
Page 13: Notes
______________________________________________________________________________ NOTES Operating Manual ver. HPS246-EN-1.1 |13... - Page 14 HPS246_______________________________________________________________________________ CONTACT INFORMATION: LSS Advanced Speaker Systems Via On. Longo 53 89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it 14| Operating Manual ver. HPS246-EN-1.1...
