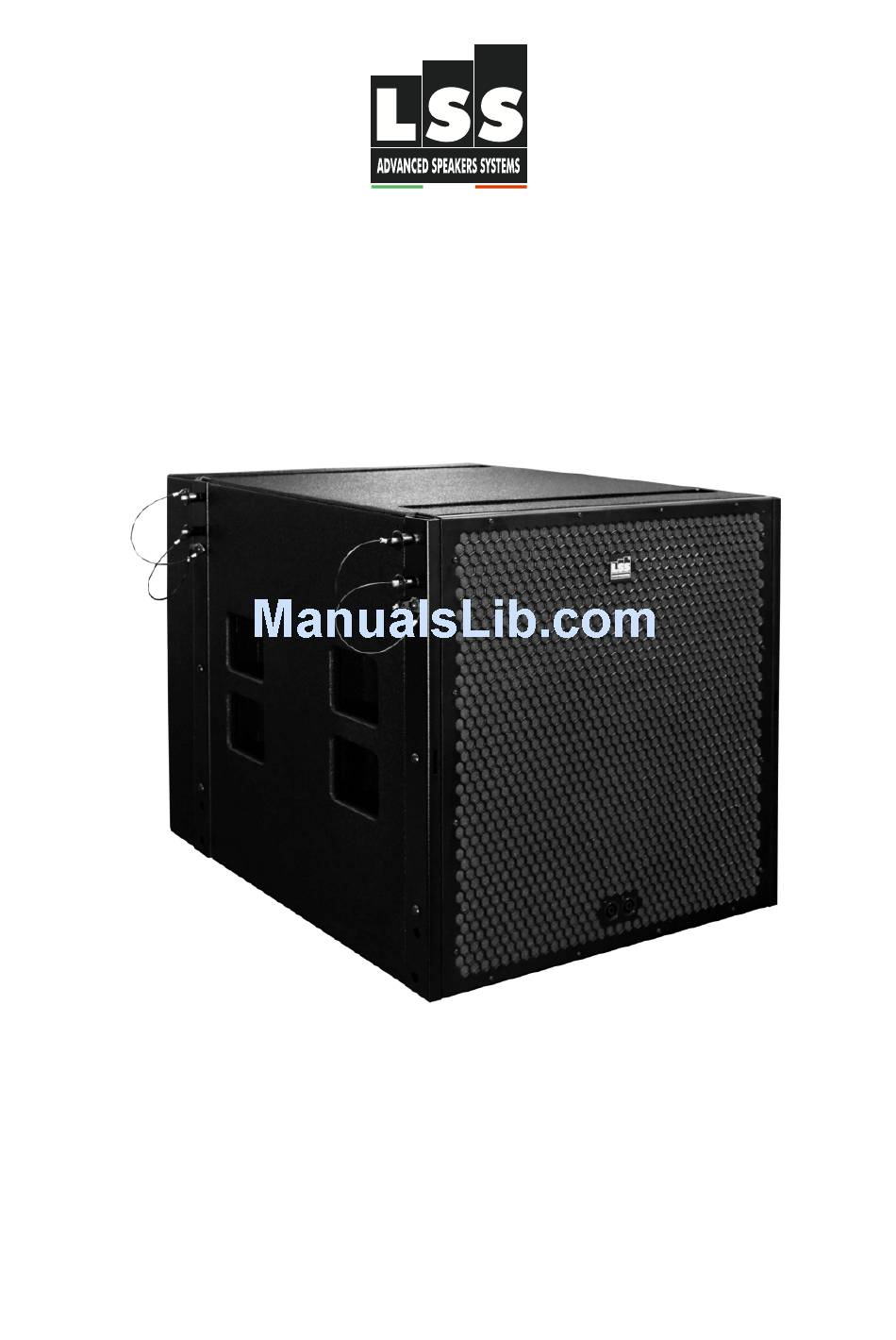

PROFESSIONAL AUDIO SYSTEM SUBQREX OPERATING MANUAL Ver. SUBQREX-EN-1.0 LSS Advanced Speaker Systems Via On. Longo 53-89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it... - Page 2 Every precaution has been taken in the preparation of this manual. Nevertheless, LSS assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained in this publication.
-
Page 3: Table Of Contents
SUMMARY INTRODUCTION ............................4 SAFETY AND WARNING ..........................5 APPLICATION ..............................6 PHYSICAL DESCRIPTION ........................... 6 TECHNICAL SPECIFICATIONS ........................7 INSTALLATION AND WIRING ........................8 WEEE DIRECTIVE ............................12 DIMENSIONS ..............................13 NOTES ................................14 Operating Manual ver. SUBQREX-EN-1.0 |3... -
Page 4: Introduction
LSS produces professional audio products – the result of exceptional engineering and meticulous craftsmanship. This manual is intended for use with LSS loudspeaker. This includes: safety precautions; installation, set-up and operating instruction. Please read this manual plus any accompanying manual and follow all relevant precautions and instructions. -
Page 5: Safety And Warning
LSS loudspeakers can produce sound levels capable of causing permanent hearing damage from prolonged exposure. The higher the sound level, the less exposure needed to cause such damage CAUTION: This product is energized as long as it is connected to the AC. -
Page 6: Application
460 mm (18") with 100 mm (4") split winding copper voice coil, 57 mm (2") peak-to-peak. SUBQREX, owing to its linear tuning, produces a controlled low-end that goes down below 35 Hz. Two different setups are possible thanks the multiple Speakon connection: omnidirectional (front) and cardioid (front and rear),total of four Speakon sockets –... -
Page 7: Technical Specifications
• PIN 2+ / 2– : 18“ chassis Front pin assignment: • PIN 1+ / 1– : 18“ chassis • PIN 2+ / 2– : optional for additional subs Skate on wheels (optional), Accessories coupling and suspension hardware (included) Operating Manual ver. SUBQREX-EN-1.0 |7... -
Page 8: Installation And Wiring
INSTALLATION AND WIRING SUBQREX can be installed stand-alone or in multiple installation. Multiple installation of SUBQREX and QREX can be done both in stack or fly configuration. Each loudspeaker has a fixing system that allows to be connected and secured to the other loudspeaker. - Page 9 ______________________________________________________________________________ Cardioid mode Amplifier and the first SUBQREX are connected via a single 4- poles poles cables. All three SUBQREX are wired using 4-poles speaker cable. REAR FRONT One amplifier channel will be assigned. The two front-firing subwoofers and the single back-firing subwoofer are each driven by one dedicated amplifier channel.
- Page 10 SUBQREX_____________________________________________________________________________ When more SUBQREX are installed in stack, they must be locked using the clamping brackets. Maximum 3 SUBQREX can be installed in stack configuration. The first SUBQREX can be placed on the BUMPERQREX support. BUMPERQREX increases stability in stack configuration...
- Page 11 Choose a safe mounting location, so as to prevent the cables can be stepped on or create tripping hazards. Before making connections between mixer and speakers, make sure the mixer volume is turned down. You can now use the system. Operating Manual ver. SUBQREX-EN-1.0 |11...
-
Page 12: Weee Directive
Warning: If the product is used for business purposes, the following steps to delete it: contact your LSS dealer for information about the product recall. Might be charged for the costs of collection and recycling. Small products (and amounts) might be taken back by your local collection facilities. -
Page 13: Dimensions
______________________________________________________________________________ DIMENSIONS SIDE FRONT REAR 72cm 60cm 60cm BOTTOM Operating Manual ver. SUBQREX-EN-1.0 |13... -
Page 14: Notes
SUBQREX_____________________________________________________________________________ NOTES 14| Operating Manual ver. SUBQREX-EN-1.0... - Page 15 ______________________________________________________________________________ CONTACT INFORMATION: LSS Advanced Speaker Systems Via On. Longo 53 89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it Operating Manual ver. SUBQREX-EN-1.0 |15...
