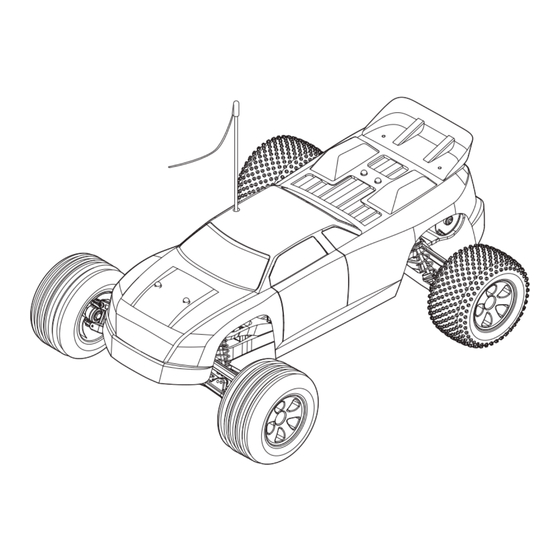

1/10 ELECTRIC STADIUM TRUCK
ECX1000S | ECX1000SA | ECX1000SEU
ECX1100S | ECX1100SA | ECX1100SEU
INSTRUCTION MANUAL
BEDIENUNGSANLEITUNG
MANUEL D'UTILISATION
MANUALE
Congratulations on your purchase of the ECX™ Circuit™
Stadium Truck. This 1/10 scale model introduces you to
the sport of RC driving.
Herzlichen Glückwunsch zum Kauf des ECX™ Circuit™
Stadium Truck. Dieses 1/10 Scale Model öffnet Ihnen
die Welt des RC Car Sports.
Nous vous félicitons pour l'achat du ECX™ Circuit™
Stadium Truck. Ce modèle 1/10 vous introduit au sport
de la conduite RC.
Congratulazioni per l'acquisto di questo Circuit™
Stadium Truck ECX. Questa vettura in scala 1/10 vi
introdurrà nel mondo dei modelli RC.
Advertisement
Table of Contents
Related Manuals for Horizon Hobby circuit ECX1000S
Summary of Contents for Horizon Hobby circuit ECX1000S
-
Page 1: Instruction Manual
1/10 ELECTRIC STADIUM TRUCK Congratulations on your purchase of the ECX™ Circuit™ Stadium Truck. This 1/10 scale model introduces you to ECX1000S | ECX1000SA | ECX1000SEU the sport of RC driving. ECX1100S | ECX1100SA | ECX1100SEU Herzlichen Glückwunsch zum Kauf des ECX™ Circuit™ Stadium Truck. -
Page 2: Table Of Contents
Do not attempt disassembly, use with incompatible components or augment product in any way without the approval of Horizon Hobby, Inc. This manual contains instructions for safety, operation and maintenance. -
Page 3: Specifications
WATER-RESISTANT VEHICLE WITH WATERPROOF ELECTRONICS Your new Horizon Hobby vehicle has been designed and built with becomes excessively wet, apply very light throttle until the water a combination of waterproof and water-resistant components to is mostly removed from the motor. Running a wet motor at high allow you to operate the product in many “wet conditions”, speeds may rapidly damage the motor. -
Page 4: Components
COMPONENTS 1. ECX Circuit 1/10-scale Short Course Truck ™ ™ 2. ECX 2.4GHz Transmitter ™ 3. AA (4) Batteries 4. 2A Peak Battery Charger (DYN4113) 5. Dynamite Speedpack 7.2V ® ™ Ni-MH battery (DYN1050EC) VEHICLE PREPARATIONS CHARGING THE VEHICLE BATTERY CHARGING WARNINGS AND PRECAUTIONS 1. Connect the AC power cord to the power slot on the charger, then connect the other end of the power cord to an AC power source. -
Page 5: Installing Transmitter Batteries
INSTALLING TRANSMITTER BATTERIES CAUTION: If using rechargeable batteries, charge only rechargeable batteries. Charging non-rechargeable batteries may cause the batteries to burst, resulting in injury to persons and/or damage to property. NEVER install damaged batteries, batteries of mixed types or batteries of different ages in the transmitter. Remove exhausted batteries. NEVER store the transmitter with batteries installed. Install 4 AA alkaline batteries into the transmitter, following the instructions provided for your radio system. -
Page 6: Transmitter Controls
TRANSMITTER CONTROLS Reverse Switch Battery Level Indicator Solid Red and Green: Battery voltage is good (Above 4V). Allows you to change the direction of steering Solid Red: Battery (ST. REV) and throttle (TH. REV) controls. voltage is critically low (Default setting for steering and throttle is (below 4V). -
Page 7: Getting Started
GETTING STARTED 2. Power on the ESC. 1. Power on the transmitter. 3. Do a test of the transmitter’s control of the vehicle with the vehicle’s wheels off the ground. 4. Start driving slowly, and, if the vehicle does not go straight, adjust the steering trim dial on the transmitter. NOTICE: Seat the motor brushes by driving smoothly on a flat surface during use of the first battery charge. Properly seating the motor brushes will increase the life and performance of the motor. -
Page 8: Operation
OPERATION • ALWAYS turn on your transmitter before you turn on the receiver • ALWAYS operate your vehicle in a wide open area. Operating the in the vehicle. Always power off the receiver before turning your vehicle in a small space or indoors can cause overheating at low transmitter off. speeds. Operating at low speed increases heat in the electronic speed control (ESC). Overheating can damage the vehicle and failure may result. WHEN YOU ARE FINISHED 1. Power off the Electronic Speed Control 2. -
Page 9: Maintenance
MAINTENANCE SETTING THE GEAR MESH The gear mesh has already been set at the factory. Setting the gear mesh is only necessary when changing motors or gears. You must remove the vehicle’s gear cover (A) to make this adjustment. Proper gear mesh (how the gear teeth meet) is important to the performance of the vehicle. -
Page 10: Electrical Layout
ELECTRICAL LAYOUT Part # Description DYN1171 Motor DYN1050EC Battery 7.2V DYN3900 Steering Servo ECX9011 Receiver DYN4925WP Electronic Speed Control (ESC) Channel 1 Channel 2 For correct operation, Channels 1 and 2 must be used as shown in the wiring diagram. The motor can be disconnected from the ESC at the connectors in the wiring. -
Page 11: Fasteners
FASTENERS Description Description Description TAPPING BINDER HEAD M3x10mm BINDER HEAD M3x20mm SETSCREW M3x3mm TAPPING BINDER HEAD M3x12mm SETSCREW M3x12mm BINDER HEAD M3x25mm TAPPING BINDER HEAD M3x16mm BUTTON HEAD M3x30mm SET SHAFT SCREW M3x13mm TAPPING BINDER HEAD M3x18mm BUTTON HEAD M2x6mm WASHER 5x7x0.5mm WASHER 3x8x0.5mm TAPPING FLAT HEAD M3x10mm... -
Page 12: Troubleshooting Guide
THEORY OF LIABILITY, EVEN IF HORIZON HAS BEEN ADVISED OF THE installation, operation or maintenance, (iii) modification of or to any POSSIBILITY OF SUCH DAMAGES. Further, in no event shall the liability part of the Product, (iv) attempted service by anyone other than a of Horizon exceed the individual price of the Product on which liability Horizon Hobby authorized service center, (v) Product not purchased from is asserted. As Horizon has no control over use, setup, final assembly, an authorized Horizon dealer, or (vi) Product not compliant with ap- modification or misuse, no liability shall be assumed nor accepted for plicable technical regulations. OTHER THAN THE EXPRESS WARRANTY any resulting damage or injury. -
Page 13: Contact Information
France Horizon Hobby SAS 14 Rue Gustave Eiffel, Zone d’Activité du +33 (0) 1 60 47 44 70 Réveil Matin, 91230 Montgeron infofrance@horizonhobby.com China Horizon Hobby - China Room 506, No. 97 Changshou Rd. +86 (021) 5180 9868 Shanghai, China 200060 info@horizonhobby.com.cn FCC INFORMATION This device complies with part 15 of the FCC rules. Operation is subject This product contains a radio transmitter with wireless technology to the following two conditions: (1) This device may not cause harmful... -
Page 14: Compliance Information For The European Union
EN 301 489-1 V1.7.1: 2006 EN 301 489-17 V1.3.2: 2008 EN 60950-1:2006+A12: 2011 EN55022: 2010 EN55024: 2010 EN61000-3-2:2006+A1:2009+A2:2009 EN61000-3-3:2008 Signed for and on behalf of: Horizon Hobby, Inc. Champaign, IL USA Steven A. Hall Sep 02, 2012 Executive Vice President and Chief Operating Officer International Operations and Risk Management Horizon Hobby, Inc. circuit... - Page 15 PARTS DIAGRAM | EXPLOSIONSZEICHNUNG | VUE ÉCLATÉE DES PIÉCES | ESPLOSO DEL MODELLO CON REFERENZA PEZZI RECOMMENDED ITEMS Empfohlene Werkzeuge Outils Recommandés Attrezzi raccomandati M3x25 M3x10 M3x12 M3x10 M3x10 M3x25 M4.3x13 M4.3x13 M3x18 M3x8 M3x12 M3x18 M3x12 M3x25 M3x12 M3x12 M3x13 M3x12 M3x12...
- Page 16 PARTS DIAGRAM | EXPLOSIONSZEICHNUNG | VUE ÉCLATÉE DES PIÉCES | ESPLOSO DEL MODELLO CON REFERENZA PEZZI The slipper clutch can be adjusted using this locknut (ECX1060). Fully tighten the locknut. Then loosen the nut two full turns. Die Rutschkupplung kann durch diese Stopmutter eingestellt werden (ECX1060).
- Page 17 Part # | Nummer Description Beschreibung Description Descrizione Numéro | Codice ECX1017 Main Chassis Chassis Châssis principal Telaio principale ECX1028 Servo Saver Set Servo Saver Set Jeu de sauvegarde de servo Set salvaservo Jeu de renfort de Supporti braccetti sosp. ECX1092 Rear Suspension Mount Set Querlenkerhalter hinten suspension arriére...
- Page 18 Part # | Nummer Description Beschreibung Description Descrizione Numéro | Codice Arbre secondaire de Transmission Idler Shaft, Alberino intermedio con ECX1025 Hauptgetriebewelle Set transm-ission, axes Drive Pins spina d’entraînement Axe d’arbre de transmission ECX1026 Transmission Drive Shaft (2) Getreibeausgangswelle (2) Mozzi Differenziale (2) ECX1052 Washer Set...
- Page 19 ECX1000S, ECX1000SA, ECX1000SEU | ECX1100S, ECX1100SA, ECX1100SEU www.ecxrc.com 33331.2 Revised 10/2012 © 2012 Horizon Hobby, Inc. Horizon Hobby, ECX, Boost, Dynamite and Speedpack are trademarks or registered trademarks of Horizon Hobby, Inc. WD-40 is a registered trademark of WD-40 Manufacturing Company.
