FingerTec Keylock 7700 User Manual

Simple card reader for door access & time attendance system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
7700
Keylock
Simple Card Reader for Door Access &
Time Attendance System
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Keylock 7700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FingerTec Keylock 7700

Summary of Contents for FingerTec Keylock 7700

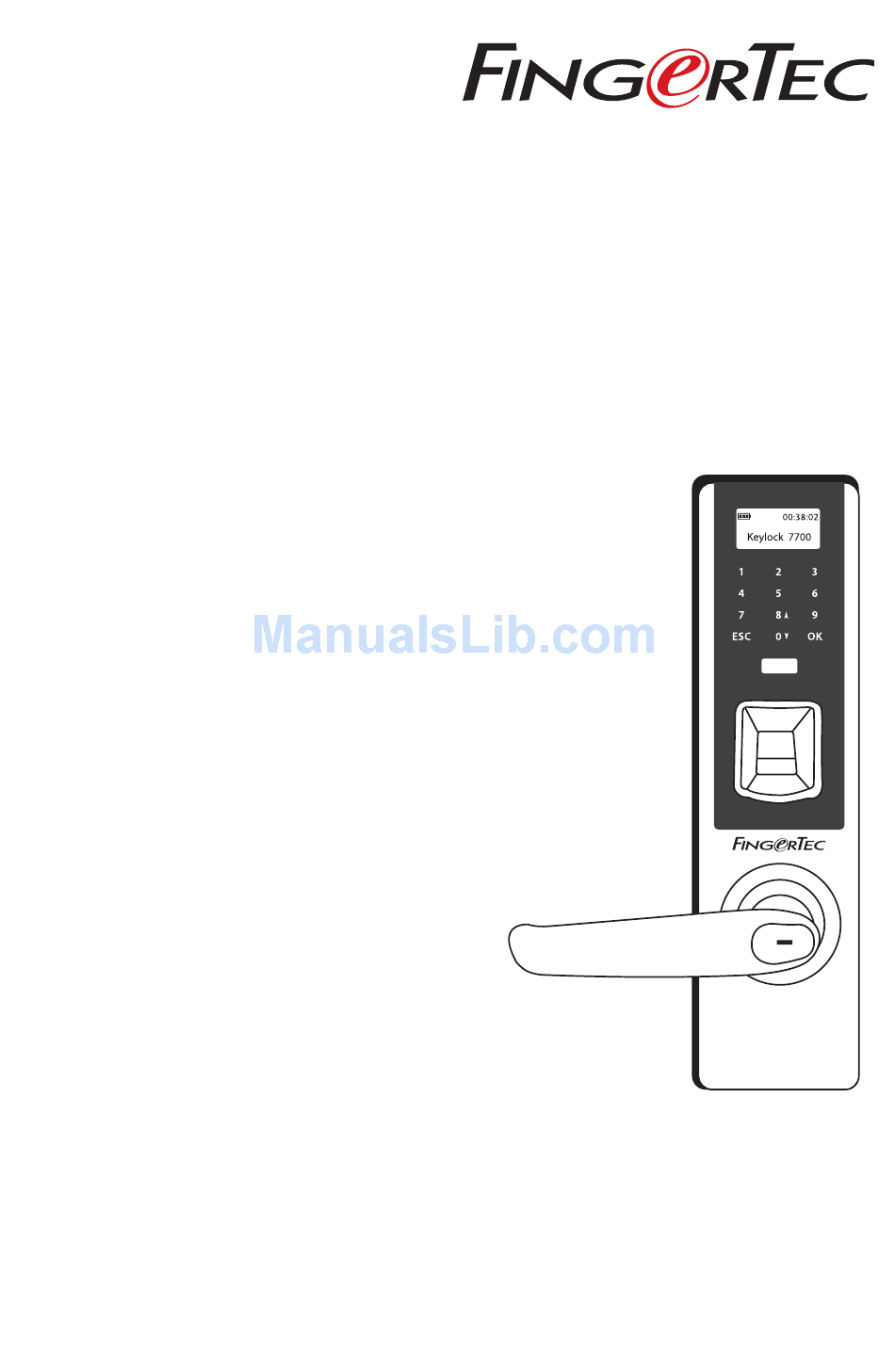

  • Page 1 7700 Keylock Simple Card Reader for Door Access & Time Attendance System User Guide...
  • Page 2 Overview Reactivating Keylock 7700 Keypad How to Access Main Menu Setting of Date and Time Setting Language Cleaning Restarting and Resetting Keylock 7700 CHAPTER 3 • MAIN MENU-MANAGING USERS 8-10 Enrolling User Verifying User Deleting User Access Level/Privilege CHAPTER 4 • DOOR ACCESS OPTIONS...

  • Page 3: Viewing The User Guide In The Internet

    1 • Getting Started VIEWING THE USER GUIDE IN THE INTERNET The Keylock 7700 User Guide is available in the package when you purchased the FingerTec Keylock 7700. The User Guide is also available online at www.fingertec. and user.fingertec.com. Choose your preferred language for the User Guide.

  • Page 4: Included Printed Materials

    Insert four AA batteries to the back of Keylock 7700 and push the Power Up button to start up Keylock 7700. 4 AA Batteries can last up to approximately 4000 standard operations. REGISTERING WARRANTY Make sure that you register your Keylock 7700’s warranty with us at www.fin- gertec.com/ver2/english/e_warranty.htm. CONTENTS...
  • Page 5 Enrollment and management of users is now hassle-free. An administrator can perform enrollment, deletion and amendment of user(s) at Keylock 7700. Keylock 7700 is also designed to allow data transmission through USB flash disk.
  • Page 6 To connect the USB extension provided to download/upload data from/to Keylock 7700. REACTIVATING KEYLOCK 7700 Keylock 7700 is an energy-saving device. Right after every use, Keylock 7700 will re- turn to its idle status. Press the Power Up button to reactivate Keylock 7700.

  • Page 7: Setting Of Date And Time

    Select Language > OK. CLEANING To clean Keylock 7700’s surface, wipe it with a dry cloth. As for the fingerprint scan- ner, you can clean it with a microfiber cloth. Avoid using chemical-based products to clean the device. RESTARTING AND RESETTING KEYLOCK 7700 In the event Keylock 7700 stops responding, it is required to restart or reset Keylock 7700.
  • Page 8 3 • Main Menu – Managing Users ENROLLING USER Keylock 7700 can contain up to 500 fingerprints, 500 passwords and 500 RFID cards. Center point of a fingerprint FINGERPRINT ENROLLMENT It is recommended to enroll two fingerprint templates for each user ID. One fingerprint template will be used as default and another one as backup.

  • Page 9: Verifying User

    (MiFare model only) PASSWORD ENROLLMENT There are various types of verification methods in Keylock 7700. The password can be used alone or in combination with fingerprint verification to offer an enhanced security solution. The password can consist of a combination of numbers from 0-9 and the maximum length of the password is 6 digits.

  • Page 10: Deleting User

    Here are some tips to ensure smoother and more stable fingerprint verifications: • Make sure the finger is placed at the middle of the scanner. • It is recommended to use the index finger for enrollment. Keylock 7700 accepts all fingers but the index finger is the most convenient one.
  • Page 11 > Y/N. NUMBER OF TRIES ALLOWED You can set the number of tries allowed for the Main Menu in Keylock 7700 as a se- curity measure. When a user exceeds the number of tries, the buzzer will trigger a warning if the buzzer is enabled. The default number of tries is 10 and the range is be- tween 0-99.

  • Page 12: Deleting Logs

    (MiFare model only) DELETING LOGS The transaction logs are stored in Keylock 7700 upon successful identity verifica- tion. Once the transaction data is deleted, there is no way to retrieve it again. Please reconfirm before executing this function. Hold down the button to proceed to the Main Menu >...
  • Page 13 DELETE S LOGS S logs stands for scanner logs. The scanner logs keep track of the number of verifica- tion times regardless of successful or failed verifications. To delete the scanner logs: Hold down the button to proceed to the Main Menu > Select Options >...

  • Page 14: Using Usb To Download/Upload Data

    Insert the USB flash disk into the USB port located at the back of the Keylock 7700 ter- minal. Please refer to page XX. Once the USB flash disk has been inserted into the USB port, hold down the button to proceed to the Main Menu >...
  • Page 15 6 • System Information BROWSING ATTENDANCE LOGS You can browse the transaction data stored in Keylock 7700 and you can also choose the designated user of your choice. Hold down the button to proceed to the Main Menu > Select System Info >...

  • Page 16: Device Information

    DEVICE INFORMATION The Keylock 7700 terminal’s information can be obtained here. However the informa- tion is not editable. Description Information The quantity of fingerprint templates in 100s that can still be en- FPCnt(100) rolled into Keylock 7700. E.g.: FPCnt (100) 5 = 500 templates.

  • Page 17: Copyright Notice

    All rights reserved. No part of this book may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or by any information storage and retrieval system, without written permission from FingerTec Worldwide Sdn Bhd. Every precaution has been made to supply complete and accurate information.
  • Page 18 © 2013 FingerTec Worldwide Sdn. Bhd. All rights reserved. • 062013...
