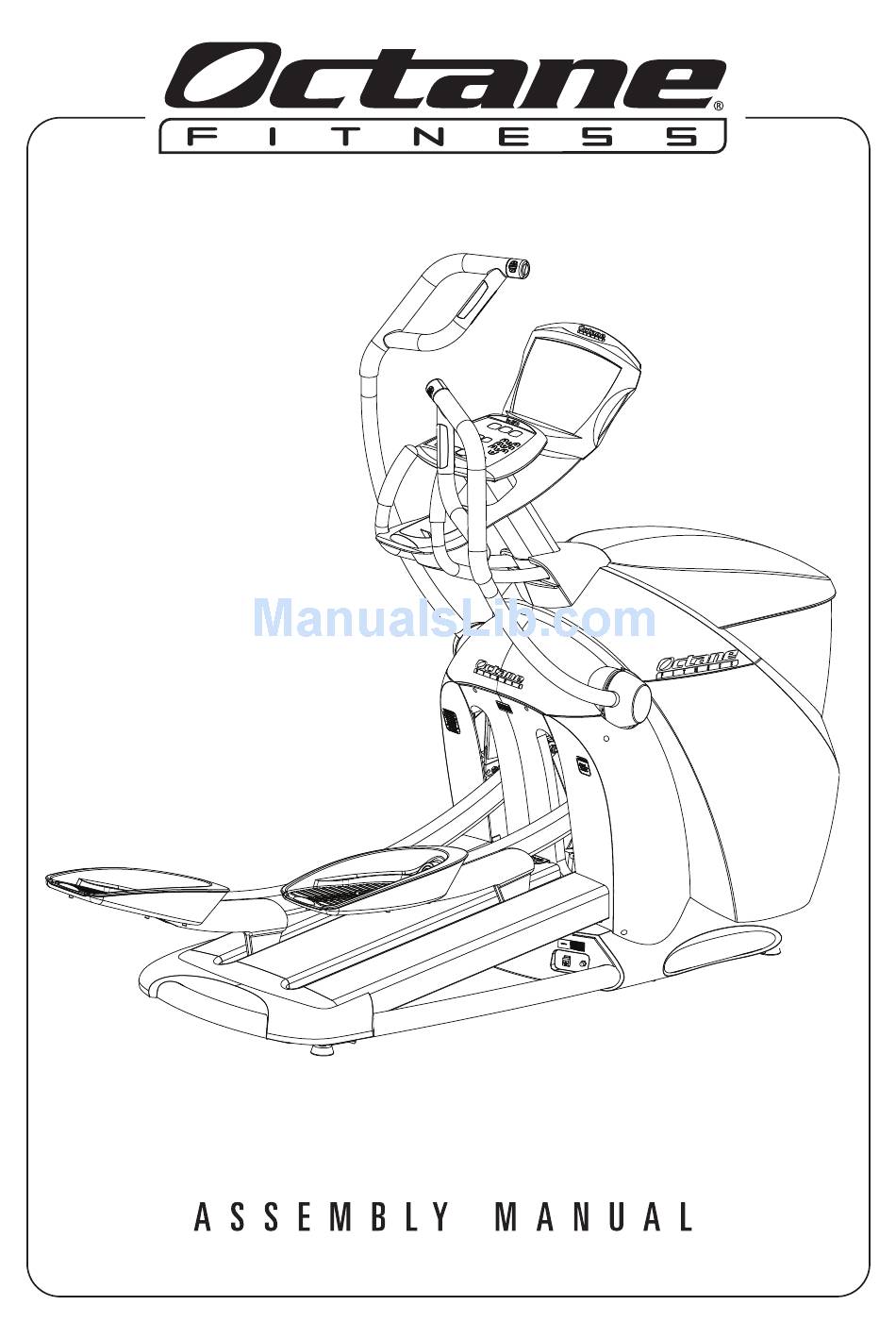

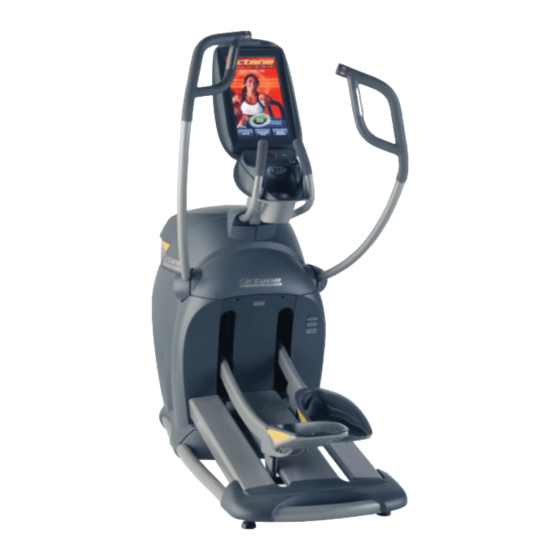

  • Page 1 PRO3700...
  • Page 3 Octane Fitness customer service at 1.888.OctAne4 ext. 1, you may also send an email to customerservice@octanefitness.com, or visit us on the web at www.octanefitness.com.
  • Page 4 P R O 3 7 0 0 C o n t e n t s the Octane Fitness base box contains the following: Tools required: A) 1 - Octane Fitness cross trainer base • Phillips screwdriver b) 1 - Detached right pedal lever •...
  • Page 5 2 - Phillips screws (for mounting access panel) m) 2 - Phillips screws with washers (for mounting top cover) n) 1 - cable tie (for securing loose wires to mast) the PRO3700 console box contains the following: 1) 1 - console 2) 1 - Keypad...
  • Page 6 1. Attach right pedal lever a. Remove bolt from 3-pivot link. b. Attach right pedal lever (b) to 3-pivot link. c. tighten the bolt and nut securely using 17mm socket and wrench. 2. Attach moving handlebars—Moving handlebars are labeled left and right, be sure to install accordingly. a.
  • Page 7 3. Install access panel Tabs a. loosen the screws on the left and right sides of the lower shroud near the front of the unit. (these screws secure the side of the shroud and the access panel to the frame.) b.
  • Page 8 (no action required) Note: If you are using the optional LCD Mounting Arm, the PRO3700 Entertainment Kit, or the PRO3700 900 MHz Audio Kit, skip step 6 of these instructions and instead follow the instructions included with the LCD Mounting Arm. Once you have completed those...
  • Page 9 Heart Rate (black) (white, 3-pin) (white, 2-pin) the connections, or contact Octane Fitness customer CSAFE Audio service for assistance. Once you have verified these (white, 6-pin) functions, proceed with remaining steps.
  • Page 10 Repeat for the other arm. should you have any questions or concerns in making this adjustment, please contact your local service provider or contact Octane Fitness customer service at 1.888.OctAne4, ext. 1. 8. Place handlebar covers a. Position the handlebar cover (H) at the base of the handlebar (F or G).
  • Page 11 9. Adjust stride length (optional) Note: The PRO3700 is initially set to the “Jogging” stride length of 20.5”. To adjust to “Running” length (24”), follow these steps: a. locate the 3-pivot link on the right side of the machine. it is secured to the pivot arm by 3 bolts and a bracket.
  • Page 12 10. Place top cover a Align top cover (D) on top of main housing. Hold the back edge (near the mast) in place and shift the front edge Hold here forward until it settles into position. b. While still holding the back edge in place, press firmly on Secure with screws the bottom edge of the front of the cover until it snaps into...
  • Page 13 Tighten each leveler nut to the top of the leveler to lock. Note: If you move your PRO3700, you may need to adjust the levelers to make sure your product is level with the floor. Caution: If the unit is not level, it may not function properly.
  • Page 14 PRO3700 features transport wheels on the front of the unit. be careful when moving from one surface to another, such as hardwood floor to carpet.
  • Page 15 N O T E S...
  • Page 16 ©2010 Octane Fitness, llc. All rights reserved. Octane Fitness, Dedicatedlogic, Fuel your life, Heartlogic, now-Zone, X-mode, Armblaster, GluteKicker, and smartstride are registered trademarks of Octane Fitness. Any use of these trademarks, without the express written consent of Octane Fitness, is forbidden.
