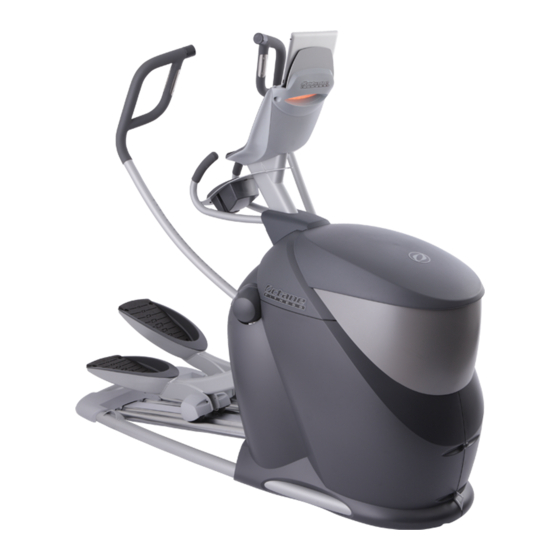

Octane Fitness q47x Assembly Instructions

Base Box
Base

Mast

Boot
Console Right Access Panel
  
Mast Pedal
Lever
A
Pedal
Lever


Remove bolt from 3-pivot link.

Attach pedal lever; tighten to 33 ft-lb.
D
Access Panel &
Handlebar Covers




Loosen screws on sides of lower shroud.


Fit metal plate behind back shroud and side tabs into
slots over side screws. Secure back with B-4 (Qty 2);
tighten side screws.

 Place handelbar covers.
USA & Canada
888-OCTANE4
107949-001 REV A
©2013 Octane Fitness. All rights reserved.
Assembly Instructions
Moving Handlebars

(L and R)
Top Cover

Handlebar
Covers (2)
Moving Handlebars
Adjustment




Attach handlebar at hub with B-1 (Qty 2), B-2 (Qty 2),
B-3 (Qty 1). Tighten to (30 ft-lb).

Connect heart rate and control button cables.
Repeat for second handlebar.
Optional: Adjust moving handlebars for 2" longer / shorter reach:


Hold handlebar;
closest to user provides shortest rech.)

Replace nut; tighten (17 ft-lb).
Repeat for second handlebar.
same position for proper functioning. Call Customer Service
for assistance as needed.
E
Top Cover &
Mast Boot





Position top cover; hold back edge in place; shift front
edge forward and down.

Press bottom edge to snap cover into place; secure
with B-5 (Qty 2).

Wrap mast boot around mast; tuck into access panel.
octanefitness.com
Base Hardware Q47x Console Box
B-1 B-2 B-3 Console
  

(4)
(4) (2) Back
B -6

B -4

(2)
Information Packet

#2 Phillips
B-5

17mm
(2)
Console Hardware

C-1 (4)
#2 Phillips
B-7

#2 Phillips
B
&

remove nut and reposition link. (Hole
Handlebars must be set to



Questions?
Console Assembly Console
 
Back
Mi
Information

Packet
Power Supply

Console Hardware

C-2 (5)
C-1 (4)
#2 Phillips #2 Phillips





Slide mast over screws on base; tighten.

Connect cable connector (mast to base, Qty 1); secure
 cables to frame with B-6.

Route heart rate cable through rear hole in mast and
connect to base cable.

Connect console cables (2) and ground cable. Position
console assembly over top of mast; attach with C-1
(Qty. 4). Connect power supply to unit and to power

outlet. Verify that console LEDs light and stride motors
move.

Align console back with console assembly. Snap
console back and console assembly together at top.
Secure console back with C-2 (Qty 5).



Adjust and lock levelers;

Connect power supply to unit and to power outlet.

Complete User Set-up (press and hold Level (/) —
See Operations Manual for instructions.

Before 1st use and as needed, clean tracks with
a cloth and a solution of mild soap and water.
Q47xi Console Box
Console Assembly

Mi
Boost
your
Workout
P owerband

Power Supply

Handle (2)
Powerband (2)

Wireless Heart Rate

C-2 (5)
Transmitter and Strap
#2 Phillips
C
Mast &

Console
Assembly



F
Level &
User Set-up




make sure nut is tight.
Latin America/Asian Pacific
001-763-757-2662
Europe/Middle East/Africa
31-10-2662412
