Summary of Contents for Boss 752UAB
-
Page 2: Description Of Buttons On Remote Control
DESCRIPTION OF BUTTONS ON REMOTE CONTROL 1. POWER button 2. A.P button 3. SCN(SCAN) button 4. CLK button 5. MODE button 6. BND(BAND) button 7. Number(0~9) buttons 8. * button 9. MUTE button 10. T-M button 11. TEL button 12. CLEAR button 13. -
Page 3: Location And Function Of Controls

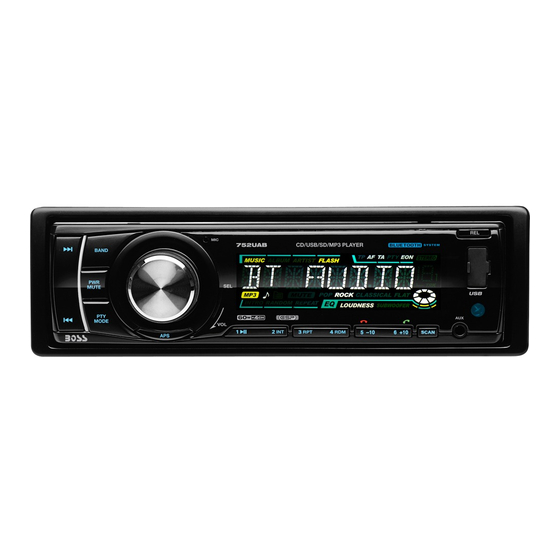

LOCATION AND FUNCTION OF CONTROLS 13. 5/ HANG UP button 1. RELEASE BUTTON 14. 6/ TEL button 2 .POWER/MUTE BUTTON 15. PTY/ MODE 3. CD slot 16. AUX INPUT Jack 4. LCD 17. USB Port 5. EJECT button 18. BAND button 6&7. - Page 4 3. To adjust the volume level Rotate the VOL knob to adjust the volume level during playback. 4. To mute or resume the sound Press the MUTE button to eliminate or resume the sound immediately during playback. To resume the sound immediately, user can also rotate the VOL knob. 5.
-
Page 5: Radio Operation
Radio Operation: 1. To select radio band In RADIO mode, press the BAND button shortly and repeatedly to select your desired radio band in sequence and circulation as follows: -->FM1-->FM2-->FM3-->AM1-->AM2--> 2. To select for radio station manually or automatically Press >>| or |<< button to automatically search up or down for radio station frequency, Press >>| or |<<... -
Page 6: Ta [Traffic Announcement]
interval of checking time of each AFs depends on the signal strength of current station, from a few minute for strong station to a few seconds for weak station. Every time that new AF is stronger than current station, it switches over to that frequency for very short time, and NEW FREQUENCY is displayed for 1-2 second. - Page 7 Press TOP/>|| button and hold for about 1 second to play the first track. 7. To scan tracks In disc, SD, USB playback mode, press INT button to display INTRO on LCD then play the first 10 seconds part of each track of all. 8.
-
Page 8: Bluetooth Handsfree System
Bluetooth Handsfree System: 1. Pairing and Connection 1) Turn on the Bluetooth mode of the mobile phone; 2) Select Finding the Bluetooth Device. After searching is finished, it will show the name of the Bluetooth Device available. Select it and switch to the interface for password, Input the password 0000 and enter it. - Page 9 Bluetooth Wireless APP Control A new and innovative method to control your 752UAB, is from the Boss Audio Radio Stream APP. It enables you to control your music library and all the sources right from your Android* device conveniently and safely through the free app. *Minimum Required Android OS: 2.0 To download follow these easy steps...
-
Page 10: Controls And Functions
Controls & Functions Volume Home (Current View) Sources Sources The available source icons will be highlighted. If the source is unavailable (i.e. CD is not inserted), the icon will be appear dark Volume Volume control be accomplished through the “+” and “-” icons on the screen. The red bar can also be used for volume, it can be moved with your finger left or right, to lower or raise the volume respectively. -
Page 11: Music Library
Aux-In Return Settings EQ Setting Aux-In In Aux-In mode, you have access to Settings, and Volume adjustments. CD/USB/SD/Stream Source Return Music Track Forward Track Back Settings EQ Setting CD/ USB/ SD/ Stream Modes Source Track Controls Music-Access to music library Settings–... -
Page 12: Tuner Settings
Settings Settings EQ– Changes Audio settings, and presets EQ curves Play– Access different play modes, Shuffle, Repeat, etc... RDS– Access to Radio Data System settings Tuner– Access to Radio settings Tuner Settings RDS Settings Play Settings... - Page 13 Clock Clock Date and time is displayed Return and Volume functions are always present APP Info Info Lets you view the APP Version your device currently has installed. We constantly update and fix bugs, the APP Version is subject to change without notice.
- Page 15 WIRING FIXED ISO SOCKET SKETCH FIXED ISO CONNECTOR A FIXED ISO CONNECTOR B 1. REAR RIGHT SPEAKER(+) 2. REAR RIGHT SPEAKER(-) 3. FRONT RIGHT SPEAKER(+) 4.CONSTANT +12V DC 4. FRONT RIGHT SPEAKER(-) 5. AUTO ANTENNA B+ 5. FRONT LEFT SPEAKER(+) 6.
-
Page 16: Specification
SPECIFICATION GENERAL Power supply requirement............DC 12V Current consumption............10A MAX Maximum power output.......4X60W(Measured at 14.4V) Number of channels............2 STEREO Chassis dimensions......( WXHXD)178X50X165(mm) 7"X1.97"X6.5" FM SECTION Frequency range..........87.5MHz -107.9MHz（US） 87.5MHz-108MHz (EU) Usable sensitivity................3uV I.F Frequency...............10.7MHz AM SECTION Frequency range..........530KHz - 1710KHz(US) 522KHz-1620KHz(EU) I.F Frequency................450KHz Usable Sensitivity..............40dB LINE - OUT...
