Summary of Contents for Boss 750BRGB
-
Page 2: Table Of Contents
CONTENTS Precautions........................1 How to Handle Discs....................1 Precautions & Warnings....................1 Lithium Battery Cell Warnings..................1 Drivers and Connections.....................1 Other Warnings......................1 Installation........................2-3 Prepare Installation....................2 To Mount the Car Radio....................2 Electrical Connections....................3 Removal of the Main Unit....................3 Control Panel Button Locations..................4 General Operation......................5-6 Turn Unit On/Off......................5 Adjust Volume (VOL)....................5 Adjust Menu Options (SEL)..................5-6 Set the Clock (CLK)....................6... -
Page 3: Precautions
PRECAUTIONS How to Handle Discs Handle a disc by its edges. Do not touch the playing side Before inserting a disc, wipe the disc outward from the disc center with a clean, soft, dry and lint-free cloth. Do not use solvents or thinners such a petrol/benzene or cleaners. -
Page 4: Installation
INSTALLATION Prepare Installation 1. First complete the electrical connections and then check for correctness. 2. Disconnect the battery negative terminal of vehicle before beginning installation. Installation Opening 53 mm This unit can be installed in any dashboard Having an opening as shown the right figure. 182 mm Important: Remove 2 transport CD deck screws before use. -
Page 5: Electrical Connections
INSTALLATION (CONT.) INSTALLATION DIAGRAM DASH BOARD HEX NUT METAL MOUNTING STRAP SPRING WASHER CONSOLE PLAIN WASHER TAPPING SCREW MOUNTING SLEEVE HEX BOLT - Only use speakers with 4 ohm impedance. - Do not attach the control panel to the chassis before wiring is complete - The maximum current of the Amp Remote trigger is 200mA. -
Page 6: Control Panel Button Locations

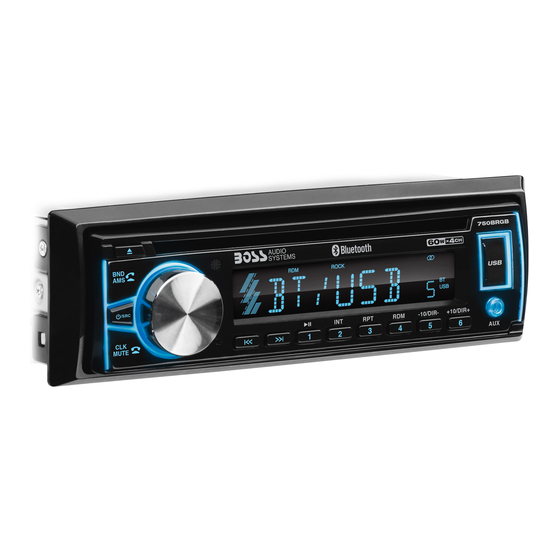

CONTROL PANEL BUTTON LOCATIONS REMOVE PANEL (power) / SRC (source) button SEL (select/menu) button and VOL (volume) knob BAND/AMS(automatic store station, automatic music search) and (anser call) button (pause/play), Preset station 1 button INT (intro), Preset station 2 button RPT (repeat), Preset station 3 button RDM (random), Preset station 4 button -10(previous 10 tracks), DIR- (previous folder), Preset station 5 button 9. -
Page 7: General Operation
GENERAL OPERATION Turn Unit On/Off remote control to turn the unit on or off. Adjust Volume (VOL) Rotate the VOL knob on the front panel or press the VOL+ /VOL- button on the remote control to increase or decrease the volume level. Adjust Menu Options (SEL) SEL button on the front panel or on the remote control repeatedly to cycle through the following adjustable audio functions: BASS, TREBLE, BALANCE, FADER, EQ OFF/FLAT/POP/ROCK... -
Page 8: Set The Clock (Clk)
GENERAL OPERATION VOL+ /VOL- button on the remote control to adjust the selected item. Set the Clock (CLK) 1. To display clock time, press and hold the CLK/MUTE button on the front panel or press the CLK button on the remote control. 2. -
Page 9: Radio Operation
RADIO OPERATION Switch Between USA area and Europe area Frequency In radio mode, press the VOL button to enter the switch state of the US(USA) and EU(europe) frequency, then rotate it to switch between US(USA) and EU(europe) frequency. The system will change the frequency setting in about 3 seconds. Change Bands (BAND) Press the BAND button to switch between the FM1, FM2, FM3, AM1 and AM2 bands. -
Page 10: Disc/Usb/Sd Card Operation
DISC/USB/CARD OPERATION To insert DISC / USB / SD CARD Playback will begin automatically. Label Surface Up port. Playback will begin automatically. into the SD slot on the chassis. Finally install the front panel to the chassis. Playback will begin automatically. Eject Disc/USB/SD then remove it. -
Page 11: Select The Track Or File For Playback In Mp3 Format
DISC/USB/CARD OPERATION Select the track or file for playback in MP3 format Press the AMS button repeatedly to select one of the following 3 search modes: NUM SCH (Searching by track or file serial number) DIR SCH (Searching by folder serial number) FILE SCH (Searching by track or file name) Searching by track or file serial number: a) In playback of files with MP3 format, press the AMS button once to access the track or file number... -
Page 12: Bluetooth Operation
2. When the phone finds the car audio system, the “BOSS 750BRGB” name will be displayed. 3. Choose the “BOSS 750BRGB” from the device list to pair and connect with the car audio system. Upon confirming, the BT logo will stop flashing. -
Page 13: Remote Control
REMOTE CONTROL (CONT.) Remove Insulating Sheet The remote control comes with an insulating sheet attached to the underside of the remote control, as illustrated on the right. The remote control will not work until the insulating sheet is removed. Replace Lithium Battery Cell 1. -
Page 14: Troubleshooting
TROUBLESHOOTING The following chart will help in solving most problems that may occur. If you still have questions after going through the checklist, please consult your local customer service representative. Before going through this check list, refer the wiring and operating procedures. -
Page 15: Specifications
SPECIFICATIONS General Chassis Dimensions..............178(W) x 160(D) x 50(H) mm Power Supply Requirement ...................DC 12V Current Consumption ..................15A (max.) Maximum Power Output ...................60W x 4CH Radio USA/ Europe Frequency Range........87.5 - 107.9 MHz (200KHz/Step) 87.5 - 108.0 MHz(50KHz/Step) Usable Sensitivity ....................30 dBu I.F.
