Summary of Contents for Boss BV9757B

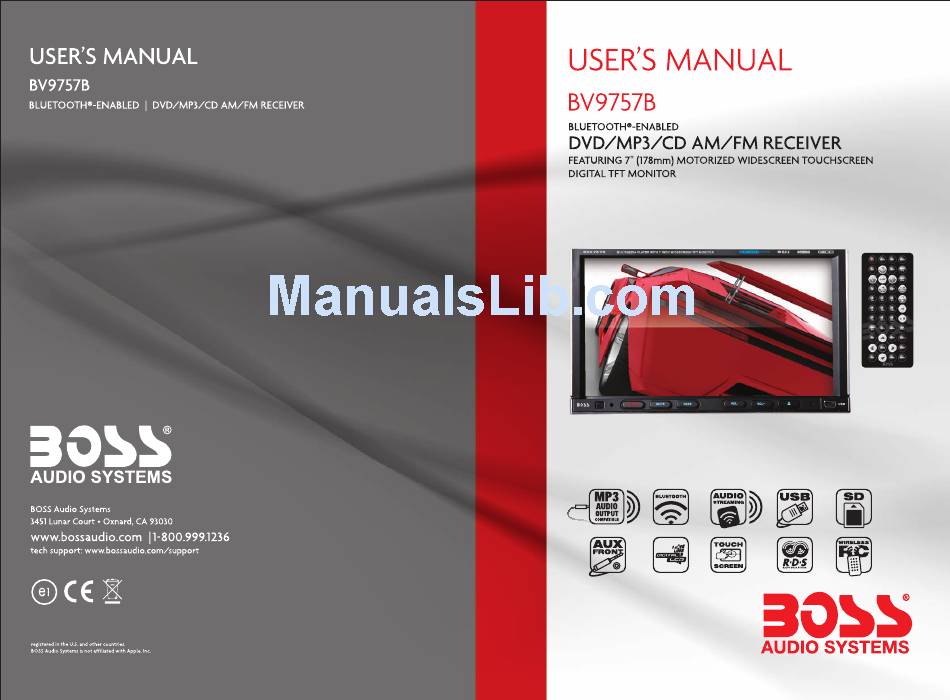

  • Page 1 0514...

  • Page 3: Table Of Contents

    INSTRUCTIONS CONTENTS Panel Introduction Basic Function Remote Control Operation Turn on/off Host Access main interface USB/SD Card Operation Radio Operation Disc Operation Play/Eject Disc DVD/VCD Disc Playback CD Disc Playback MP3/WMA Format Disc Playback Touch Menu Function BT Operation ST. Wheel setting External input operation Calendar Calculator...

  • Page 4: Panel Introduction

    INSTRUCTIONS INSTRUCTIONS Panel Introduction ACCESSORY Accessory Quantity Wire USB Cable Keys 2PCS Remote controller Warranty card 2PCS DVD Parental control function / SRC Button DVD Parental control function 2. MUTE Button 3. DBAS Button DVD Parental control function: The default set 4.

  • Page 5: Specifications

    INSTRUCTIONS BASIC FUNCTION SPECIFICATIONS / SRC button Short press this button to power on, long press this button to power off. Power supply DC 12V In normal situation, press PWR button can return to the main menu. Power range 10.8-16.0V DC 2.

  • Page 6: Wiring Diagram

    INSTRUCTIONS WIRING DIAGRAM BASE This player is equipped with ISO standard connector, please follow below instruction: Red - ACC ON (+12V) Grey/Grey black - Right front speaker (+/-) ● ● White/White black - Left front speaker (+/-) Yellow – 12 V Constant ●...

  • Page 7: Touch Screen Calibration

    Touch screen Calibration Remote Control Operation 3. SOURCE Button Please follow the below instructions to calibrate when there is no touch or Press this button to change mode. touch is not accurate. Step 1: Press the mode button in the unit to switch to DVD mode. 4.
  • Page 8 INSTRUCTIONS INSTRUCTIONS 14. 0-10+ Button 23. ANGLE Button Version 、 Press this button to choose desired song In DVD mode, press this button to change Touch the icon [ ]in setting interface to enter the section、preset stations. play angle. interface below to check the software version number Decimal numbers, for example the 19th of DISC/MCU/TFT/BT ( The version information is displayed song, press 10+ and 9 button.

  • Page 9: Turn On/Off Host

    Access setup interface Turn on/off Click [Setting] icon on main interface to access setup interface. When the ignition switch is put in ACC or ON position, Press power button on the front panel to turn on the unit. After the host starts, hold power button for 3 seconds, the host will turn off.

  • Page 10: Radio Operation

    Radio Operation Other Operation 1. Enter/exit Rear view function Touch [Radio] icon in the main interface to enter into the radio interface. In any running state, the video signal can switch to reverse video state when reversing Touch icon to return to main interface, and then touch other function icons so as to the car, and the system shall return to its initial running state after reversing the car.

  • Page 11: Disc Operation

    ST. Wheel setting Disc Operation 1. Click on the [ ] icon in the main interface into the SWC. settings interface. 1. Play/eject disc Play disc 2. The original vehicle to the control line positive, Insert the disc into the disc slot with the printing surface up, system will detect the disc negative with the machine control line in the and automatically take it in to read and play.

  • Page 12: Bt Operation

    “ device paired ”, otherwise, it shall display “ SEARCHING FOR DEVICE ”.After connect Touch this button and digit keyboard shall appear, click number buttons directly to sucessfully, will show BT friendly name "BOSS AUDIO select tracks for playing. 3. Dialing...
