Summary of Contents for Boss BE9ACP.WX

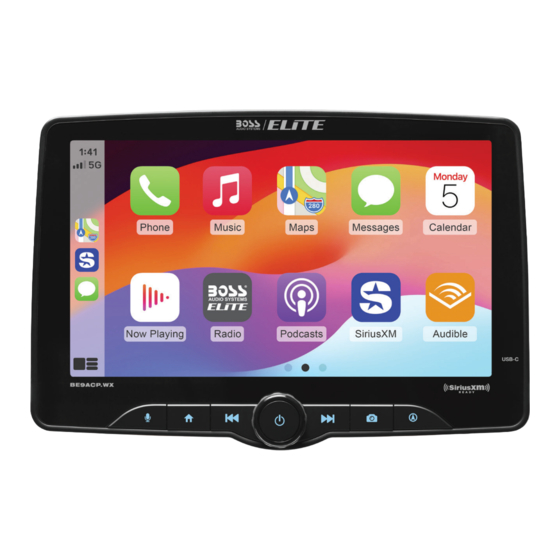

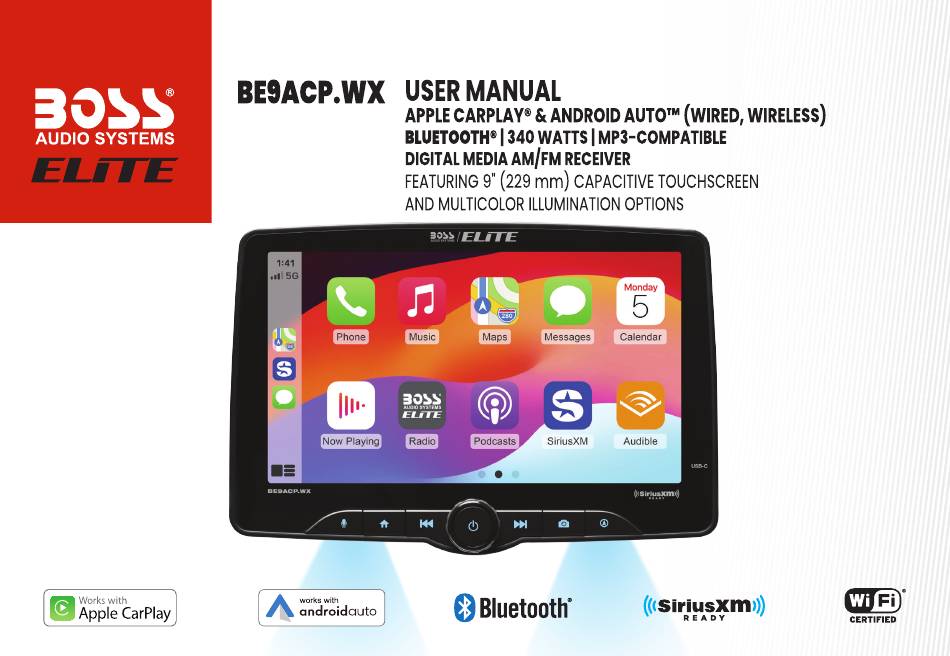

- Page 1 ®...
- Page 2 Thank you for choosing BOSS Audio Systems! Sign up for BOSS Audio Systems News and Promos by visiting us on the web at www.bossaudio.com. Be part of our community! Join us by signing up on the web at www.bossinsiders.com IMPORTANT! Complete the information below and keep for your records.
-
Page 3: Table Of Contents
Table of Contents Enable Bluetooth Connection ....... 17 Important Information SiriusXM® Radio Audio Streaming ............17 About this Manual............4 Preparation ..............11 Make a Call ..............18 Operation Warnings ..........4 SiriusXM Home Screen ..........11 Operation During a Call ........... 18 Installation Warnings .......... - Page 4 Table of Contents Underglow Brightness Control ......24 Display Positioning ............ 29 Set Sound Effects Installation Dimensions ........... 30 Sound Mode and Equalizer Setting ..... 21 Bluetooth Settings Volume Balance Setting ........... 21 Connections Crossover Frequency Setting ......... 21 Radio Settings Power and SWC Input Wiring .........
-
Page 5: Important Information
To understand how to properly use your new road conditions and abide by regulations over The IMPORTANT NOTE illustration denotes BOSS Audio Systems product, it is recommended information contained on the map display. important instructions for product features and to read this user manual in its entirety, and keep Follow traffic restrictions and circumstances limitations. -
Page 6: Screen Care
This may registered trademarks owned by Bluetooth SIG, cause distraction, preventing the driver to focus Inc. and any use of such marks by BOSS Audio on the road and potentially cause an accident. Systems is under license. Other trademarks The driver and passengers can be severely Apple CarPlay is a trademark of Apple Inc. -
Page 7: Basic Operation
Basic Operation What Comes in the Box 2x Release Keys 1x Mounting Strap Microphone with 3.5mm Main Unit with Display 1x Hex Bolt 2x Plain Washers 1x Hex Nut Plug and Sticky Base Removable Mounting Cage 1x Tapping Screw 1x Spring Washer 1x Rubber Grommet (M5 x 15mm PA) Wiring Harness SWC Adapter Cable... -
Page 8: Control Panel
Basic Operation Control Panel (Camera) (Voice assistant/Push-To-Talk) Quick access to camera view. Press to activate voice assistant. Enable Apple CarPlay, Android Auto (Navigation) or Bluetooth connection to use voice Quick access to navigation app. assistant. Enable Apple CarPlay or Android Auto to (Home) use navigation. -
Page 9: First Time Setup
Basic Operation First Time Setup Set date and time manually Set RDS/RBDS Radio When you turn on the unit for the first time or reset the unit, the initial setup page will appear. Select [MANUAL] to access time, date and time The RDS/RBDS (Radio Broadcast Data System) zone settings. -
Page 10: Home Menu Description
Basic Operation Home Menu Description USB button AM button Switch to audio/video/photo Switch to AM radio playback from a USB flash drive FM button Bluetooth button Switch to FM radio Switch to Bluetooth audio streaming from a mobile phone SiriusXM radio button AUX/AV-IN button Switch to SiriusXM Switch to audio/video playback... -
Page 11: Fm/Am Radio
FM/AM Radio Using FM/AM Radio Home Screen Preset a Radio Station Touch to tune to a station in auto seek mode. Touch and hold to switch Touch and hold a preset number in the top bar between auto and manual seek mode. of the display. -
Page 12: Siriusxm Radio
SiriusXM Radio Using SiriusXM Radio Check your Radio ID for activation. SiriusXM is where moments happen. It brings SiriusXM Home Screen you ultimate entertainment. The SiriusXM Radio ID is required for • The widest, deepest variety of music, ad-free. activation and can be found by tuning to Channel 0 as well as by looking on the label •... -
Page 13: Select A Channel
SiriusXM Radio Using SiriusXM Radio Preset a Channel Set Artist & Song Alerts Select a preset sound mode. Access alerts/category/channel list to enable Touch and hold a preset number in the top bar Step 1: Save as Alerts alert or select a channel. of the screen. -
Page 14: Parental Control
SiriusXM Radio Using SiriusXM Radio Step 2: Enable Alerts Parental Control Change Your Password You can change the password for the parental From the SiriusXM home screen, touch [Lists] This feature allows you to restrict access to any control. > [My Alerts] to access the alert list where SiriusXM channels, including those with mature the artist names and song titles are saved. -
Page 15: Apple Carplay
Thus, you can navigate, call, control • On your iPhone, enable Wi-Fi, and access you music and so more with hands-free control Settings > Bluetooth then select "BOSS on your mobile phone. AUDIO BE9ACP.WX" for Bluetooth pairing. Make sure to enable wireless CarPlay use For more details about Apple CarPlay, visit when prompted on your iPhone. -
Page 16: Arrange Your Carplay Apps
> CarPlay, select this unit's name from > Contents & Privacy Restrictions > Allowed from CarPlay or added in CarPlay. the device list (shown below). Then select Apps > CarPlay. Customize to access CarPlay apps. BOSS AUDIO BE9ACP.WX... -
Page 17: Android Auto
Settings > Bluetooth then select • Wired connection: Android 6.0 and later. Menu bar: Touch an app icon for quick "BOSS AUDIO BE9ACP.WX" for Bluetooth • Wireless connection: Android 11.0 and later access. pairing to enable wireless Android Auto use. -
Page 18: Bluetooth
Bluetooth Connection Streaming Audio Streaming IMPORTANT NOTE Before you can stream audio from your mobile Bluetooth on the unit is enabled only when device to this unit, make sure Bluetooth CarPlay or Android Auto is disabled. Make sure connection is made. your CarPlay or Android Auto is disabled for Bluetooth use. -
Page 19: Make A Call
Bluetooth Hands-free Call Voice Assistant (Push-To-Talk) Make a Call View Connection Status • To use a keypad during a call, touch Touch [Device] tab to display the paired devices. From the home menu, touch • To switch to private mode, touch . -
Page 20: Usb
USB Playback Audio Playback Video Settings You can play audio, video and photos stored on a USB flash drive. Make sure your USB flash drive During video playback, touch to access the In the audio playback interface, playback control is connected to the front USB-C port or rear is displayed. -
Page 21: Other External Devices
Other External Devices Audio/Video Input Camera Playback AV Cable Connection Make sure front/rear camera connection is correctly made. (P.35) Using audio/video cables (not included), connect From the home menu, touch the RCA inputs ("L-IN", "R-IN" and "V-IN") on the Manual Camera Trigger unit's back to the RCA outputs (yellow/white/ Audio and video input screen is displayed. -
Page 22: Set Sound Effects
Sound Settings Set Sound Effects From the home menu, touch [SETTINGS] > [SUB Filter]: Adjust the cutoff frequency for the Touch to adjust right and left volume [Audio] > [EQ] to access sound settings. subwoofer. Only the frequencies below the one balance until you are pleased with the sound you set will be received to reproduce sound. -
Page 23: General Settings
System Settings General Settings From the home menu, touch [SETTINGS] > [Time Zone]: Select a time zone in your current [SWC Learning Setup]: Select this option to location. access function programming if your vehicle [General] to access general settings. does not need a steering wheel interface/ [Daylight Savings Time]: Enable to adjust adapter for SWC connection. -
Page 24: Audio Settings
System Settings Audio Settings Startup Volume Setting From the home menu, touch [SETTINGS] > Initial volume will be the set volume if the set volume is less than the last used volume. [Audio] to access audio settings. [Main Volume]: Set a desired volume for main Initial volume will be the last used volume if audio (radio and media play) when the unit the set volume is greater than the last used... -
Page 25: Display Settings
System Settings Display Settings Bluetooth Settings Automatic Dimming Control From the home menu, touch [SETTINGS] > Make sure CarPlay or Android Auto is not [Display] to access display settings. connected to enable unit's Bluetooth. [Auto Dimming Control]: When enabled and the From the home menu, touch [SETTINGS] >... -
Page 26: Radio Settings
System Settings Radio Settings Camera Settings RDS/RBDS Information Display From the home menu, touch [SETTINGS] > From the home menu, touch [SETTINGS] > [Radio] to access radio settings. [Camera] to access camera settings. [RT DATA DISPLAY]: Enable or disable a service that allows FM stations to display additional information (i.e. -
Page 27: Parking Assist Guidelines Setting
System Settings Camera Settings System Information Parking Assist Guidelines Setting Resetting the Unit From the home menu, touch [SETTINGS] > [About] to access system information. [Parking Assist Guidelines]: Disable the parking [Factory Reset]: Reset the unit to the factory assist guidelines built in the unit if your rear settings. -
Page 28: Unit Installation
Unit Installation Dash Mounting Before you mount the unit into the dash, complete the wiring connection (P. 31 to 36). WARNING Dash board See the section "Installation Warnings". (P.4) Unit secured with the mounting strap Single DIN Opening Installation Mounting strap This section explains the installation if your vehicle has a single DIN dash opening (2"... -
Page 29: Double Din Opening Installation
Unit Installation Dash Mounting Display Assembly Double DIN Opening Installation Slide the unit into the dash opening. Then fix Detach the Display the unit by fastening the L-brackets around This section explains the installation if your As illustrated below, hold down two release the dash opening with proper screws (not vehicle has a double DIN dash opening (4"... -
Page 30: Display Positioning
Unit Installation Display Positioning Adjust Positioning of the Display Tilt the Display Up and Down Tilt the Display Left and Right The display can be vertically tilted by 25 The display can be horizontally tilted by 15 Adjust the display angle so that your view is degrees. -
Page 31: Installation Dimensions
Unit Installation Installation Dimensions Unit Dimensions Display Mounting Dimensions A: 1.85" (47mm) B: 6.79" (172.5mm) J1 (with maximum tilting angle at highest C (Overall depth): 6.59" (167.5mm) position): 0.59" (15mm) G1: 3.54" (90 mm) G2: 1.85" (47 mm) D (Installation depth): 5.93" (150.5mm) J2 (with maximum tilting angle at lowest position): 1.34"... -
Page 32: Connections
Connections Power and Steering Wheel Control (SWC) Input Wiring Front View WARNING 10 9 8 3 2 1 WIFI See the section "Installation Warnings". (P.4) L-IN R-IN IMPORTANT NOTE SUB1 SUB2 V-IN RADIO Unused input/output wires need to be insulated 15A ATO Fuse with tape, heat shrink, or crimp connectors. -
Page 33: Speaker Wiring
Connections Speaker Wiring Front View CAUTION 10 9 8 3 2 1 WIFI Do not chassis ground any speaker wire leads. L-IN Only use 4-8 Ω speakers. R-IN DO NOT use 1-3 Ω speakers. SUB1 SUB2 V-IN Do not bridge any of the channels. They are only RADIO to be wired in stereo mode. -
Page 34: Parking Brake Wiring
Connections Parking Brake Wiring Front View IMPORTANT NOTE 10 9 8 3 2 1 WIFI Video and photo playback can be enabled L-IN only when the parking brake switch wire is connected to your vehicle, and the vehicle's R-IN parking brake is engaged. SUB1 SUB2 V-IN... -
Page 35: Wireless/Gps/Av/Radio
Connections Wireless/GPS/AV/Radio L-IN R-IN FM/AM antenna (not included) SUB1 SUB2 V-IN RADIO External AV source Multi-channel/ Monoblock amplifier Pre-amp audio output AV input Front out (FL & FR) / Rear out (RL & RR) / Audio in (L-IN & R-IN) Subwoofer out (SUB1 &... -
Page 36: Sxm/Mic/Camera/Carplay/Android Auto
Connections SiriusXM/Mic/Camera/CarPlay/Android Auto SiriusXM-Connect SiriusXM Vehicle Tuner Microphone Input Rear Camera Input WIFI Front Camera Input L-IN L-IN IDLM R-IN R-IN SUB1 SUB1 SUB2 SUB2 V-IN V-IN RADIO RADIO Apple CarPlay/ Android Auto To operate your rear camera, you also need Connect a SiriusXM-Connect Vehicle Tuner Connect the lightning cable or USB cable of to connect camera power and reverse signal. -
Page 37: Hands-Free Mic Installation
Connections Hands-Free Mic Installation Placement The unit comes with a hands-free microphone with sticky base and 10ft wire. The location of the microphone can vary from different vehicles due to layout, interior materials, etc. shaded areas are the recommended locations for best microphone performance. Items to look for before placement: •... -
Page 38: Troubleshooting
Troubleshooting Important! If you have checked the points described in the list and the problem persists, turn off the vehicle for ten seconds then turn it back on again. If the problem still persists after restarting the unit, reset the unit by using a small pin to press the reset button on the bottom side of the display. If you still have problems after applying suggestions above, please contact our Customer Service for further assistance. - Page 39 Troubleshooting SiriusXM Radio "No Signal" appears. • Verify that your vehicle is outdoors with a "Check Antenna" appears. clear view of the sky. • Verify that the SiriusXM magnetic base • Check that the antenna cable is connected to antenna is mounted on a metal surface on the SirirusXM-Connect Vehicle Tuner.
-
Page 40: Specifications
Specifications General Sub filter.......... 50/80/120/160 Hz Sub level ............+1 to +14 dB Front USB port ............USB-C Input voltage..........8.5 – 18 VDC Media/Charging (1.5A) 14.4 VDC (Nominal) Pre-amp output....2x Front (4V, full range) 2x Rear (4V, full range) Rear USB port.....USB-A (2.0, High Speed) Current consumption ......... - Page 41 0424 V:1L...
- Page 43 Introduction This camera is designed for use as a front view or rear-facing backup camera, and mounted neatly behind your license plate. When installed with any of our camera-capable head units, the camera view can be automatically triggered when shifting into reverse or manually triggered by selecting the camera button from the head unit home screen.
- Page 44 Wiring • Follow two steps described below to install this product as a front camera or a rear camera. • The rear camera view automatically turns on when reversing. Ensure you connect the “ ” wire on your head unit to the vehicle’s Reverse Input reverse light for reverse trigger.
- Page 45 Mounting The camera is designed for mounting behind the license plate of your car through the screw holes on the license plate. No drilling hole is required. Remove the license plate lamp. Through the opening of the license plate lamp, run the camera’s cable from the outside into the inside of the car.
- Page 46 Image Setting • To remove the on-screen parking guidelines, cut open the white wire loop which splits from the camera’s cable. Otherwise, keep the white wire loop uncut. • If the camera image appears reverse, cut open the blue wire loop which splits from the camera’s cable.
- Page 47 0523...
