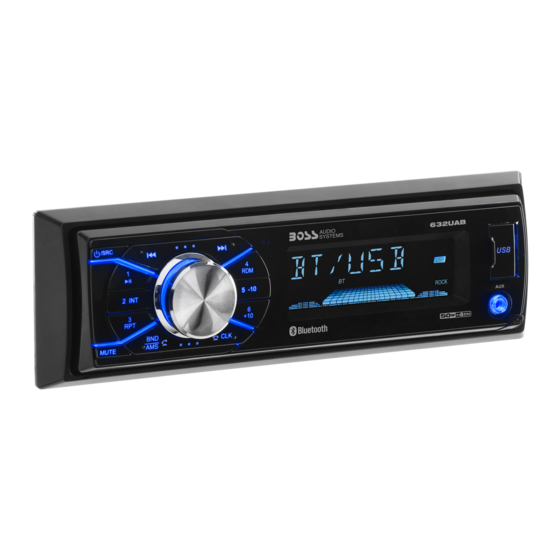

Summary of Contents for Boss 632UAB
-
Page 2: Table Of Contents
CONTENTS Precautions..............................1 ..........................1 Lithium Battery Cell Warnings Use Caution s ............................1 Installation ..............................2 Installation Procedures .......................... 2 Installation Opening..........................2 Wiring Connections ..........................3 Uninstall the Main Unit ........................... 4 Control Panel Button Locations ........................5 Operation .............................. -
Page 3: Precautions
PRECAUTIONS Lithium Battery Cell Warnings • Cell leakage may cause damage to the remote control. • Do not throw cells into as this may cause an explosion. • Keep battery cells out of reach of children. Use cautions • • Some MP3/WMA files may not be playable. -
Page 4: Installation
INSTALLATION Installation Procedures First complete the electrical connections and then check for correctness. Installation Opening 2.05 inch 7.20 inch MOUNTING SLEEVE This unit can be installed in any dashboard Having an opening as shown above . Insert mounting collar into the dashboard and bend the mounting tabs out with a screwdriver. -
Page 5: Wiring Connections
INSTALLATION(CONT.) - Only use speakers with 4 ohms impedance. - Do not attach the control panel to the chassis before wiring is complete. - The maximum current of the auto antenna is 200mA. Wiring Connections WIRING DIAGRAM Purple + Fuse Rear Right Speaker Power B+ (Yellow) Purple/Black -... -
Page 6: Uninstall The Main Unit
INSTALLATION(CONT.) Uninstall the Main Unit Remove the metal strap from the main unit. Remove the plastic trim out from the main unit. Insert a bracket key into the left and right side of the main unit and draw the unit out of the mounting sleeve. -
Page 7: Control Panel Button Locations
CONTROL PANEL BUTTON LOCATIONS 632UAB /SRC 2 INT 5 -10 MUTE REMOVE PANEL RESET OPERATION 1.POWER/SRC to turn off the unit. RADIO, BT, USB&CARD , AUX IN,modes (if there are USB and SD card inside the unit). radio and Aux. When the user... -
Page 8: Next/Previous Track
OPERATION 8. CLK Press the CLK button once to display the real time, With time appearing on the display.Press and hold CLK button for more than 2 seconds until the time flashes. You can adjust the HOUR and MINUTE by pressing the button and button respectively and press the CLK button to switch the HOUR and... -
Page 9: Track Search
OPERATION 14. MUTE flash on the LCD 15. USB PORT 16. AUX IN JACK 18. RESET To reset all parameters to factory default values. Press the button to flip down the control panel form the head unit and remove the control panel,then use a subject with a sharp point end to thrush the RESET hole. -
Page 10: Bluetooth Operation
To begin pairing, enable BT mode on your mobile phone. When the phone the car audio system, the BOSS AUDIO name will be displayed. Choose the BOSS AUDIO from the device list to pair and connect with the car audio system. Upon the BT logo will stop... -
Page 11: Remote Control
REMOTE CONTROL Button Names and Locations Power button BAND or button >|| or 1 button + 10 or 6 button INT (intro) or 2 button MUTE or DEL button - 10 or 5 button RPT (repeat) or 3 button AMS (automatic music search) or 9 button LOUD (loudness) or 8 button CLK (clock) or button... -
Page 12: Troubleshooting
TROUBLESHOOTING A lot of static in broadcast Connect the battery cable to the terminal that is always live. -
Page 13: Specifications
SPECIFICATIONS General Power supply Requirement : DC 12V Maximum power output : 50W X 4CH Speaker impedance : 4 - 8 Ohm Unit Dimensions(WxHxD) : 7.0 X 2.0 X 3.8 inch Weight : 1.54 Lb (0.7 kg) Fuse : 15 A RADIO Frequency Range USA / EUROPE: 87.5 MHz - 107.9 MHz / 87.5 MHz - 108.0MHz... - Page 14 632UAB 1014...
Need help?
Do you have a question about the 632UAB and is the answer not in the manual?
Questions and answers
how to set FM stations
To set FM stations on the Boss 632UAB:
1. Press the BND/AMS button repeatedly to cycle through FM bands (FM1, FM2, FM3).
2. To search manually: Long press the FF(▶▶) or FB(◀◀) button for more than 2 seconds to move step by step through frequencies.
3. To auto search: Short press the FF or FB button to automatically search for the next strong station.
4. To store stations: Press the BND/AMS button to save the 6 strongest stations into memory for that band.
Stations are displayed as F1, F2, or F3 depending on the FM band selected.
This answer is automatically generated
Music will not play on usb slot
Music may not play on the USB slot of the BOSS 632UAB if the USB flash drive exceeds 32 GB in size, as the unit supports files only up to 32 GB. Additionally, the file format may not be compatible, or the USB drive may not be properly connected.
This answer is automatically generated
