poly-planar ME60BT User Manual

poly-planar
Marine Audio Systems
Introduction:

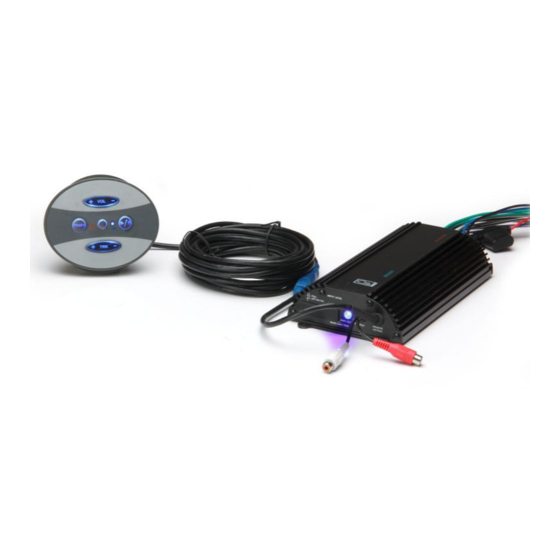

The ME60BT is a four channel, 120 Watts RMS Bluetooth wireless audio
amplifier, capable of delivering up to 30W RMS per channel. It has a compact,
water resistant design that allows for flexible mounting possibilities. The control
keypad is designed to withstand installation in the gas zone of a portable spa and
is equally suited for use in a marine environment.
The unit accepts either audio streamed via Bluetooth connection or hard wired
input via RCA input. The waterproof control pad is easily mounted as the body of
the keypad is threaded and the large mounting nut is tightened against the back
side of the mounting surface.
Uses:
To add up to four loudspeakers or two popup speakers and a subwoofer
to a portable spa
As a stand-alone system amplifier for any audio source (Mp3 player or
standard audio system)
Features:
Powers up to (8) 4ohm speakers
Internal distortion limiting circuits
Dedicated Subwoofer gain level control
External waterproof control pad included
Water resistant design for spa or marine use
Rear channels switchable from full range to powered sub out.
ME60BT Bluetooth Amplifier
————————————————————————————
PO Box 409 Hanover, MD TEL (410) 761-4000 www.polyplanar.com
1
