Introduction:

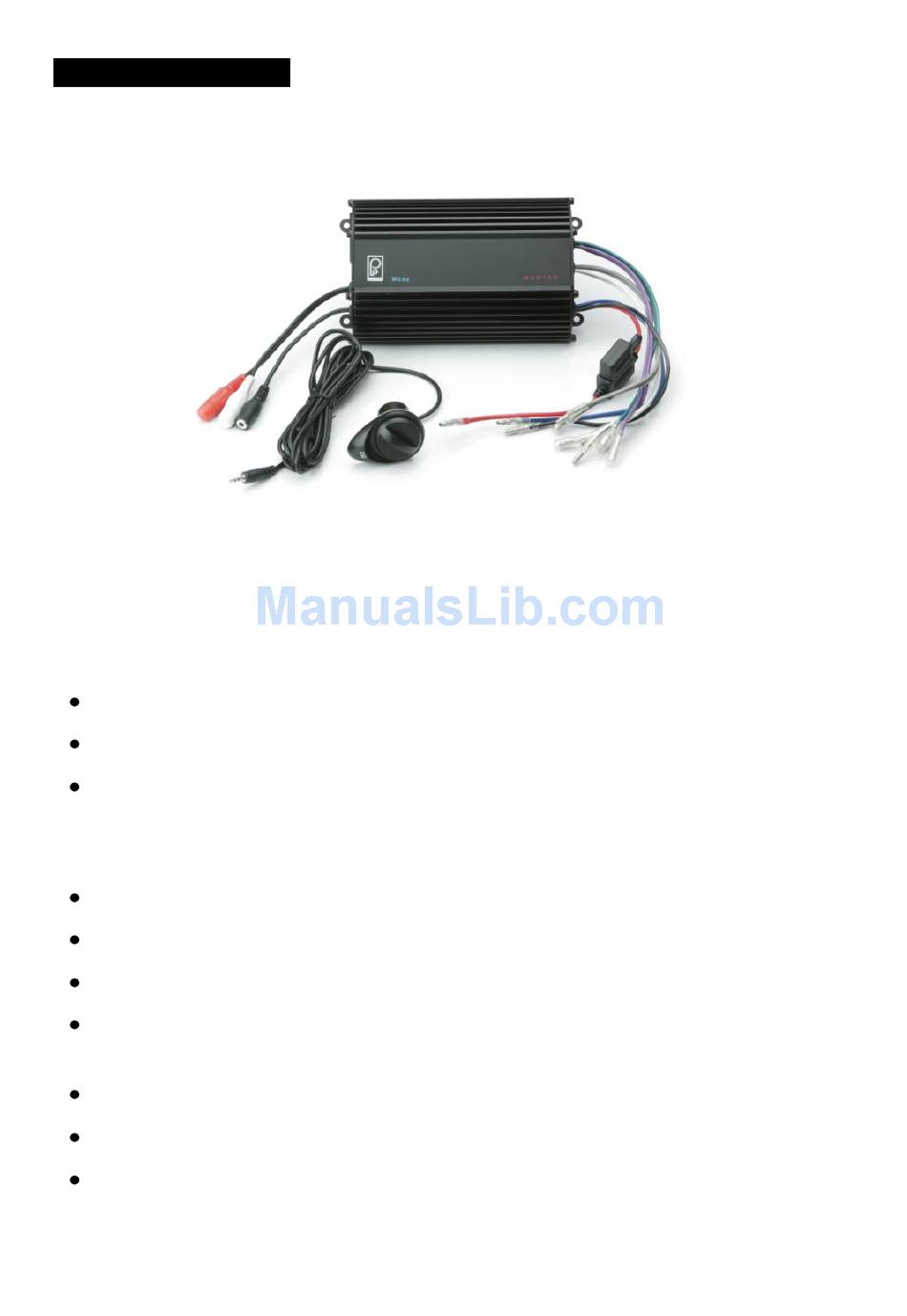

The ME-60 is a 4 channel audio amplifier capable of delivering up to 30W RMS
per channel. It's compact, waterproof design allows for flexible mounting
possibilities, and makes it simple to expand the audio system capabilities for any
vehicle.
Uses:
To add additional loudspeakers to a current audio system
To provide amplification for a separate audio zone
As a stand-alone system amplifier for any audio source (Mp3 player or
standard audio system)
Features:
Powers up to 8, 4 ohm loudspeakers
Internal distortion limiting circuit prevents harsh distortion
Accepts line level, or speaker level input
Low Pass Filter switch to optimize rear channels for either full range
speakers or a subwoofer
Gain level control to match output to main system
Supports optional external volume and power on/off control
Water resistant design for confident marine use
ME-60 Expansion Amplifier
————————————————————————————
PO Box 409 Hanover, MD TEL (410) 761-4000 www.polyplanar.com
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for poly-planar ME-60
Summary of Contents for poly-planar ME-60
- Page 1 PO Box 409 Hanover, MD TEL (410) 761-4000 www.polyplanar.com Introduction: The ME-60 is a 4 channel audio amplifier capable of delivering up to 30W RMS per channel. It’s compact, waterproof design allows for flexible mounting possibilities, and makes it simple to expand the audio system capabilities for any vehicle.
-
Page 2: Installation Instructions
ME-60 Expansion Amplifier ———————————————————————————— Marine Audio Systems PO Box 409 Hanover, MD TEL (410) 761-4000 www.polyplanar.com INSTALLATION INSTRUCTIONS Mounting the ME-60: 1) Choose a mounting location that is well ventilated. The Amplifier generates significant heat when operating at high power levels. - Page 3 ME-60 Expansion Amplifier ———————————————————————————— Marine Audio Systems PO Box 409 Hanover, MD TEL (410) 761-4000 www.polyplanar.com Mounting the Volume Control: 1) Choose a mounting location with a flat surface the size of the volume control body 2) There must be at least 1.73” (44mm) of clearance behind the mounting area 3) Drill a 1.00”...
- Page 4 Marine Audio Systems PO Box 409 Hanover, MD TEL (410) 761-4000 www.polyplanar.com Connecting the ME-60 Power and Speakers: 1) The Black and Red power wires should be connected to the vehicle battery or main circuit breaker panel using heavy gauge wire (AWG #16 or lower).
- Page 5 RCA patch cables. In this case the amplifier volume will be determined by the volume setting of the source component. If the receiver does not have line level outputs, the ME-60 can be connected to the speaker outputs, however line level is preferred due to superior noise and distortion performance.
- Page 6 ME-60 Expansion Amplifier ———————————————————————————— Marine Audio Systems PO Box 409 Hanover, MD TEL (410) 761-4000 www.polyplanar.com Input connections with Volume control: 6) For operation with the external volume control, connect the amplifier inputs to the PRE-AMP FIXED/LINE OUT of your receiver using shielded RCA patch cables.
- Page 7 SPEAKER (in) position. 9) The low Pass Filter switch allows the user to optimize bass performance in the case a subwoofer is connected to channels 3 and 4. Poly-Planar recommends use of the Poly-Planar MS55 compact box subwoofer for excellent bass response.
- Page 8 ME-60 Expansion Amplifier ———————————————————————————— Marine Audio Systems PO Box 409 Hanover, MD TEL (410) 761-4000 www.polyplanar.com Specifications: Speaker Impedance ……………………….… 2 – 8 ohms Output Power (2 ohm load) ………………… 30 W RMS per channel (4 ohm load) ………………… 20 W RMS per channel Frequency Response ………………………..
-
Page 9: Warranty Information
This warranty covers normal consumer use only. In no event shall Poly Planar be liable for special, incidental, or consequential damages. To obtain service under this warranty, please call Poly-Planar for a RETURN AUTHORIZATION NUMBER. poly-planar, inc... - Page 10 ME-60 Expansion Amplifier ———————————————————————————— Marine Audio Systems PO Box 409 Hanover, MD TEL (410) 761-4000 www.polyplanar.com...
- Page 11 ME-60 Expansion Amplifier ———————————————————————————— Marine Audio Systems PO Box 409 Hanover, MD TEL (410) 761-4000 www.polyplanar.com...
