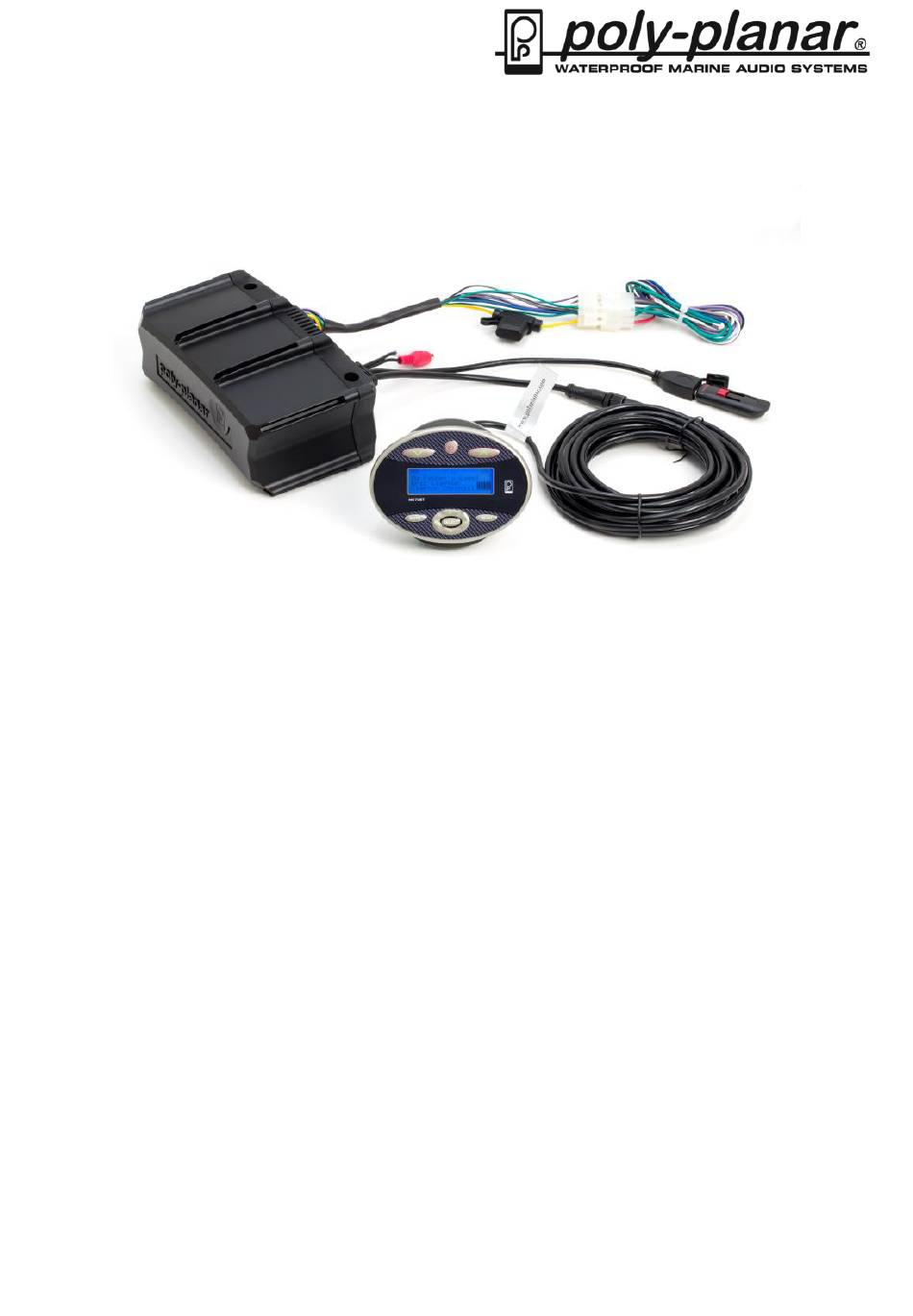

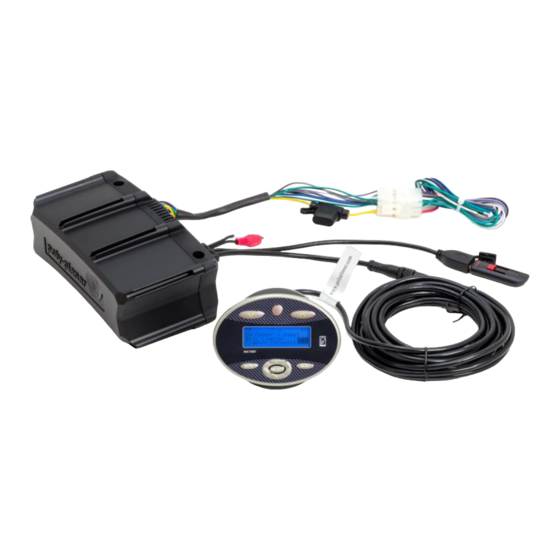

ME70BT IPX6 Marine Amplifier with Keypad Display
FEATURES
- 200-Watt 4x50W Amplifier
- Waterproof design IPX6
- USB Charging
- USB Audio Player
- A2DP player (AVRCP 1.4)
- Graphic Display Wired Remote
- 2 Zones with Low and High pass filters
- Balance and fade control for zones
- Drives 8, 4 or 2 Ohm speakers
- BT3.0HS/BT4.0 EDR
- 4.5" Remote size
- Silicon rubber sun/dust cover included
ME70BT MANUAL
- RCA Auxiliary Audio Input
- 10 EQ presets
- Line-in player
- Amp NMEA 2000 Compatible
- Remote control interface
- Software Field upgradeable by USB
- Full metadata display
- 2 Zones with individual volume and EQ
- Configurable Subwoofer channels
- 100 meter Bluetooth range
- 2.4" LCD with adjustable backlight
Version 1.0
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for poly-planar ME70BT
Summary of Contents for poly-planar ME70BT
- Page 1 Version 1.0 ME70BT MANUAL ME70BT IPX6 Marine Amplifier with Keypad Display FEATURES - 200-Watt 4x50W Amplifier - RCA Auxiliary Audio Input - Waterproof design IPX6 - 10 EQ presets - USB Charging - Line-in player - USB Audio Player - Amp NMEA 2000 Compatible - A2DP player (AVRCP 1.4)
-
Page 2: Table Of Contents
T A B L E O F C O N T E N T S Installation Wiring Diagram Basic Operation USB Operation Bluetooth Operation AUX In Operation Troubleshooting Technical Specifications... -
Page 3: Installation
I N S T A L L AT I O N Mounting the Amplifier: 1) Choose a mounting location that is well ventilated. The Amplifier generates significant heat when operating at high power levels. 2) It is preferable to mount the unit such that the ventilation fins are vertical or facing upward. - Page 4 Keypad Sun Cover KEYPAD 2.05” (52mm) Drill 2.72” or 2 ¾” (69mm) MOUNTING SURFACE MOUNTING NUT...
-
Page 5: Wiring Diagram
W I R I N G D I A G R A M AUX IN POWER/SPEAKER WIRES KEYPAD CONTROL … Wiring Details: Use the wired plug end (Pigtail) provided to make power and speaker connections according to the diagram below. Using this connector will make it easy to disconnect the amplifier for adding additional features or service. - Page 6 (Blue wire does not connect to anything) ME70BT MS56 Subwoofer or can also connect to an additional range speakers Wire Color Function B+ (+12VDC) Green w/stripe Rear Left Speaker- Green Rear Left Speaker+ BLANK BLANK White w/stripe Front Left Speaker-...
- Page 7 Notes: • Use the included plug/wire bundle to connect to the power source and speakers. • The Red and Black power wires should be 16AWG or larger depending on the length to the battery. NEVER operate the unit without the proper power and ground wire. •...
-
Page 8: Basic Operation
B A S I C O P E R AT I O N 1 – Power Button – press to turn on the unit. Press and hold to turn off the unit 2 – Volume down - Press button to decrease volume level 3 –... - Page 9 LEFT - Goes back in menu - Rewind song when press and hold - Previous song when pushed in player DOWN - Navigates Down in Menu RIGHT - Goes forward in menu - Fast Forward song when pressed hard - Next song when pushed in player 7 –...
- Page 10 your desired setting and press SELECT button to confirm. Volume – for setting a default volume Balance – use this to balance your right or left speaker EQ Presets – use this to set your desired equalizer setting - Off – set filter to off Filter - High Pass Filter –...
-
Page 11: Usb Operation
Once converted, the ME70BT Amp is ready to be connected to NMEA 2000 bus via male to male NMEA stub connector (sold separately). NMEA stub connector (sold separately) Once connected, the ME70BT Amp is ready to be controlled by applicable NMEA 2000 MFD’s... -
Page 12: Bluetooth Operation
Bluetooth (BT) mode. On your Bluetooth music device – Turn on or enable Bluetooth feature then open Bluetooth setting for pairing. Choose “Poly-Planar” from the list of available Bluetooth link. Once connected, you can now start playing your favorite music from your Bluetooth music device. -
Page 13: Aux In Operation
The head unit supports A2DP wireless streaming audio from a Bluetooth music device to Poly-Planar unit. A U X I N O P E R AT I O N This unit can be connected to any portable music devices such as MP3 Player or smartphone devices through the AUX IN located at the back of the unit. -
Page 14: Technical Specifications
Unit blows CAUSE: Red wire touching chassis ground fuses ACTION: Check for pinched wire CAUSE: Speaker wires touching chassis ground ACTION: Check for pinched wire CAUSE: Incorrect fuse rating ACTION: Use fuse with correct rating T E C H N I C A L S P E C I F I C AT I O N S NOTE: Specification &...
