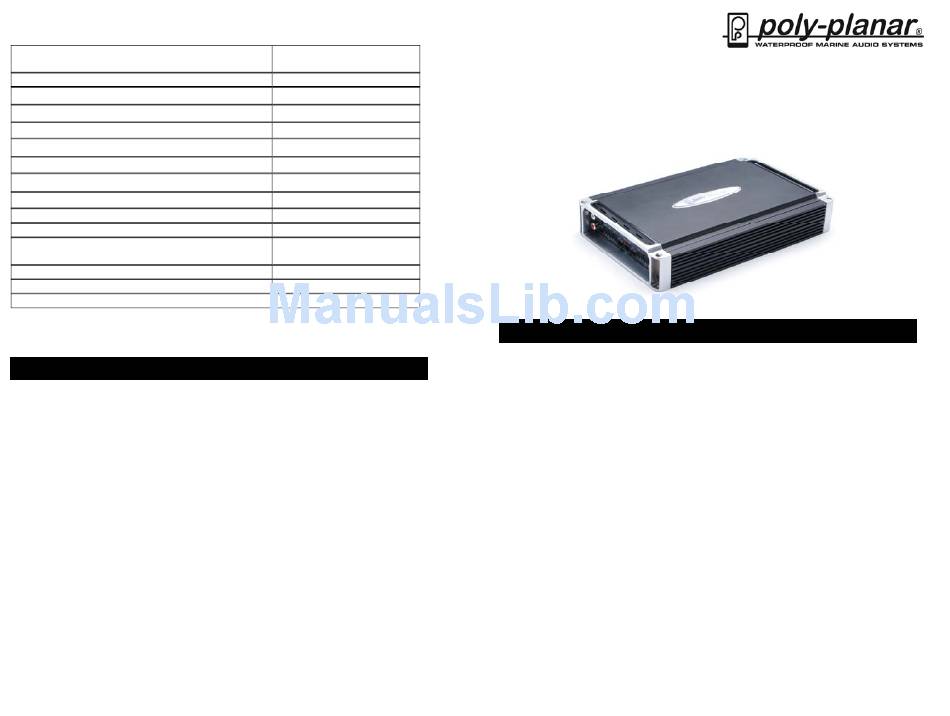

poly-planar ME-400D Owner's Manual

OUTPUT POWER (max) @ 14.4V / 4Ω / 2
Channel
Distortion (T.H.D)
Signal to Noise Ratio
Channel Separation
Input Sensitivity
LOW PASS FILTER / slope
HIGH PASS FILTER / slope
FUSE RATING
DIMENSION ( L x W x H )in/mm
Nominal Current draw:100W/ 4 OHM
Max current draw
NOTE: Specification & design subject to change without notice for
improvements.
WA R R A N T Y I N F O R M A T I O N
This unit is warranted to be free of defects in material and workmanship for a
period of one year. Warranty is subject to proper installation and operation
within the published specifications. Except as provided below, Poly Planar
will repair or replace, at its discretion, any product returned prepaid to our
facility and determined to be defective. Poly Planar is not liable for
consequential damages
LIMITS OF LIABILITY
Poly Planar warranty does not cover damage occurred in transit, accident,
abuse, misuse, negligence, fire, flood, lightning or unauthorized service. This
warranty assumes no responsibility for damages incurred during installation of
this equipment. This warranty covers normal consumer use only. In no event
shall Poly Planar be liable for special, incidental, or consequential damages.
To obtain service under this warranty, please call Poly-Planar for a RETURN
AUTHORIZATION NUMBER.
800 W x 2 CH
<0.03%
102dB
56dB
200mV - 6.0V
50 Hz - 5000Hz/12dB
20Hz - 4000Hz/12dB
25A x 3
11"/280mm x
6.7"/170mm x 1.7"/45mm
40A
90A
poly-planar, inc.
Maryland USA
(410) 761-4000
www.polyplanar.com
8
ME-400D OWNER'S MANUAL
4 CHANNEL CLASS D POWER AMP
P R E C A U T I O N S : R E A D F I R S T !
•
•
The negative battery terminal must be disconnected before any
electrical connections are made.
•
If after reading the directions you feel uncomfortable about
installing the amplifier in your vessel, or not equipped or competent
to do so, you should have the amplifier installed by an authorized
installer
•
Be sure to choose a location that provides substantial ventilation for
the amplifier. The location chosen should provide at least 2 inch of
clearance above the amplifier for adequate ventilation.
•
If the amplifier is to be mounted vertically be sure that it is in a place
where adequate air will flow along the length of its heat sink fins for
cooling.
•
NEVER mount the amplifier up side down, this will cause the heat to
rise back into the amplifier causing thermal shutdown or possible
permanent damage.
•
Be sure to mount the amplifier to a strong, solid surface which will not
give way under the stress of waves pounding the hull.
•
Make sure that the mounting screws will not penetrate through the
hull or into wiring or control cables.
•
NEVER ground the speaker leads and NEVER allow the speaker leads
to come in contact with each other. The speaker wire should be at
least 16 gauge or lower.
•
NEVER operate the amplifier without the proper power and ground
wire 10 gauge minimum.
