EnGenius ECB1221R
Universal Repeater Quick Start Guide
Step 1A: PC Network Adapter setup for Windows XP (Vista and 7 please skip to 1B)
· [Start Menu] → [Control panel] → [Network].

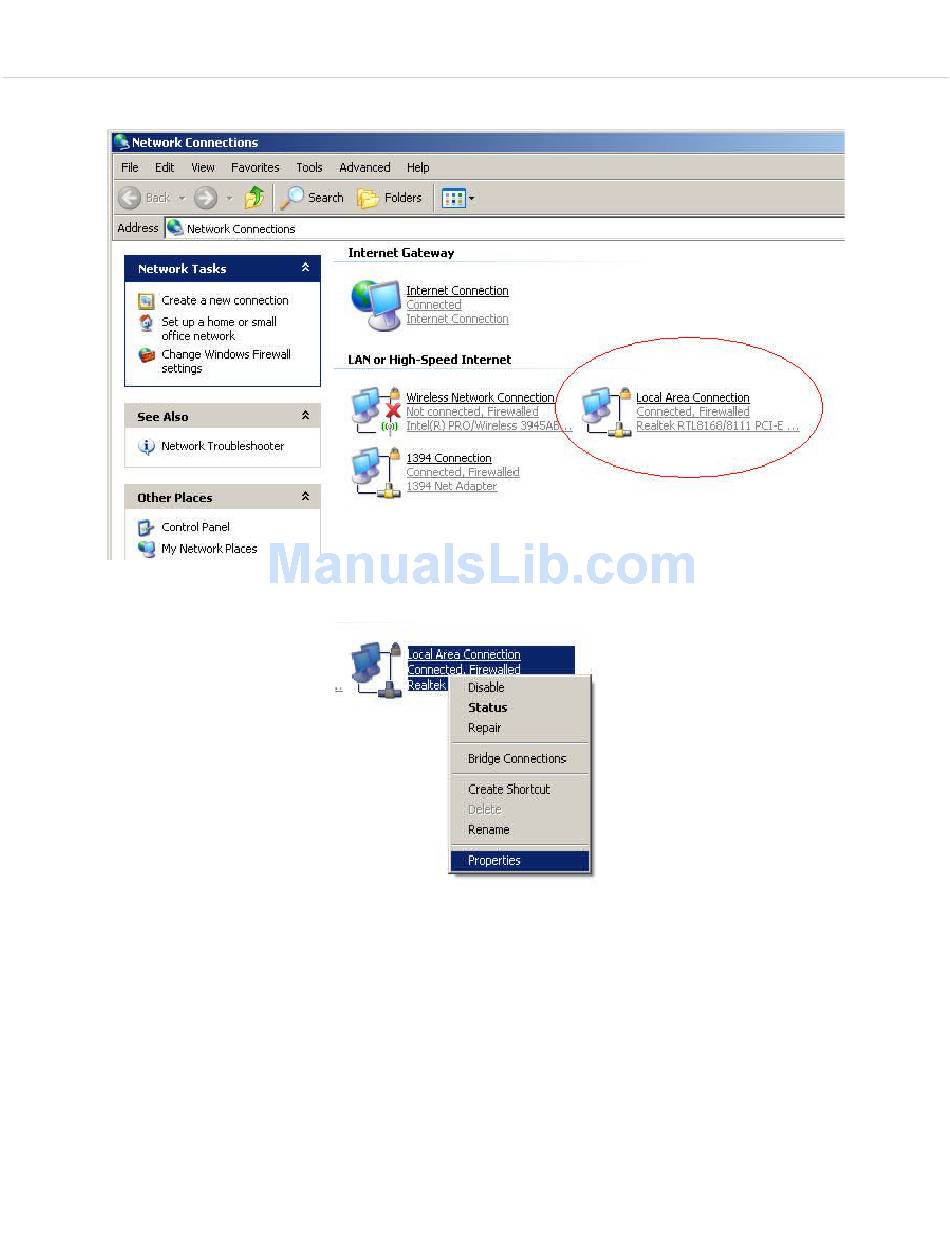

· Select [Local Area Connection]) icon => select [properties]

Advertisement

loading

Related Manuals for EnGenius ECB1221R

Summary of Contents for EnGenius ECB1221R

  • Page 1 EnGenius ECB1221R Universal Repeater Quick Start Guide Step 1A: PC Network Adapter setup for Windows XP (Vista and 7 please skip to 1B) · [Start Menu] → [Control panel] → [Network]. · Select [Local Area Connection]) icon => select [properties]...
  • Page 2 EnGenius ECB1221R Universal Repeater Quick Start Guide · [Internet Protocol (TCP/IP)] → [Properties].
  • Page 3 EnGenius ECB1221R Universal Repeater Quick Start Guide - Please select [Use the following IP address] and [Use the following DNS server address]. IP address: 192.168.1.5 Subnet mask: 255.255.255.0...
  • Page 4 EnGenius ECB1221R Universal Repeater Quick Start Guide Step1B: PC Network Adapter setup for Windows Vista (Windows 7 is similar) - [Start Menu] → [Control panel] → [Network and Sharing Center].
  • Page 5 EnGenius ECB1221R Universal Repeater Quick Start Guide - [Manage Network Connection]...
  • Page 6 EnGenius ECB1221R Universal Repeater Quick Start Guide - [Local Area Connection] → [Properties]...
  • Page 7 EnGenius ECB1221R Universal Repeater Quick Start Guide - [Internet Protocol Version 4 (TCP/IPv4) → [Properties]...
  • Page 8 EnGenius ECB1221R Universal Repeater Quick Start Guide - Please select [Use the following IP address] and [Use the following DNS server address]. IP address: 192.168.1.5 Subnet mask: 255.255.255.0...
  • Page 9 EnGenius ECB1221R Universal Repeater Quick Start Guide Step 2: Connect your ECB 1221R to your computer. Open a browser and go to the following address: 192.168.1.1 with the default user name: admin and password: admin...
  • Page 10 EnGenius ECB1221R Universal Repeater Quick Start Guide Step 3: [Operation Mode] → [AP] → [Apply Change]...
  • Page 11 EnGenius ECB1221R Universal Repeater Quick Start Guide Step 4: [Basic Setting] → [Enable Universal Repeater Mode] → Type your repeater SSID at [SSID] (can be different) → [Channel Number] (must be the same as the repeated one) → Type the SSID you want to...
  • Page 12 EnGenius ECB1221R Universal Repeater Quick Start Guide Step 5: If your repeated network is secured, all the security settings must be the same. [Security] → [Encryption] → [WPA Cipher Suite] (If suitable) → [WPA2 Cipher Suite] (If suitable) → [Pre-shared Key] (Same as the repeated one) → [Apply Changes]...
  • Page 13 EnGenius ECB1221R Universal Repeater Quick Start Guide Step 6: Go back to step 1. At the last, please select both [Obtain an IP address automatically] and [Obtain DNS server address automatically]. Then [OK]...
