EnGenius EOR7550 Quick Start Manual

EOR7550
Dual Radio Multi-Function Repeater
____________________________________________________________________________________
EOR7550 equips with two powerful independent RF interfaces which
support 802.11a/b/g and 802.11b/g/n. With certified IP‐65 protection, it is
designed to deliver high reliability under harsh outdoor environment.
Built‐in advanced multi‐functions provide flexibility in constructing
scalable WiFi networks for all possible applications. With two individual
interfaces, each can be configured into 6 different modes with maximum of 18
combinations. With 802.11n support, EOR7550 offers bandwidth up to 300Mbps
to accommodate heavy traffic services such as multimedia streaming.
Establishing backbone network using 802.11a ensures stability and reduces
interference while 802.11b/g offers great compatibility to all wireless clients.
EOR7550 provides wide‐range of authentication and encryption standards
(including WEP, WPA, WPA2, TKIP/AES and IEEE 802.1X) to enforce maximum
security. Furthermore, friendly security management user interface reduces
configuration complexity. EOR7550 is a true carrier‐grade product which is
____________________________________________________________________________________
IP Address Configuration
The default IP address of the device is
192.168.1.2. In order to log into this device, you
must first configure the TCP/IP settings of your
PC/Notebook.
1. In the control panel, double click Network
Connections and then double click on the
connection of your Network Interface
Card (NIC). You will then see the following
screen.
2. Select Internet Protocol (TCP/IP) and
then click on the Properties button. This
will allow you to configure the TCP/IP
settings of your PC/Notebook.
3. Select Use the following IP Address radio
button and then enter the IP address
(192.168.1.21) and subnet mask
(255.255.255.0). Ensure that the IP
address and subnet mask are on the same
subnet as the device.
4. Click on the OK button to close this
window, and once again to close LAN
properties window.
Logging In
1. To configure the device through the
web‐browser, enter the IP address of the
device (default: 192.168.1.2) into the
address bar of the web‐browser and
press Enter.

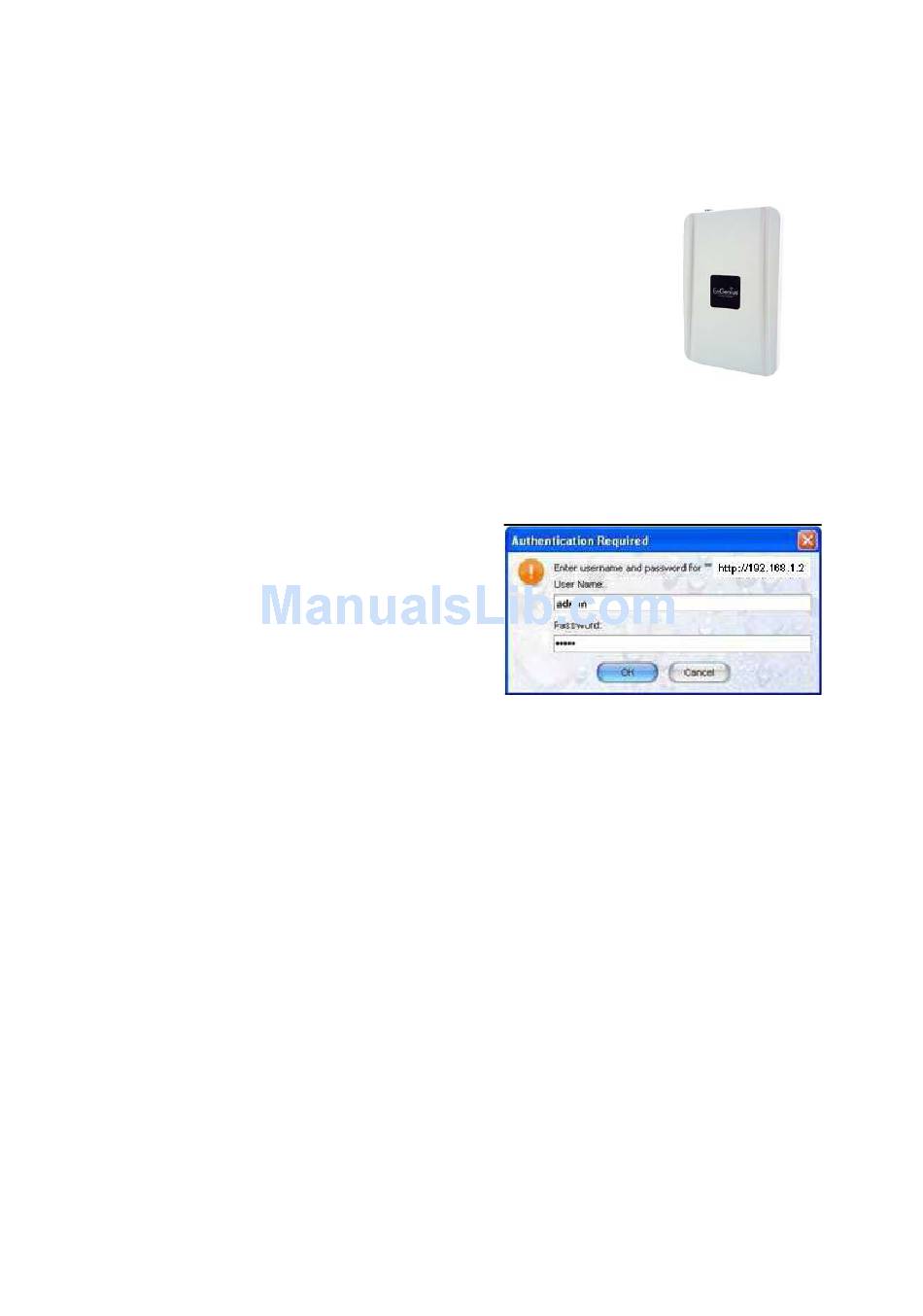

2. After connecting to the IP address, the
web‐browser will display the login page.
Specify admin as the default User Name
and Password, and then click on the Login
button.
4Gon www.4Gon.co.uk info@4gon.co.uk Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299
guaranteed to fulfill any business proposals.
Quick Start Guide
2. After connecting to the IP address, the
web‐browser will display the login page.
Specify admin as the default User Name
and Password, and then click on the Login
button.
Administration
1. Under Management section, click on the
[Admin] link. This option allows you to
modify the default password for the device.
For security it is highly recommended for
security reasons.
2. Old Password: please type in admin
3. Password: Specify a password into this field
and then re‐type the password into the
Confirm New Password field. Then click on
the Apply button.
4. Click on the [Apply] button to save the
changes.
