Summary of Contents for Briteq Tornado 7
-
Page 3: Before Use

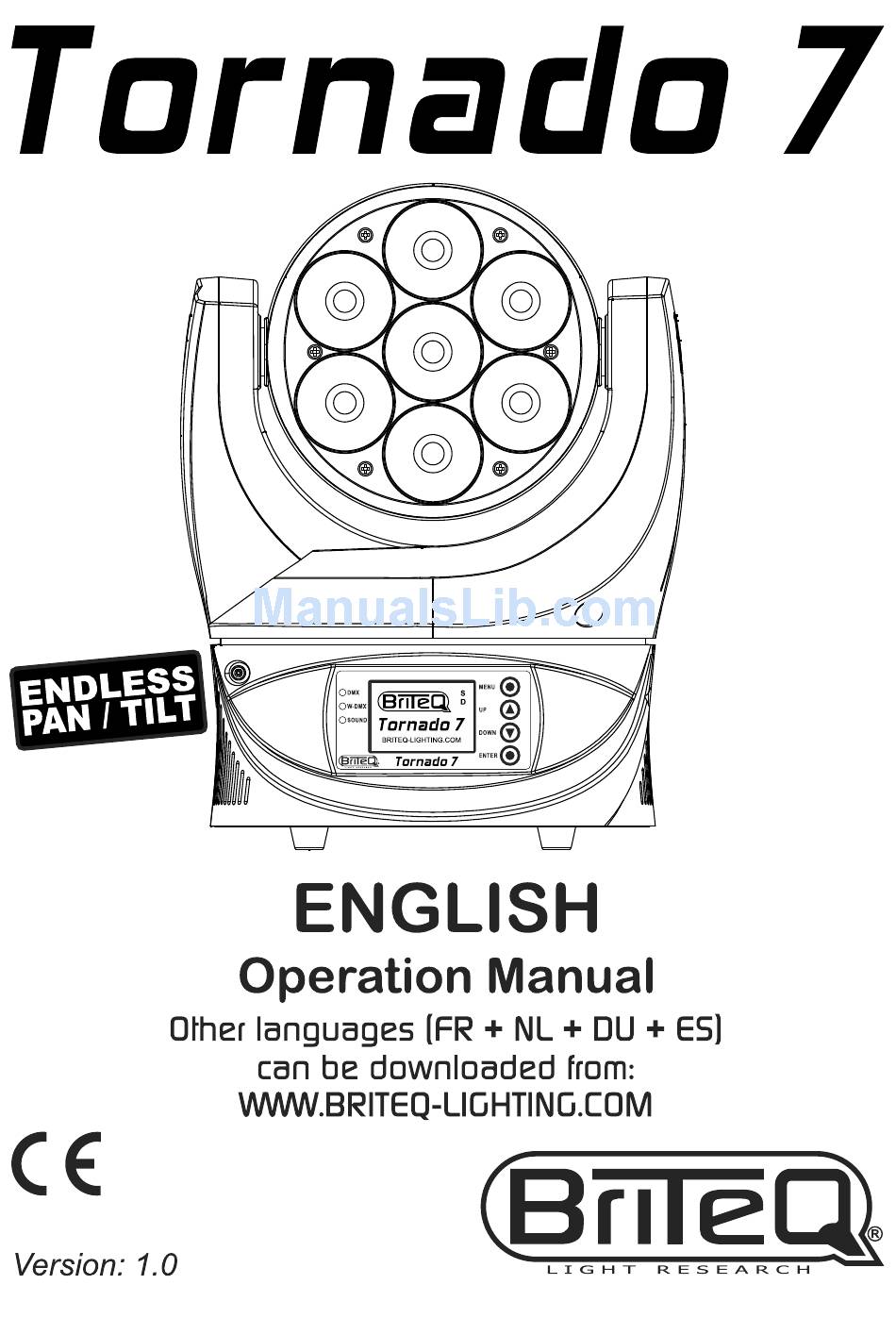

ENGLISH USER MANUAL OPERATION MANUAL Thank you for buying this BRITEQ product. To take full advantage of all possibilities and for your own safety, please read these operating instructions very carefully before you start using this unit. FEATURES This unit is radio-interference suppressed. This product meets the requirements of the current European and national guidelines. -
Page 4: Safety Instructions
The housing and the lenses must be replaced if they are visibly damaged. Please use the original packing when the device is to be transported. Due to safety reasons it is prohibited to make unauthorized modifications to the unit. BRITEQ 2/12 TORNADO 7 ®... -
Page 5: Control Panel
Always press the ENTER button to confirm. To return to a previous menu, always use the ESC. button. Note: After 20 seconds the display will automatically return to normal mode without any change. BRITEQ 3/12 TORNADO 7 ®... - Page 6 Select “Pan Tilt Invert” and press ENTER. Use DOWN / UP buttons to select ON or OFF. Press the ENTER button to save. To return without any change or go to a previous menu, press the ESC. button. BRITEQ 4/12 TORNADO 7 ®...
- Page 7 DMX-chain. Saves a lot of work! Select “Parameter Transm” on the master. Press the ENTER button to confirm. To return without any change or go to a previous menu, press the ESC. button. BRITEQ 5/12 TORNADO 7 ®...
- Page 8 TILT Rotation: use the DOWN/UP buttons (000 to 255) to test the this function. PAN/TILT Speed: use the DOWN/UP buttons (000 to 255) to test the this function. To return to a previous menu, press the ESC. button. BRITEQ 6/12 TORNADO 7 ®...
- Page 9 Delete all scenes together: use DOWN / UP buttons to select “DeleteAllScene” and press ENTER. (Be careful: ALL scenes will be lost and cannot be recovered!) To return to a previous menu, press the ESC. button. BRITEQ 7/12 TORNADO 7 ®...
-
Page 10: Overhead Rigging
The device should be well fixed using the included omega bracket (B) and a certified clamp (C). The clamp is not included but is available from www.Briteq-lighting.com (order code: 2671). A free-swinging mounting is dangerous and may not be considered! ... - Page 11 Linear adjustment for Blue in Zone 4 White 000-255 Linear adjustment for White in Zone 4 Zone Master 000-255 Master dimmer for Zone 4 White 000-255 Master dimmer for White (17CH mode only) 000-255 Pan (0~360° or 0~720°) BRITEQ 9/12 TORNADO 7 ®...
- Page 12 Config Settings: set to Slave (“S” in the upper right corner of the display) Operation Mode: set to “DMX Operation” = Yes (“D” in the upper right corner of the display) BRITEQ 10/12 TORNADO 7 ®...
-
Page 13: Maintenance
Press the SETUP-button on the Wireless transmitter: the STATUS-led on the transmitter and the W-DMX led on the TORNADO 7 will blink fast to indicate that the “pairing” process has started. Once the both are connected, the W-DMX led on the TORNADO 7 is lit. -
Page 14: Specifications
IP rating: IP20 (indoor use only) Size: see drawing below Weight: 4,36 kg The information might be modified without prior notice You can download the latest version of this user manual on our website: www.briteq-lighting.com BRITEQ 12/12 TORNADO 7 ®... - Page 16 WWW.BRITEQ-LIGHTING.COM Copyright © 2014 by BEGLEC NV ‘t Hofveld 2C ~ B1702 Groot-Bijgaarden ~ Belgium Reproduction or publication of the content in any manner, without express permission of the publisher, is prohibited.
