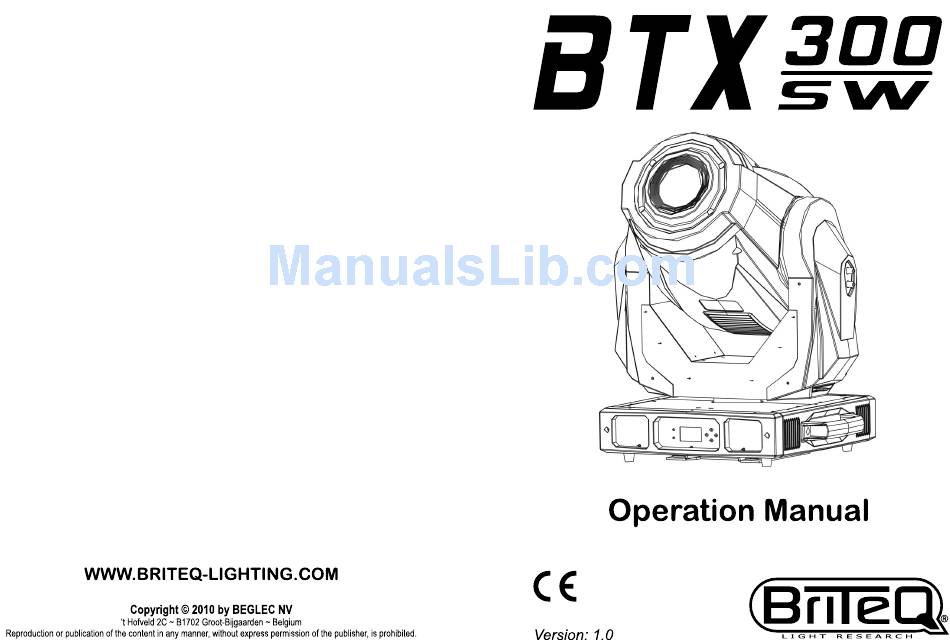

Briteq BTX 300 SW Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Briteq BTX 300 SW

Summary of Contents for Briteq BTX 300 SW

  • Page 2 DANGER ~ GEVAAR ~ GEFAHR ~ PELIGRO ~ PERIGO WARNING: DANGER! never expose the lens to direct sunlight, even for a short period. This may damage the light effect or even cause fire! ATTENTION: DANGER! n'exposez jamais la lentille directement aux rayons de soleil, même pendant un bref instant.

  • Page 3: Safety Instruction

    Never turn on and off the unit time after time. able to support a weight of 10 times of the unit’s weight without any harming  The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly deformation. damaged. BRITEQ® BTX-300SW BRITEQ® BTX-300SW...

  • Page 4: Technical Specification

    - Gobo Wheel 1: 7 rotating, indexable, easily replaceable gobos + open. - Gobo Wheel 2: 8 metallic gobos + open. - Easy calibration and maintenance by magnetic home positioning. - Module design for easy assembly and service. BRITEQ® BTX-300SW BRITEQ® BTX-300SW...
  • Page 5 ,8 Fuse (T 10 A): 5.Tilt unlock button (Gray) Protect the unit from damage of over current. 6.Pan lock 7.Handle 8.Base Antenna (optional) The head can be locked for transportation protection-the tilt lock button (4) is pressed and BRITEQ® BTX-300SW BRITEQ® BTX-300SW...

  • Page 6: Gobo And Lamp

    5. Tighten the screws (A) to fix the lamp cover. 6. Turn the screws (B) to adjust the lamp position be sure it is located in the center of the reflector for the best projection. BRITEQ® BTX-300SW BRITEQ® BTX-300SW...

  • Page 7: How To Set The Unit

    In the event of disconnecting with mains power, press UP button for one minute to enter into menu mode. Press MENU button or let the unit idle one minute to exit. The main functions are shown below（the grayed boxes are preset settings）: BRITEQ® BTX-300SW BRITEQ®...

  • Page 8: Dmx Functions

    MENU button back to the last menu or let the unit idle one minute to exit menu mode. Yes (blackout while changing gobo), press ENTER button to store. Press MENU button back to the last menu or let the unit idle one minute to exit menu mode. BRITEQ® BTX-300SW BRITEQ®...

  • Page 9: Lamp Setting

    UP and DOWN button to select Auto (fans speed adjust automatically) or High (fans run in high speed), press ENTER button to store. Press MENU button back to the last menu or let the unit idle one minute to exit menu mode. BRITEQ® BTX-300SW BRITEQ®...

  • Page 10: Fixture Test

    Select Factory Setting, press ENTER button to confirm, the fixture will reset to factory Select Color/CMY, press ENTER button to confirm, use UP and DOWN button to settings and exit menu mode. select Yes (the unit will run built-in program to reset color and CMY to their home BRITEQ® BTX-300SW BRITEQ® BTX-300SW...
  • Page 11 Enter offset mode, Select Color, press ENTER button to confirm, the present position will ENTER button to store. Press MENU button to exit. blink on the display, use UP and DOWN button to offset the value from -128 to 127, press BRITEQ® BTX-300SW BRITEQ®...

  • Page 12: Control By Universal Dmx Controller

    3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+) 5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+), Pin4, Pin5 not used. BRITEQ® BTX-300SW BRITEQ® BTX-300SW...
  • Page 13 Please refer to the following diagram to address your DMX512 channel for the first 4 units. Unit 1 Unit 2 Unit 3 Unit 4 Channel mode Address Address Address Address 22 channels 29 channels BRITEQ® BTX-300SW BRITEQ® BTX-300SW...
  • Page 14 22 Channels mode 2: BRITEQ® BTX-300SW BRITEQ® BTX-300SW...
  • Page 15 29 Channels mode: BRITEQ® BTX-300SW BRITEQ® BTX-300SW...

  • Page 16: Update Software

    C. One of the channels is not working well 1. The stepper motor might be damaged or the cable connected to the PCB is broken. 2. The motor’s drive IC on the PCB might be out of condition. BRITEQ® BTX-300SW BRITEQ®...

  • Page 17: Maintenance

     Clean with soft cloth and use normal glass to clean fluid.  Always dry the parts carefully.  Clean the external optics at least every 20 days. Clean the internal optics at least every 30/60 days. BRITEQ® BTX-300SW...
