Summary of Contents for Briteq BT-Tracker
-
Page 3: Before Use

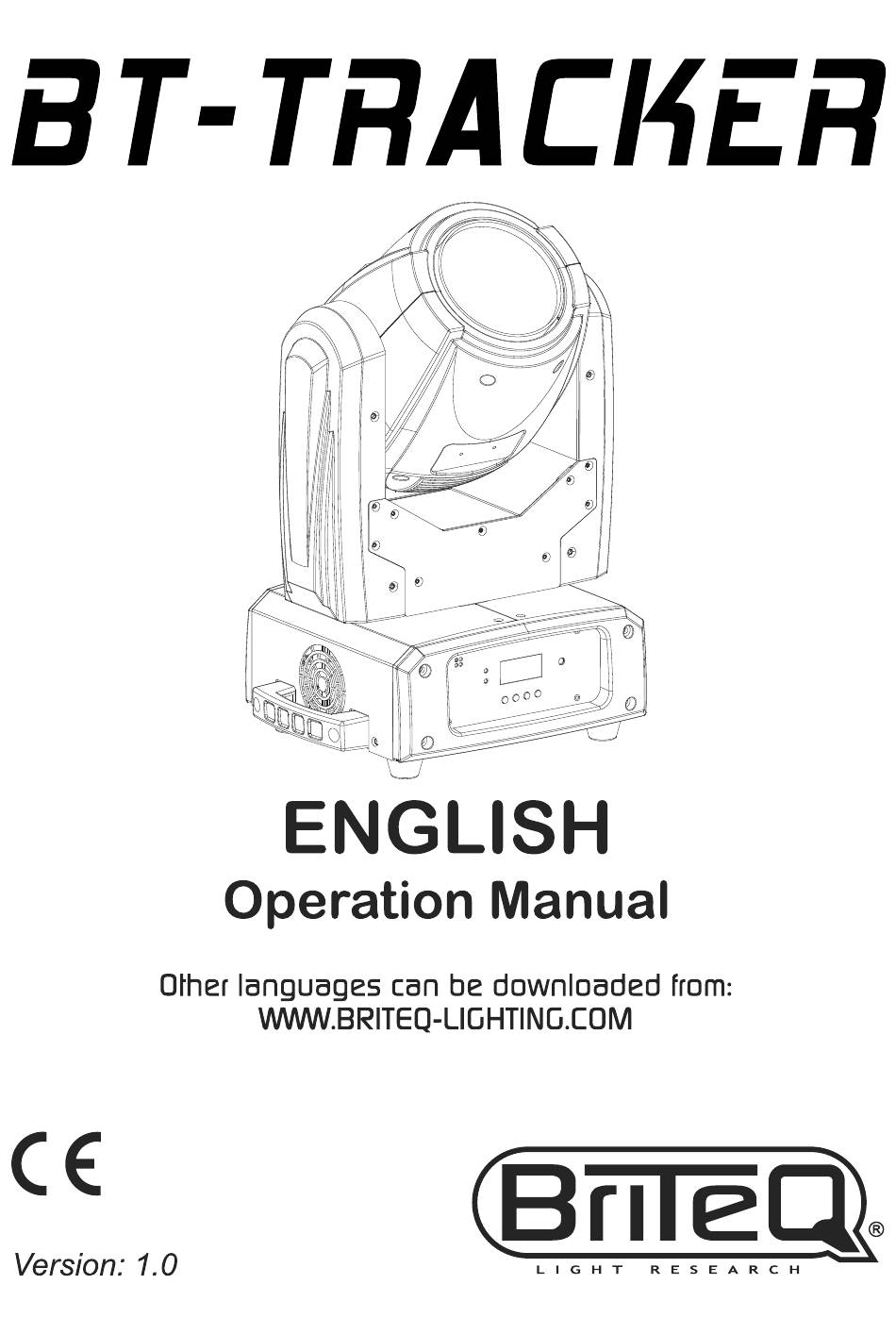

ENGLISH USER MANUAL OPERATION MANUAL ® Thank you for buying this Briteq product. To take full advantage of all possibilities and for your own safety, please read these operating instructions very carefully before you start using this unit. FEATURES A super compact but very powerful moving beam projector based on the brand-new [SIRIUS HRI-100] discharge lamp from OSRAM! ... -
Page 4: Safety Instructions
Never repair a fuse or bypass the fuse holder. Always replace a damaged fuse with a fuse of the same type and electrical specifications! In the event of serious operating problems, stop using the fixture and contact your dealer immediately. BRITEQ 2/14 BT-TRACKER ®... -
Page 5: How To Set Up The Unit
Hint: Please check our website for special cable assemblies that contain both power (3x1.5mm² with Neutrik ® PowerCON ) and balanced signal (XLR 3pin) in one cable. Different lengths are available: 1.3m, 3m, 5m and 10m, very convenient! BRITEQ 3/14 BT-TRACKER ®... -
Page 6: Lamp Replacement
With these 2 actions you should be able remove the lamp. If you cannot remove the lamp, please check if it is not jammed: eventually change the position of the lamp a little as explained in Fig.3 BRITEQ 4/14 BT-TRACKER ®... -
Page 7: Overhead Rigging
3. Hang the fixture on the truss using the Omega clamp (B) and tighten well. 4. Fix the safety cable (D) through the safety eye (E) on the bottom of the base and wrap the safety cable around the truss. BRITEQ 5/14 BT-TRACKER ®... - Page 8 Use the ▲/▼ buttons to change the DMX512 address. Once the correct address shows on the display, press the [ENTER] button to select it. Press the [MENU] button for about 2 seconds to store the setting and to return to running mode. BRITEQ 6/14 BT-TRACKER ®...
- Page 9 [Pan Inverse] Normal: Panning movement is not inversed. Pan inversion: Panning movement is inversed Press the [MENU] button until [Pan Inverse] is shown on the display. Press the [ENTER] button, the display starts blinking. BRITEQ 7/14 BT-TRACKER ®...
- Page 10 Used to show the software version that is installed in the unit Press the [MENU] button until the display shows [Firmware Version]. Press the [ENTER] button to show the software version on the display. To go back to the functions press the [MENU] button. BRITEQ 8/14 BT-TRACKER ®...
-
Page 11: Offset Menu
Use the ▲/▼ buttons to select [No] (no reset) or [Yes] (reset the time). To go back to the functions press the [MENU] button. When all offset adjustments are done, press the [MENU] button for about 2 seconds to store them and to return to running mode. BRITEQ 9/14 BT-TRACKER ®... -
Page 12: Dmx Modes
072-087 Gobo5 088-103 Gobo6 104-119 Gobo7 120-135 Gobo8 136-151 Gobo9 152-167 Gobo10 168-183 Gobo11 184-199 Gobo12 200-215 Gobo13 216-231 Gobo14 232-247 Gobo15 248-255 AUTO gobo changing PAN/TILT SPEED 000-007 Hold AUDIO control slow → fast 008-255 BRITEQ 10/14 BT-TRACKER ®... - Page 13 016-019 Gobo4 020-023 Gobo5 024-027 Gobo6 028-031 Gobo7 032-035 Gobo8 036-039 Gobo9 040-043 Gobo10 044-047 Gobo11 048-051 Gobo12 052-055 Gobo13 056-059 Gobo14 060-063 Gobo15 064-068 Gobo1 Shaking 069-072 Gobo2 Shaking 073-076 Gobo3 Shaking 077-080 Gobo4 Shaking BRITEQ 11/14 BT-TRACKER ®...
-
Page 14: Maintenance
Always dry the parts carefully. Clean the external optics at least once every 30 days. Clean the internal optics at least every 90 days. Attention: We strongly recommend internal cleaning to be carried out by qualified personnel! BRITEQ 12/14 BT-TRACKER ®... -
Page 15: Specifications
(big model) Size: 279 x 225 x 401 mm Weight: 9,7 kg All information is subject to change without prior notice You can download the latest version of this user manual on our website: www.briteq-lighting.com BRITEQ 13/14 BT-TRACKER ®... - Page 16 = orange = aqua marine = green = light green = lavender = pink = yellow = magenta 10 = cyan 11 = CTO 260 12 = CTO 190 13 = CTB 8000 14 = blue BRITEQ 14/14 BT-TRACKER ®...
