IPSO WE 55 Instruction Manual
  1. Manuals
  2. Brands
  3. IPSO Manuals
  4. Washer
  5. WE 95
  6. Instruction manual
IPSO WE 55 Instruction Manual

IPSO WE 55 Instruction Manual

Technical specifications installation instructions operating instructions maintenance
Hide thumbs
Table of Contents

Advertisement

Quick Links

1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2
Instruction manual
WE 55, WE 73, WE 95
WE 110, WE 132, WE 165
Nieuwstraat 146 - B-8560 Wevelgem (Belgium)
Tel. 056/41 20 54 - Fax 056/41 86 74
Technical specifications
Installation instructions
Operating instructions
Maintenance

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WE 55 and is the answer not in the manual?

Questions and answers

Momar
April 25, 2025

Comment raccorder électriquement une machine ipso we73

User image 680bacad87f16
0
1 comments:
Mr. Anderson
May 12, 2025

To electrically connect an IPSO WE 73 machine:

1. Use the designated electrical connections labeled "G" on the machine.
2. Ensure the machine is grounded according to the instructions.
3. Shut off all power supplies before making the connection.
4. It is recommended that a qualified technician performs the installation.

Always follow safety instructions to avoid risk of electrocution.

This answer is automatically generated

0

Related Manuals for IPSO WE 55

Summary of Contents for IPSO WE 55

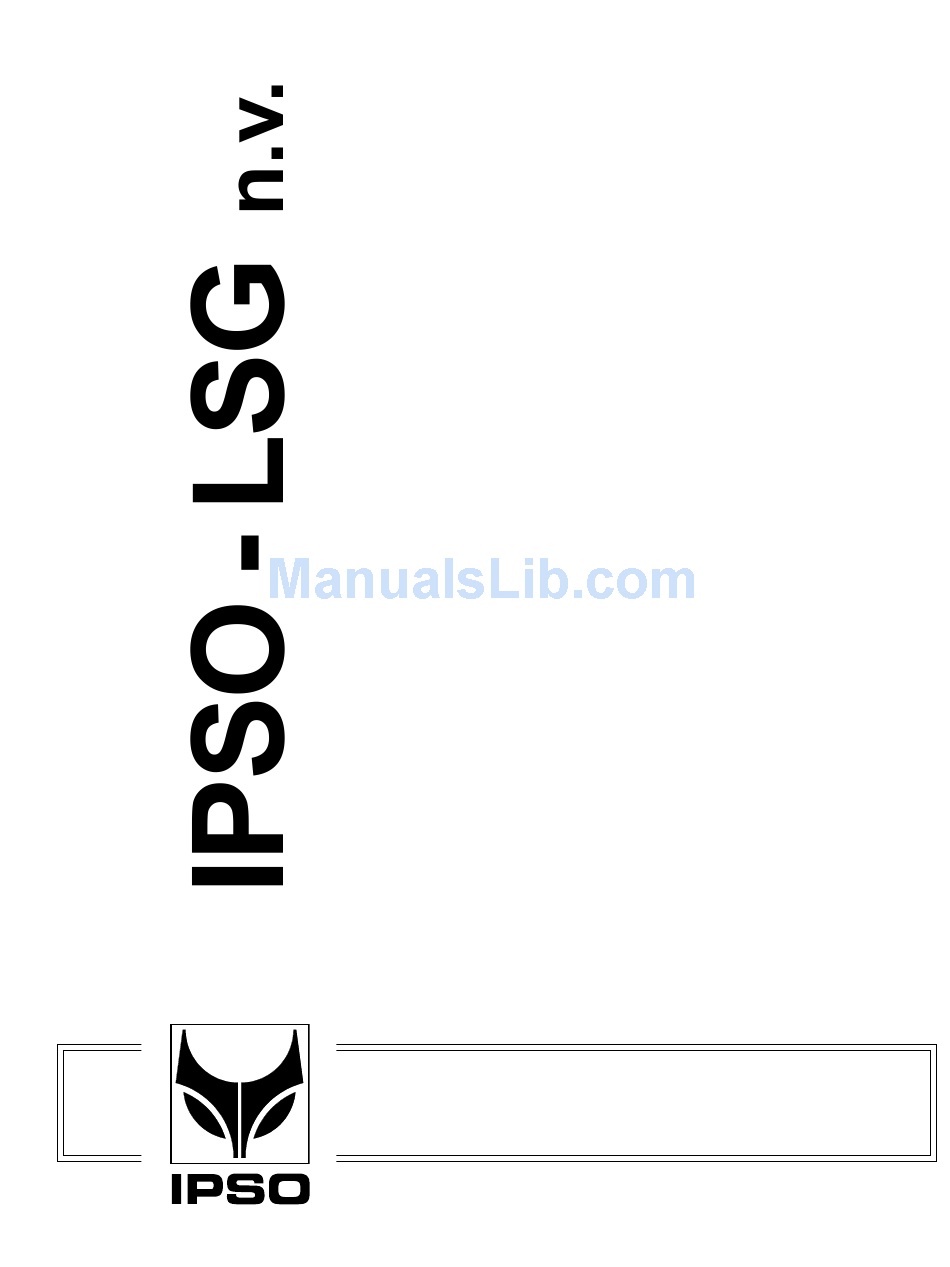

  • Page 1 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 WE 55, WE 73, WE 95 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2...

  • Page 2: Table Of Contents

    Contents 1 General safety instructions .............. 3 2 Technical data and dimensions ............4 Technical data ................4 Dimensions ..................6 3 Installation and connection ............. 8 Ground .................... 8 Anchoring ..................8 Water connection ................8 Water drain ..................9 Main power connection ..............

  • Page 3: General Safety Instructions

    General safety instructions Ignoring any of the safety instructions can cause serious perso- nal injury and can also cause damage to the linen or the machine Read the installation and instruction manual carefully before connecting the machine. It is recommended that the machine be installed by qualified technicians. The machine should be installed according to the installation instructions.

  • Page 4: Technical Data And Dimensions

    Technical data and dimensions Technical data WE 55 WE 73 WE 95 Capacity (dry weight) 1/11 5 kg 6,6 kg 8,6 kg 1/10 5,5 kg 7,3 kg 9,5 kg 6,1 kg 8,1 kg 10,5 kg C y l i n d e r...
  • Page 5 WE 110 WE 132 WE 165 Capacity (dry weight) 1/11 10 kg 12 kg 15 kg 1/10 11 kg 13,2 kg 16,5 kg 12,2 kg 14,5 kg 18,3 kg C y l i n d e r Diameter 650 mm 650 mm 650 mm Depth...

  • Page 6: Dimensions

    Dimensions WE55/73/95 A. Hard water connection 3/4" B. Warm water connection 3/4" C. Soft water connection 3/4" D. Electrical connection E. Electrical connection clamps F. Water drain G. Steam connection H. Ventilation soap dispenser...
  • Page 7 WE110/132/165 A. Hard water connection 3/4" B. Warm water connection 3/4" C. Soft water connection 3/4" D. Electrical connection E. Electrical connection clamps F. Water drain G. Steam connection H. Ventilation soap dispenser...

  • Page 8: Installation And Connection

    Installation and connection Surface The machine must be securely fixed on a flat surface (metal base, concrete or solid ground). The anchoring is to be done on the provided places (A) in the base. (See Dimensions 2) The machine must be placed entirely level. For easy maintenance it is recommen- ded to keep a minimal distance of 600 mm between the wall and the back of the machine.

  • Page 9: Water Drain

    The machine is equipped with a drain valve with 6/4" outer diameter (50 mm). Water drain This drain valve should be connected to the drain by means of the drain elbow which is delivered with the machine. The diameter of the main drain should be adapted to the water flow and the number of machines.

  • Page 10: Steam Connection

    Steam connection Machines with steam heating must have a steam valve between the steam installation and the machine. With direct steam injection into the machine 1. Steam pipe 2. steam cut-off valve 3/8" 3. Pipe coupling 3/8" 4. Steam filter 3/8" 5.

  • Page 11: Operating Instructions

    Operating instructions Machine with CAM-timer and 10 buttons Open the door Press the red button on the doorhandle and open the door. Fill the drum The machines have 5 wash programs. Sort the linen according to the quality and the allowed wash temperature. Remove all nails, coins, etc. that can damage the linen or the machine during the wash cycle.
  • Page 12 Choose temperature As an option, a thermometer or thermostat with 2 adjustable temperatures can be installed. The choice of temperature via the switch buttons can then be replaced by the input of T1/T2 - T2 = Highest adjustable temperature (Main wash) - T1 = Lowest adjustable temperature (Pre-wash) Start the machine Press the start button (6).
  • Page 13 Button “Soak” Choose a program (1...5) (Don’t press button 7) (Option!) - Press the pause switch so the light turns on. - Add detergent and start the machine. The bath is filled to high water level. A reduced wash action of 3 sec. wash and 12 sec.

  • Page 14: Machine With Cam-Timer And Coin Meter

    Machine with CAM-timer and coin meter Open the door Press the red button on the doorhandle and open the door. The machines have 5 wash programs. Sort the linen according to the quality and Fill the drum the allowed wash temperature. Remove all nails, coins, etc. that can damage the linen or the machine during the wash cycle.

  • Page 15: Start The Machine

    Start the machine Machine with token switch By inserting the token, the machine starts and the pilot light (A) on the fascia panel will light up. Machine with coin meter The amount necessary to start the program is indicated on the display. This total amount is reduced by the value of each inserted coin.

  • Page 16: Machine With Electronical Plc-9 Microprocessor And Start Button

    Overloading the machine can be the cause of low wash quality. Close the door Select program The machine has at least 6 programs (IPSO Belgium). Press the program selection button (SELECT) as many times until the desired program number appears: 1. Hot wash (2 baths)(40°/90°C)
  • Page 17 Choose temperature As an option, a thermometer or thermostat with 2 or 3 adjustable temperatures can be installed. - T3 = Highest adjustable temperature - T2 = Middle adjustable temperature - T1 = Lowest adjustable temperature Start the machine Press the start button. When the machine is started, the green pilot light on the fascia panel will turn off.
  • Page 18 Special functions By keeping the program select button (SELECT) pressed and then pressing the START/STOP button at the same time, it is possible to use special functions. After a while, the left decimal point starts to flash. (A) This means that the program will keep repeating the segment that is now active (Time stop).
  • Page 19 Special messages When starting the program and the door is not closed properly, “ cdo “ will appear (Close door). When starting the program and something is wrong with the water level switches, “ HLE “ (high level), “ LLE “ (low level) or alternating “SLE - tilt” (safety level) will appear.

  • Page 20: Technical Remarks

    Technical remarks Program time (Machine with CAM-timer) Code 10.1126 - 220 V (50Hz with brown CAM-timer) There are several possibilities according to cabling, microprocessor, type of heating, tempe- rature control, water level control, etc..For your information you can find the details of the programs for a machine with standard programs, boiler fed (without temperature control nor water level controls).

  • Page 21: Internal Connection Of The Electrical Heating

    Internal connection of the electrical heating Heating 3x220V 3x380V 4,2kw 3x1,4kw LC1D0901 LC1D0901 3x2kw LC1D0901 LC1D0901 3x3kw LC1D1810 LC1D0901 12kw 3x4kw ——— ——— LC1D0901 12kw 3x2kw LC1D253 LC1D090 3x2kw 15kw 3x2kw LC1D253 LC1D1810 3x3kw 18kw 3x3kw LC1D323 LC1D1810 3x3kw 21kw 3x3kw ———...

  • Page 22: Thermo-Magnetic Motor Protection

    Thermo-magnetic motor protection Autom. reset The thermic overload relay turns off in case of overloading. Because this relay is installed on automatical reset, after a while the motors are switched back on automatically. Installation and type of overload relay 220V Machine Type value...
  • Page 23 Installation of the cycle With the switches Dip4 up to and including Dip5 you can install the cycle price. price With the first three groups of 4 slide-switches you install respectively the hundreds, tens and units of the cycle price. In the last group it is possible to place a decimal point with the first two slide- switches.

  • Page 24: Maintenance Of The Machine

    Maintenance of the machine General maintenance Clean the entire cabinet of the machine regularly and remove all traces of soap, etc..Remove all detergent residue in the soap dispenser with hot water. Clean the door gasket and remove all detergents and other products. Shut off the main water, steam and power connections at the end of each day.

This manual is also suitable for:

We 176We 234

Table of Contents

Save PDF
