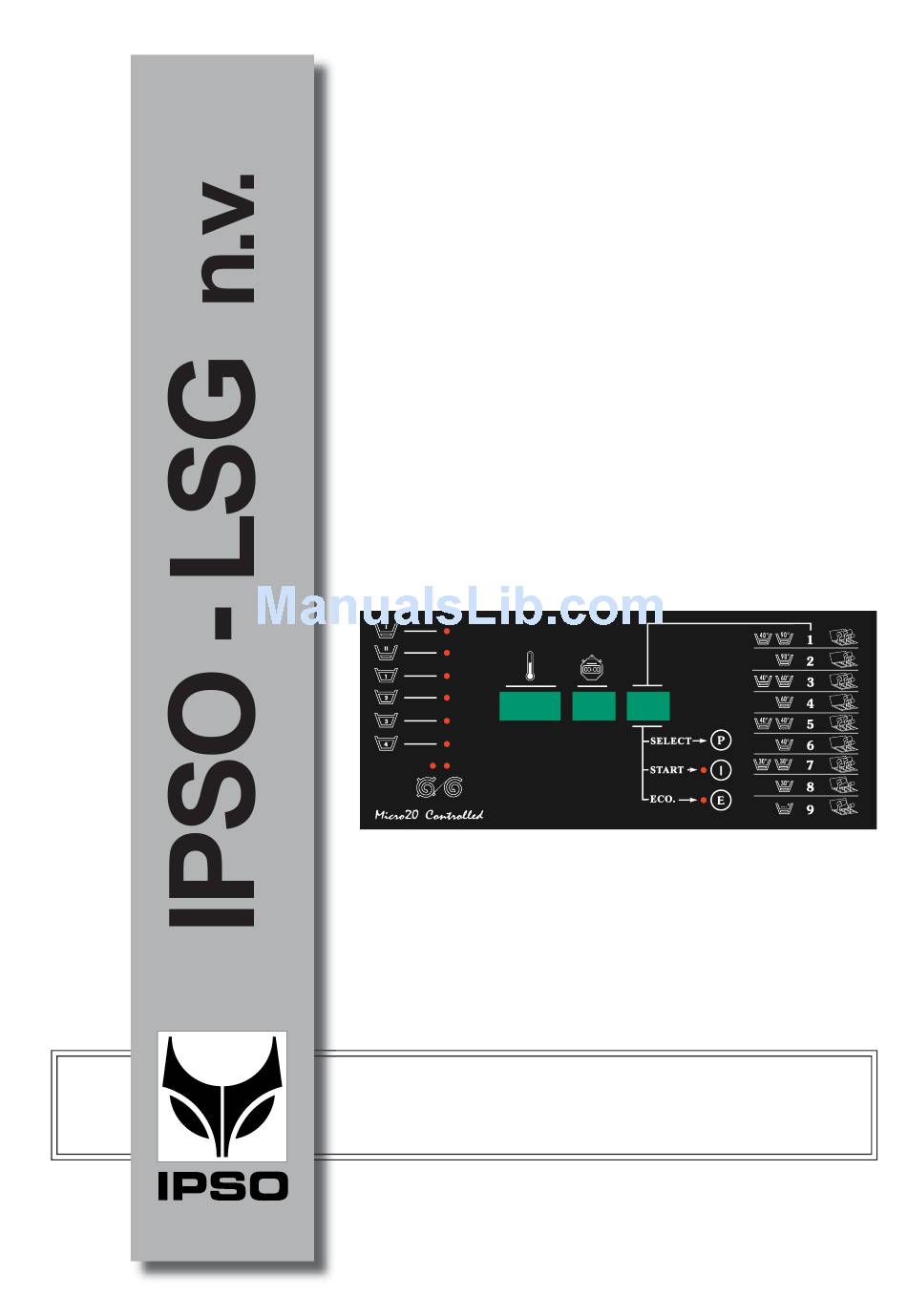

Page 1: Instruction Manual
Instruction manual HF150 HF185 HF234 Technical specifi cations Installation instructions Operating instructions Maintenance Nieuwstraat 146 - B-8560 Wevelgem (België) Tel. 056/41 20 54 - Fax 056/41 86 74 Part No. D0289... -
Page 2: Table Of Contents
Contents 1 General safety instructions ... 2 Technical data and dimensions ... Technical data ... Dimensions ... 3 Installation and connection ... Ground ... Removal of the transport safety ... Water connection ... Water drain ... Main power connection ... Liquid soap connection ... -
Page 3: General Safety Instructions
General safety instructions Remark: J These instructions surely cannot prevent all risks of accidents. It is up to the user to act with the utmost precaution. J Do not hesitate to contact the dealer in case of a problem. Ignoring any of the safety instructions can cause serious personal injury and can also cause damage to the linen or the machine ❐... -
Page 4: Technical Data And Dimensions
Capacity (dry weight) Cylinder Cabinet Front loading Speed G-factor Motoren (3-fasig) Drain valve Water supply Steam connection Heating Packing dimensions Weight HF150 1/11 13 kg 1/10 14,5 kg 16 kg Diameter 680 mm Depth 400 mm Volume 145 Lit Height... - Page 5 Technical data and dimensions Technical data Capacity (dry weight) Cylinder Cabinet Front loading Speed G-factor Motoren (3-fasig) Drain valve Water supply Steam connection Heating Packing dimensions Weight 1/11 1/10 Diameter Depth Volume Height Width Depth Diameter door opening Door height To center Wash Distribution...
-
Page 6: Dimensions
J F. Connections clamps J G.Electrical connections J H.Emergency button J I. Ventilation tub J K. Drain valve J L. Steam connections HF150 = 665 - HF185 = 765 HF150 = 733 - HF185 = 833 HF150 = 753 - HF185 = 853... - Page 7 Dimensions HF234 155.5 J A. Ventilation soap dispenser J B. Liquid soap connetions J C. Hard water connections 3/4" J D. Warm water connections 3/4" J E. Soft water connections 3/4" J F. Connections clamps J G.Electrical connections J H.Emergency button J I.
-
Page 8: Installation And Connection
0,5 and 10 kg/cm² (7 and 145 psi). If the pressure is too low, the cycle time will increase considerably. In case of boiler fed machines, a minimum of hot water of 90°C should be available: For the HF150: 94 l. HF185: 115 l. HF234: 150 l. -
Page 9: Water Drain
Electrical Connection Power of the breaker plugs: The machine is equipped with a drain valve (HF150-185) with 2" ou- ter diameter (50mm) (HF234) 3" outer diameter (80 mm). This drain valve should be connected to the drain by means of the drain elbow which is delivered with the machine. -
Page 10: Liquid Soap Connection
Liquid soap connection (option) Connection of the liquid soap hoses Electrical connection of the liquid soap pumps The liquid soap connection consists of 8 connections for liquid soap (SI….S). The central opening is used for ventilation. On machines equipped with a liquid soap connection, connect the wires directly on the print board next to the ground wire connec- tion (option). -
Page 11: Connection Of A Central Operating Panel For Coinmachines (Option)
Connection of a central operating panel for coinmachines (option) At the backside above the main connectors, you fi nd a printboard, to which the central operating panel for coinmachines can be connected. The right connectors form a potential free output contact as a result of which the operating panel detects when the machine is activated or not. -
Page 12: Steam Connection
Steam connection The manufacturer is not responsible for damage or accidents caused by not following the installation instructions! Machines with steam heating must have a steam valve between the steam installation and the machine. With direct steam injection into the machine 1. -
Page 13: Operating Instructions
Operating instructions Machine with start button Opening the door Fill the drum Close the door Select program Add detergent Economy Wash Open the door. Sort the linen according to the type and required temperature of the linen. Empty all pockets of the garments so that no garments can be damaged and no left articles can cause damage to the machine. - Page 14 Start the machine Indications of program sequence Start the wash-cycle by pressing the Start button (S) and releasing it immedi- ately. The door is sealed and the cycle-LED lights up. During the fi rst 2 minutes after starting, the program number is blinking and you can change the program in case of a possibly wrong selection.
- Page 15 Manual interventions during the program During fi nal spin, both the left spin-LED (intermediate spin) will light up together with the right spin-LED (fi nal spin). - Functioning of the spin-LED’s during fi nal spin: drain/distribution low spin Interm. spin blinking rapidly continuously Final spin...
-
Page 16: Description Of The Functions
Description of the functions Function F1 (Time stop) During the wash cycle: The wash time is stopped. The temperature, water level and wash action remain the same as programmed. During the wash cycle, this function remains active until the START button (S) is pressed again. - Page 17 Function F3 (reduced wash action): By selecting F3, the wash action time and pause time will be reversed; unless the wash action time was programmed to be shorter than the pause time. Example: 12 sec. action/3 sec. pause becomes: 3 sec. action/12 sec. pause 6 sec.
-
Page 18: End Of A Program
At the end of a program, while the door is being released, the End of a program left display shows End; and the Start-LED is switched off. After that only the right display will continue to show the program number. This is the end of the program. - Page 19 Remarks: Freely programmable stop-function Before starting a program it is possible to preprogram a time stop in every program segment. This function permits special additional functions like ad- ding bleach or extra detergent to the wash bath. Programming: After selecting the program, press the ECO-button (E) and keep it depres- sed.
- Page 20 Linking 2 programs It is possible to run 2 programs automatically in sequence. This can be handy to perform very special functions (like waterproofi ng outerwear) and add these to the wash program. Programming: First select the program which will be run last. Now, press the START-button (S) and keep it depressed for at least 5 seconds.
-
Page 21: Machine With Coin Or Token Operation
Machine with coin or token operation Opening the door Fill the drum Close the door Select program Add detergent Start the machine Open the door. Sort the linen according to the type and required temperature of the linen. Empty all pockets of the garments so that no garments can be damaged and no left articles can cause damage to the machine. - Page 22 Indications of program sequence Display information The left display will indicate the temperature of the wash bath - in °C or °F (on machines where this function has been selected). The central display shows the remaining time to the end of the wash cycle. For programs which are being run for the fi...
-
Page 23: Hidden Buttons
End of a program Remarks Hidden buttons At the end of a program, while the door is being released, the left display shows End and the Start-LED is switched off. After that only the right display will continue to show the program number. This is the end of the program. Rapid advance This function allows to skip the rest or certain segments of the program. - Page 24 Cool down This function allows to gradually lower the temperature of the wash bath to prevent creasing of the linen. During a cool down, the remaining program time on the central display will be replaced by “cd”. Power Failure Should the power fall out during the program, the water will be drained and the door can be opened after maximum 3 minutes.
- Page 25 Setting the price The price is set according to the specifi cations at the time of ordering the ma- chine. If no prices were specifi ed, some standard amounts have been preset. Every program can be priced differently. These prices can also be modifi ed easily.
- Page 26 After programming the price for the last program, there are still the following parameters : A : Eco - price This is the decrease in value of the price for economical wash. In other words, the amount that the customer is saving by using economic wash. B : Number of coin insertions COIN 1 (up to 60.000) This parameter is only indicated if it has been programmed as such in the program- mation (COIN COUNT).
-
Page 27: Standard Programs
Standard programs The machine is standard equipped with 10 programs (0+9). These have been designed in cooperation with specialized detergent manufacturers to obtain the best possible wash results using the most frequently used detergents. Program 0 (starching) is mostly used in very special applications and is therefore not displayed on the front panel. -
Page 28: Technical Remarks
Technical remarks Internal connections of the electrical heating ▲ Heating ★ Tilt switch Window Probe 3x220V 3x3kw ▲ 12kw 3x2kw ▲ 3x2kw 15kw 3x2kw ▲ 3x3kw 18kw 3x3kw ▲ 3x3kw 21kw 3x3kw ------ 3x4kw ------ 24kw 3x4kw ------ 3x4kw ------ B = Black Gy = Grey R = Red... -
Page 29: Error Messages
Error messages When one of the following malfunctions occurs during a program, the central display will communicate the appropriate error message at the end of the cycle. E3 (Eprom) The Eprom is wrong, replace it by another. Nota: For coin op machines, it is possible that a program number appears on the right display in combination with E3. - Page 30 E9 (motor protection) The thermo-magnetic protection was activated 5 times. EA (tilt) The tilt switch was activated 15 times during final spin and the final spin was therefore skipped. Eb (tilt switch) The tilt switch is blocked. Mot 2 (rotation sensor) The speed detection is not operating properly.
-
Page 31: Maintenance Of The Machine
Maintenance of the machine General maintenance Periodical maintenance Clean the entire cabinet of the machine regularly and remove all traces of ❐ soap, etc... ❐ Remove all detergent residue in the soap dispenser with hot water. Clean the door gasket and remove all detergents and other products. ❐... -
Page 32: Repair And After-Sales Service
Repair and after-sales service Data distributor: Data machine: The manufacturer reserves the right to change the content of this instruc- tion manual, at all times and without previous notice. In case of important malfunctions and deficiencies which you cannot resolve ❐...
