IPSO IHC WASHER-EXTRACTORS IHC012 Handbook

On-premise laundry planning handbook
Hide thumbs

Advertisement

Quick Links

On-Premise
Laundry
Planning
Handbook
CHM2097N
IHC Washer-Extractors
Refer to Installation manual for full instructions.
5-08-52R1
June 2011

Advertisement

loading
Need help?

Need help?

Do you have a question about the IHC WASHER-EXTRACTORS IHC012 and is the answer not in the manual?

Questions and answers

Related Manuals for IPSO IHC WASHER-EXTRACTORS IHC012

Summary of Contents for IPSO IHC WASHER-EXTRACTORS IHC012

  • Page 1 On-Premise Laundry Planning Handbook CHM2097N IHC Washer-Extractors Refer to Installation manual for full instructions. 5-08-52R1 June 2011...

  • Page 2: Table Of Contents

    Table of Contents © Published by permission of the copyright owner. All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. ©...

  • Page 3: Washer-Extractors

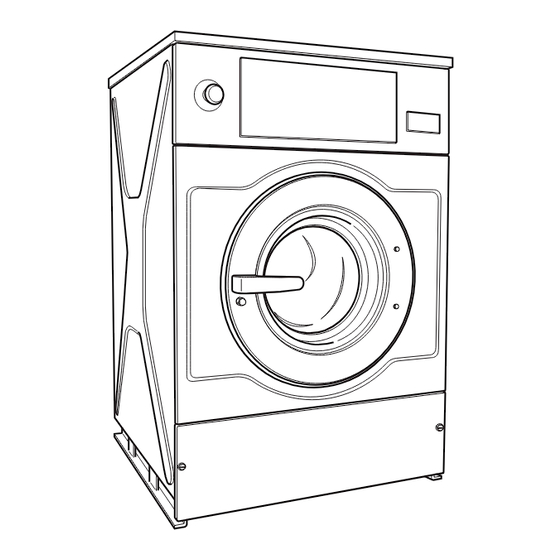

    Washer-Extractors Introduction Model Identification - IHC Washer-Extractors IHC012 IHC018 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 5-08-52 Figure 1 IHC025 IHC030 CHM2097N IHC035...

  • Page 4: Specifications And Dimensions - Model Ihc012

    Washer-Extractors Specifications and Dimensions - Model IHC012 Capacity (dry weight) Ratio (kg/l) 1:11 1:10 Cylinder Cylinder diameter, in. (mm) Cylinder depth, in. (mm) Cylinder volume, ft. Cabinet Overall height, in. (mm) Overall width, in. (mm) Overall depth, in. (mm) Front Loading Door opening size, in.
  • Page 5 Machine Dimensions - Model IHC012 1.3 in. (33 mm) 2.56 in. 20.87 in. (530 mm) (65 mm) 25.98 in. (660 mm) 5.94 in. (151 mm) Ventilation Soap Dispenser Warm Water Connections .75 in. Liquid Soap Connections Soft Water Connections .75 in. Main Switch ©...
  • Page 6 Washer-Extractors Mounting Bolt Hole Locations - Model IHC012 1.18 in. (30 mm) ø0.71 in. (ø18 mm) 1.18 in. (30 mm) 2.56 in. 2.56 in. 20.87 in. (530 mm) (65 mm) (65 mm) 25.98 in. (660 mm) CHM2203N CHM2203N Figure 3 ©...
  • Page 7 WARNING Only trained personnel should perform this procedure. Use caution while servicing machines with covers removed and power applied. Electrical Installation Requirements - Model IHC012 440-480 50/60 3+PE 380-415 50/60 3+N+PE 200-240 50/60 3+PE 200-240 50/60 2/3+PE 440-480 50/60 3+PE 380-415 50/60 3+N+PE...

  • Page 8: Specifications And Dimensions - Model Ihc018

    Washer-Extractors Specifications and Dimensions - Model IHC018 Capacity (dry weight) Ratio (kg/l) 1:11 1:10 Cylinder Cylinder diameter, in. (mm) Cylinder depth, in. (mm) Cylinder volume, ft. Cabinet Overall height, in. (mm) Overall width, in. (mm) Overall depth, in. (mm) Front Loading Door opening size, in.
  • Page 9 Machine Dimensions - Model IHC018 1.3 in. (33 mm) 20.87 in. 2.56 in. (530 mm) (65 mm) 25.98 in. (660 mm) Ventilation Soap Dispenser Warm Water Connections .75 in. Liquid Soap Connections Soft Water Connections .75 in. Main Switch © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 5-08-52 1.3 in.
  • Page 10 Washer-Extractors Mounting Bolt Hole Locations - Model IHC018 2.56 in. (65 mm) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT ø0.71 in. (ø18 mm) 20.87 in. (530 mm) 25.98 in. (660 mm) Figure 5 1.18 in. (30 mm) 1.18 in.
  • Page 11 WARNING Only trained personnel should perform this procedure. Use caution while servicing machines with covers removed and power applied. Electrical Installation Requirements - Model IHC018 440-480 50/60 3+PE 380-415 50/60 3+N+PE 200-240 50/60 3+PE 200-240 50/60 2/3+PE 440-480 50/60 3+PE 380-415 50/60 3+N+PE...

  • Page 12: Specifications And Dimensions - Model Ihc025

    Washer-Extractors Specifications and Dimensions - Model IHC025 Capacity (dry weight) Ratio (kg/l) 1:11 1:10 Cylinder Cylinder diameter, in. (mm) Cylinder depth, in. (mm) Cylinder volume, ft. Cabinet Overall height, in. (mm) Overall width, in. (mm) Overall depth, in. (mm) Front Loading Door opening size, in.
  • Page 13 Machine Dimensions - Model IHC025 1.3 in. (33 mm) 20.87 in. 2.56 in. (530 mm) (65 mm) 25.98 in. (660 mm) 5.94 in. (151 mm) 2.95 in. (75 mm) Ventilation Soap Dispenser Warm Water Connections .75 in. Liquid Soap Connections Soft Water Connections .75 in.
  • Page 14 Washer-Extractors Mounting Bolt Hole Locations - Model IHC025 2.56 in. (65 mm) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT ø0.71 in. (ø18 mm) 20.87 in. (530 mm) 25.98 in. (660 mm) Figure 7 1.18 in. (30 mm) 1.18 in.
  • Page 15 WARNING Only trained personnel should perform this procedure. Use caution while servicing machines with covers removed and power applied. Electrical Installation Requirements - Model IHC025 440-480 50/60 3+PE 380-415 50/60 3+N+PE 200-240 50/60 3+PE 200-240 50/60 2/3+PE 440-480 50/60 3+PE 380-415 50/60 3+N+PE...

  • Page 16: Specifications And Dimensions - Model Ihc030

    Washer-Extractors Specifications and Dimensions - Model IHC030 Capacity (dry weight) Ratio (kg/l) 1:11 1:10 Cylinder Cylinder diameter, in. (mm) Cylinder depth, in. (mm) Cylinder volume, ft. Cabinet Overall height, in. (mm) Overall width, in. (mm) Overall depth, in. (mm) Front Loading Door opening size, in.
  • Page 17 Machine Dimensions - Model IHC030 1.34 in. (34 mm) 25.51 in. (648 mm) 2.6 in. (66 mm) 30.71 in. (780 mm) 10.49 in. (267 mm) 7.93 in. (202 mm) 4.13 in. (105 mm) Ventilation Soap Dispenser Warm Water Connections .75 in. Hard Water Connections .75 in Soft Water Connections .75 in.
  • Page 18 Washer-Extractors Mounting Bolt Hole Locations - Model IHC030 ø0.71 in. (ø18 mm) 2.58 in. (66 mm) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 25.51 in. (648 mm) 30.71 in. (780 mm) Figure 9 1.44 in. (36.5 mm) 1.44 in.
  • Page 19 WARNING Only trained personnel should perform this procedure. Use caution while servicing machines with covers removed and power applied. Electrical Installation Requirements - Model IHC030 440-480 50/60 3+PE 380-415 50/60 3+N+PE 200-240 50/60 3+PE 200-240 50/60 2/3+PE 440-480 50/60 3+PE 380-415 50/60 3+N+PE...

  • Page 20: Specifications And Dimensions - Model Ihc035

    Washer-Extractors Specifications and Dimensions - Model IHC035 Capacity (dry weight) Ratio (kg/l) 1:11 1:10 Cylinder Cylinder diameter, in. (mm) Cylinder depth, in. (mm) Cylinder volume, ft. Cabinet Overall height, in. (mm) Overall width, in. (mm) Overall depth, in. (mm) Front Loading Door opening size, in.
  • Page 21 Machine Dimensions - Model IHC035 1.34 in. (34 mm) 25.51 in. 2.6 in. (648 mm) (66 mm) 30.71 in. (780 mm) 10.49 in. (267 mm) 7.93 in. (202 mm) 4.13 in. (105 mm) Ventilation Soap Dispenser Warm Water Connections .75 in. Soft Water Connections .75 in.
  • Page 22 Washer-Extractors Mounting Bolt Hole Locations - Model IHC035 2.58 in. (66 mm) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT ø0.71 in. (ø18 mm) 25.51 in. (648 mm) 30.71 in. (780 mm) Figure 11 1.44 in. (36.5 mm) 1.44 in.
  • Page 23 WARNING Only trained personnel should perform this procedure. Use caution while servicing machines with covers removed and power applied. Electrical Installation Requirements - Model IHC035 440-480 50/60 3+PE 380-415 50/60 3+N+PE 200-240 50/60 3+PE 200-240 50/60 2/3+PE 440-480 50/60 3+PE 380-415 50/60 3+N+PE...

  • Page 24: Installation - Ihc Models

    Washer-Extractors Installation - IHC Models CAUTION Ensure that the machine is installed on a level floor of sufficient strength and that the recommended clearances for inspection and maintenance are provided. Never allow the inspection and maintenance space to be blocked. Surface The machine must be securely fixed on a flat surface (metal base, concrete or solid ground).
