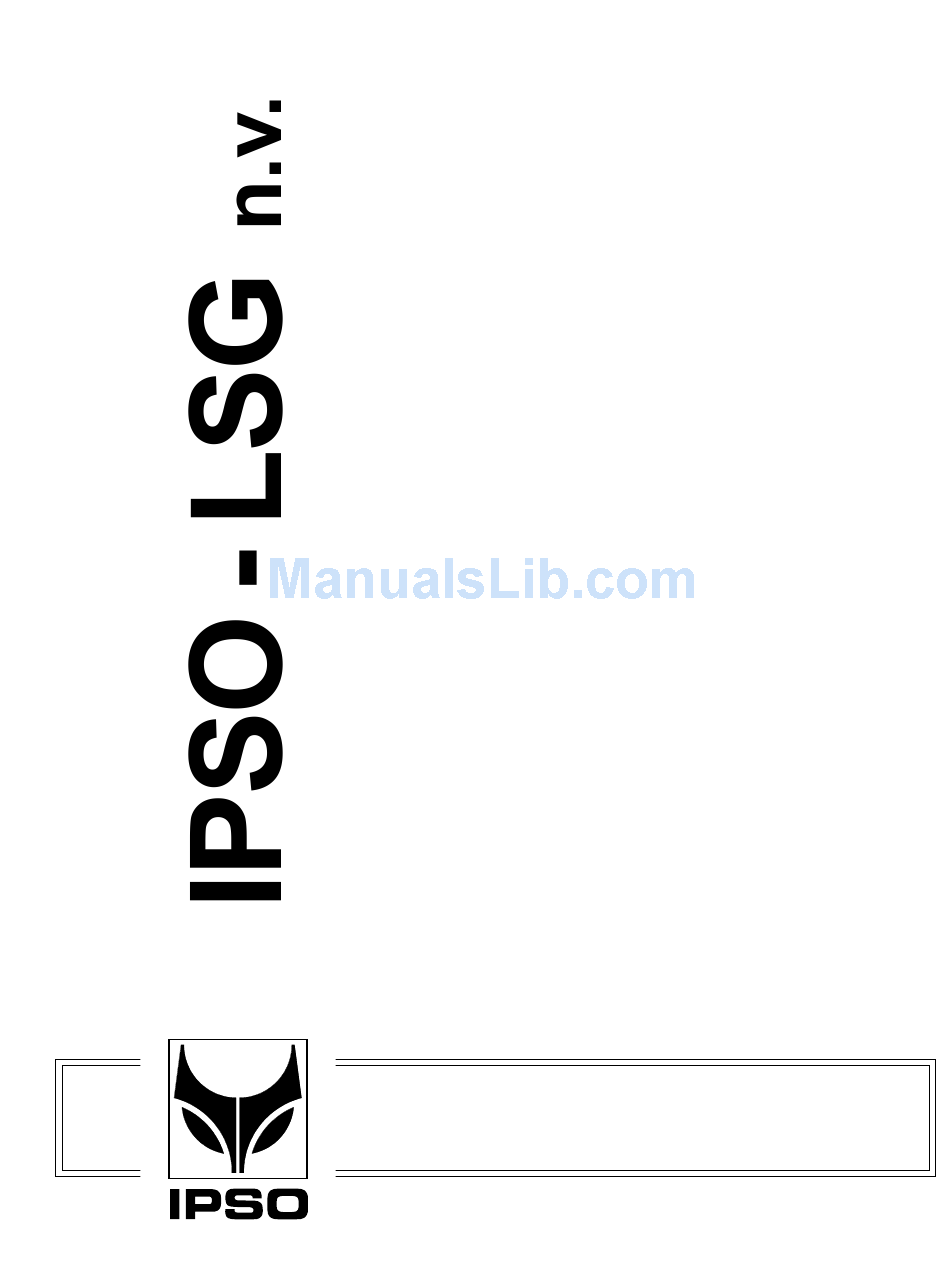

Instruction manual
Nieuwstraat 146 - B-8560 Wevelgem (Belgium)
Tel. 056/41 20 54 - Fax 056/41 86 74
HF145, HF176
HF205, HF234
Technische gegevens
Technical specifications
Installation instructions
Operating instructions
Gebruiksaanwijzing
Maintenance
Part No. D0247
Installatie
Onderhoud
Advertisement
Table of Contents
Related Manuals for IPSO HF145
Summary of Contents for IPSO HF145
- Page 1 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 HF145, HF176 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2...
-
Page 2: Table Of Contents
Contents 1 General safety instructions .............. 3 2 Technical data and dimensions ............4 Technical data ................4 Dimensions ..................5 3 Installation and connection ............. 6 Ground .................... 6 Removing the transport brackets ............ 6 Water connection ................6 Water drain .................. -
Page 3: General Safety Instructions
General safety instructions Ignoring any of the safety instructions can cause serious perso- nal injury and can also cause damage to the linen or the machine Read the installation and instruction manual carefully before connecting the machine. It is recommended that the machine be installed by qualified technicians. The machine should be installed according to the installation instructions. -
Page 4: Technical Data And Dimensions
Technical data and dimensions Technical data HF 145 HF 176 HF 205 HF 234 Capacity (dry weight) 1/11 13,2 kg 16 kg 18,6 kg 21,3 kg 1/10 14,5 kg 17,6 kg 20,5 kg 23,4 kg 16,1 kg 19,5 kg 22,7 kg 26 kg C y l i n d e r Diameter... -
Page 5: Dimensions
Dimensions A. Hard water connection 3/4" B. Warm water connection 3/4" C. Soft water connection 3/4" D. Water connection cool-down (option) E. Electrical power connection motor drive F. Electrical connection heating G. Electrical connection clamps H. Ventilation soap dispenser I. Water drain J. -
Page 6: Installation And Connection
0,5 and 10 kg/cm² (7 and 145 psi). If the pressure is too low, the cycle time will increase considerably. In case of boiler fed machines, a minimum of hot water of 90°C should be available: For the HF145: 110l. HF205: 135l. For the HF176: 125l. HF234: 150l. -
Page 7: Water Drain
Water drain The machine is equipped with a drain valve with 6/4" outer diameter (50 mm). This drain valve should be connected to the drain by means of the drain elbow which is delivered with the machine. The diameter of the main drain should be adapted to the water flow and the number of machines. -
Page 8: Steam Connection
Steam connection Machines with steam heating must have a steam valve between the steam installation and the machine. With direct steam injection into the machine 1. Steam pipe 2. steam cut-off valve 3/8" 3. Pipe coupling 3/8" 3. Steam filter 3/8" 5. -
Page 9: Operating Instructions
Operating instructions Machine with CAM-timer and 10 buttons Open the door Press the red button on the doorhandle and open the door. Fill the drum The machines have 5 wash programs. Sort the linen according to the quality and the allowed wash temperature. Remove all nails, coins, etc. that can damage the linen or the machine during the wash cycle. - Page 10 thermostat with 2 adjustable temperatures can be installed. Choose temperature The choice of temperature via the switch buttons can then be replaced by the input of T1/T2 - T2 = Highest adjustable temperature (Main wash) - T1 = Lowest adjustable temperature (Pre-wash) Start the machine Press the start button (6).
- Page 11 Button “Soak” Choose a program (1...5) (Don’t press button 7) (Option!) - Press the pause switch so the light turns on. - Add detergent and start the machine. The bath is filled to high water level. A reduced wash action of 3 sec. wash and 12 sec.
-
Page 12: Machine With Electronical Plc-9 Microprocessor And Start Button
Overloading the machine can be the cause of low wash quality. Close the door Select program The machine has at least 6 programs (IPSO Belgium). Press the program selection button (SELECT) as many times until the desired program number appears: 1. Hot wash (2 baths)(40°/90°C) - Page 13 Choose temperature As an option, a thermometer or thermostat with 2 or 3 adjustable temperatures can be installed. - T3 = Highest adjustable temperature - T2 = Middle adjustable temperature - T1 = Lowest adjustable temperature Start the machine Press the start button. When the machine is started, the green pilot light on the fascia panel will turn off.
- Page 14 Special functions By keeping the program select button (SELECT) pressed and then pressing the START/STOP button at the same time, it is possible to use special functions. After a while, the left decimal point starts to flash. (A) This means that the program will keep repeating the segment that is now active (Time stop).
- Page 15 Special messages When starting the program and the door is not closed properly, “ cdo “ will appear (Close door). When starting the program and something is wrong with the water level switches, “ HLE “ (high level), “ LLE “ (low level) or alternating “SLE - tilt” (safety level) will appear.
-
Page 16: Technical Remarks
Technical remarks Program time (Machine with CAM-timer) Code 10.1126 - 220 V (50Hz with brown CAM-timer) There are several possibilities according to cabling, microprocessor, type of heating, tempe- rature control, water level control, etc..For your information you can find the details of the programs for a machine with standard programs, boiler fed (without temperature control nor water level controls). -
Page 17: Internal Connection Of The Electrical Heating
Internal connection of the electrical heating Vermogen Heating 3x220V 3x380V 12kW 3x2kW LC1D253 LC1D0901 3x2kW 15kW 3x2kW LC1D253 LC1D1810 3x3kW 18kW 3x3kW LC1D323 LC1D1810 3x3kW 21kW 3x3kW ------ ------ LC1D1810 3x4kW ------ ------ LC1D1810 24kW 3x4kW ------ ------ LC1D1810 3x4kW ------ ------ LC1D1810... -
Page 18: Thermo-Magnetic Motor Protection
The thermic overload relay turns off in case of overloading. Because this relay Autom. reset is installed on automatical reset, after a while the motors are switched back on automatically. Installation and type of overload relay 220V Machine Type value installation HF145 LR2D13149 7-10A HF176 LR2D13149 7-10A Man. reset HF205 LR2D13149 7-10A... -
Page 19: Tilt Switch And Electronical Repetition System
Tilt switch and electronical repetition system Tilt switch The tilt switch is mounted on the solid part of the machine. There is a window around the probe of the tilt switch that is mounted on the movable part of the machine. -
Page 20: Maintenance Of The Machine
Maintenance of the machine General maintenance Clean the entire cabinet of the machine regularly and remove all traces of soap, etc..Remove all detergent residue in the soap dispenser with hot water. Clean the door gasket and remove all detergents and other products. Shut off the main water, steam and power connections at the end of each day.
