Summary of Contents for Audiovox VOH681A

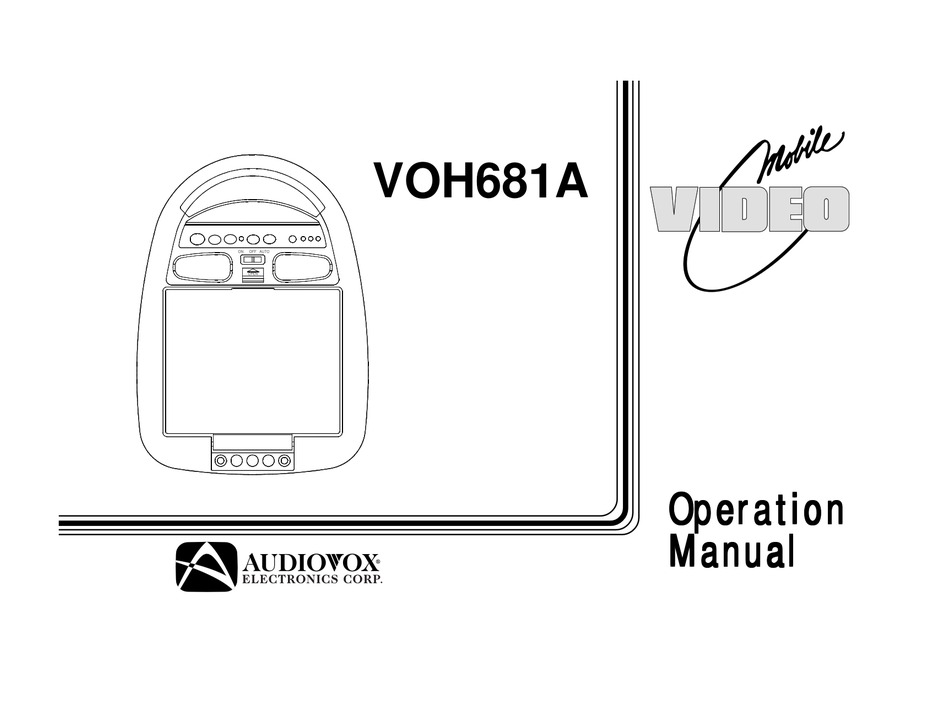

- Page 1 VOH681A Ope r r r r r at at at at at ion Manual Manual Manual Manual Manual...
-
Page 2: Important Notice
In the interest of safety, the VOH681A should never be installed where it will be visible, directly or indirectly, by the operator of the motor vehicle. - Page 3 Congratulations on your purchase of the Audiovox VOH681A drop-down Video Monitor. The VOH681A has been designed to give you and your family many years of video entertainment in the mobile environment. Please read the directions that follow to familiarize yourself with the product and to ensure that you obtain the best results from your equipment.
-
Page 5: Front Panel
12. Brightness Up/Down Control - use the brightness up/down buttons to adjust the picture to bright or dark. Turning the VOH681A On or Off 1 Sliding the screen release lock forward will unlock the LCD screen and it will drop down slightly. Pivot the screen downward until a comfortable viewing angle is reached. -
Page 6: Operation
Operation Overhead Dome Lights The lights integrated into the VOH681A are controlled by a three position slide switch. Sliding the switch to the on position will turn the lights on. The off position will prevent the lights from turning on at all times, and the auto position will allow the lights to turn on and off with the vehicle’s interior lighting. -
Page 7: Optional Accessories
Optional Accessories Wired Headphones There is one 1/8” headphone jack on the VOH681A that can be used with any standard stereo headphone. This jack is controlled by the volume up / down buttons on the VOH681A or the remote control. - Page 8 “AV1” indicator LED illuminates. The VCP may also be operated with a remote or the buttons on its face. The VOH681A is now ready to play the audio and video signals from the VCP if it is connected to the “AV1”...
- Page 9 The second video input may be connected to a DVD player, video game system, or other audio / video input. To play the AV2 source, turn the VOH681A on and press the source button on the pod until the “AV2”...
-
Page 10: Troubleshooting
• Verify that the infrared transmitter is affixed over the sensor eye of the component to be controlled Replacement Parts Protective Plastic Cover Optional Audiovox VCP Remote Control 0993000 Specifications LCD Backlighting Resolution Pixels Operation Temperature Storage Temperature Expected Backlight Life... - Page 11 © Copyright 2001 Audiovox Electronics Corp. 150 Marcus Blvd. Hauppauge, NY 11788 128-5623C...
