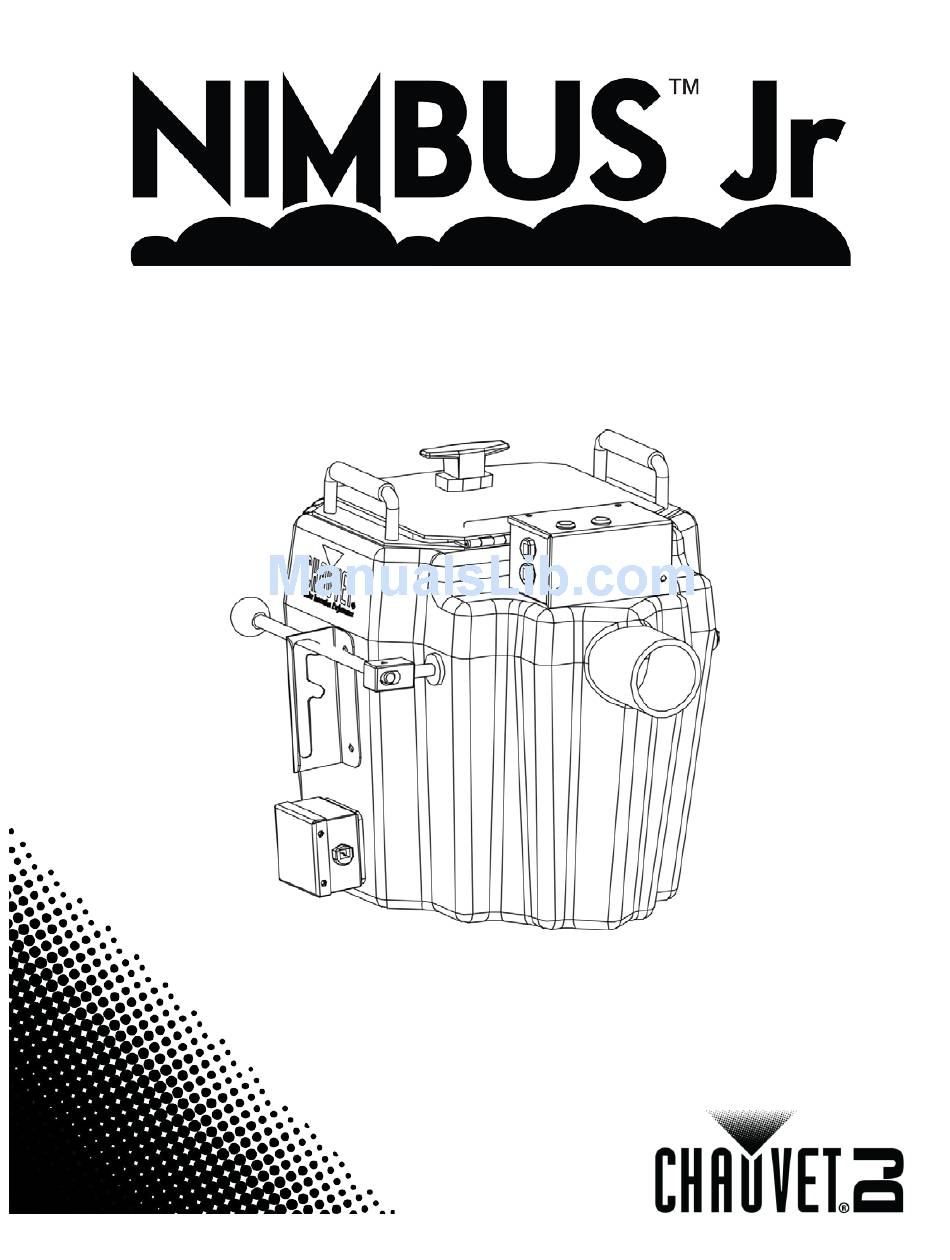

- Page 1 User Manual...
-
Page 2: Table Of Contents
ABLE OF ONTENTS 1. Before You Begin ......................3 What Is Included ..........................3 Unpacking Instructions ........................3 Claims ............................... 3 Text Conventions ..........................3 Symbols ............................3 Disclaimer ............................3 Product at a Glance .......................... 4 Safety Notes ............................. 4 2. -
Page 3: Before You Begin
Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection. For other issues, such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with CHAUVET® within 7 days of delivery. Text Convention... -
Page 4: Product At A Glance
Product at a Use on Dimmer Auto Programs Fixed voltage Glance Outdoor Use (120 VAC or 230 VAC) Sound-Active Replaceable Fuse User-Serviceable Master/Slave Safety Notes These Safety Notes include important information about the installation, use, and maintenance; including DRY ICE WARNINGS. Read carefully! ·... - Page 5 · Always make sure that the voltage of the outlet to which you are connecting the product is within the range stated on the decal or rear panel of the product. · The product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose the product to rain or moisture.
-
Page 6: Introduction
2. I NTRODUCTION Overview Carry Handles Top Plate Lid Latch Indicators Power In Output Nozzle Basket/Operation Lever Page 6 of 11 Nimbus™ Jr. User Manual Rev. 3... -
Page 7: Dimensions
Dimensions 15.5 in 393 mm 13.3 in 337 mm 13.6 in 345 mm Nimbus™ Jr. User Manual Rev. 3 Page 7 of 11... -
Page 8: Setup
3. S ETUP AC Power The Nimbus™ Jr. has a fixed voltage power supply and it can work with an input voltage of either 120 VAC, 60 Hz or 230 VAC, 50 Hz, depending on the specific model. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 9: Operation
4. O PERATION The top plate has two LED indicators – one red and one green. The red LED indicates Setup that the heater is on, and the green LED indicates the water is at its optimal operating temperature. The heater will not turn on unless there is enough water. As the dry ice sublimates, the water will cool and the green LED indicator will turn off. -
Page 10: Technical Specifications
6. T ECHNICAL PECIFICATIONS Dimensions and Length Width Height Weight Weight Empty: 14.6 lb (6.6 kg) 15.5 in (393 mm) 13.6 in (345 mm) 13.3 in (337 mm) Full: 34 lb (15.5 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Power Supply Type Range Voltage Selection... -
Page 11: Returns
You must send the merchandise prepaid, in its original box, and with its original packing and accessories. CHAUVET® will not issue call tags. Clearly label the package with the RMA number. CHAUVET® will refuse any product returned without an RMA number.
