Installation Images - Firstech FT-MB211-DC Installation Manual

Data Controller (DC)
Remote Start for Mercedes
2004 - 2009 CLK Class
31. Once you are satisfied with its operation, shut down the remote start by pushing the
panic button once.
32. Locate a place to secure the control module in the dash.
33. Secure the module in its final location.
34. Drill a 3/4" hole in the under dash panel.
35. Shut the valet switch off.
36. Remove the wires from the valet switch, mount the valet switch in the hole drilled in step 33,
and reconnect the wires.
37. Place the knee bolster back to it's standard location and reinstall (2) T-20 screws on top, (3)
T-20 in the radio opening, and (2) T-20 on the lower edge.
38. Attach the wire harness to the rear of the gauge cluster and clip it back into place
39. Slide the center console forward making sure the pins are correctly inserted into the cam locks
at the front of the console and tighten the cam locks with the T-30 driver 1/2 turn clockwise.
40. Reinstall (4) 10mm bolts to hold the console, (2) under the arm rest and (2) at the rear of the
shifter on either side.
41. Snap the arm rest into the center console.
42. Reinstall 5 screws into the arm rest—(2) T-20 in the rear of the console opening, (1) T-20 at the
bottom of the front cup holder, and (2) T-10 at the top of the same cup holder.
43. Reconnect the wires to the radio and reinstall into dash cavity with (4) T-20 screws.
44. Reconnect the wires to the switch panel above the radio and snap into place
45. Reconnect the wires for the HVAC panel and snap into place securing with (2) T-20 on the
bottom edge.
46. Reconnect the wires to the ashtray and snap into place.
47. Snap the shifter bezel into place, lower the shifter boot and snap into place.
48. Reinstall driver's under dash panel and secure with (3) T-20 screws.

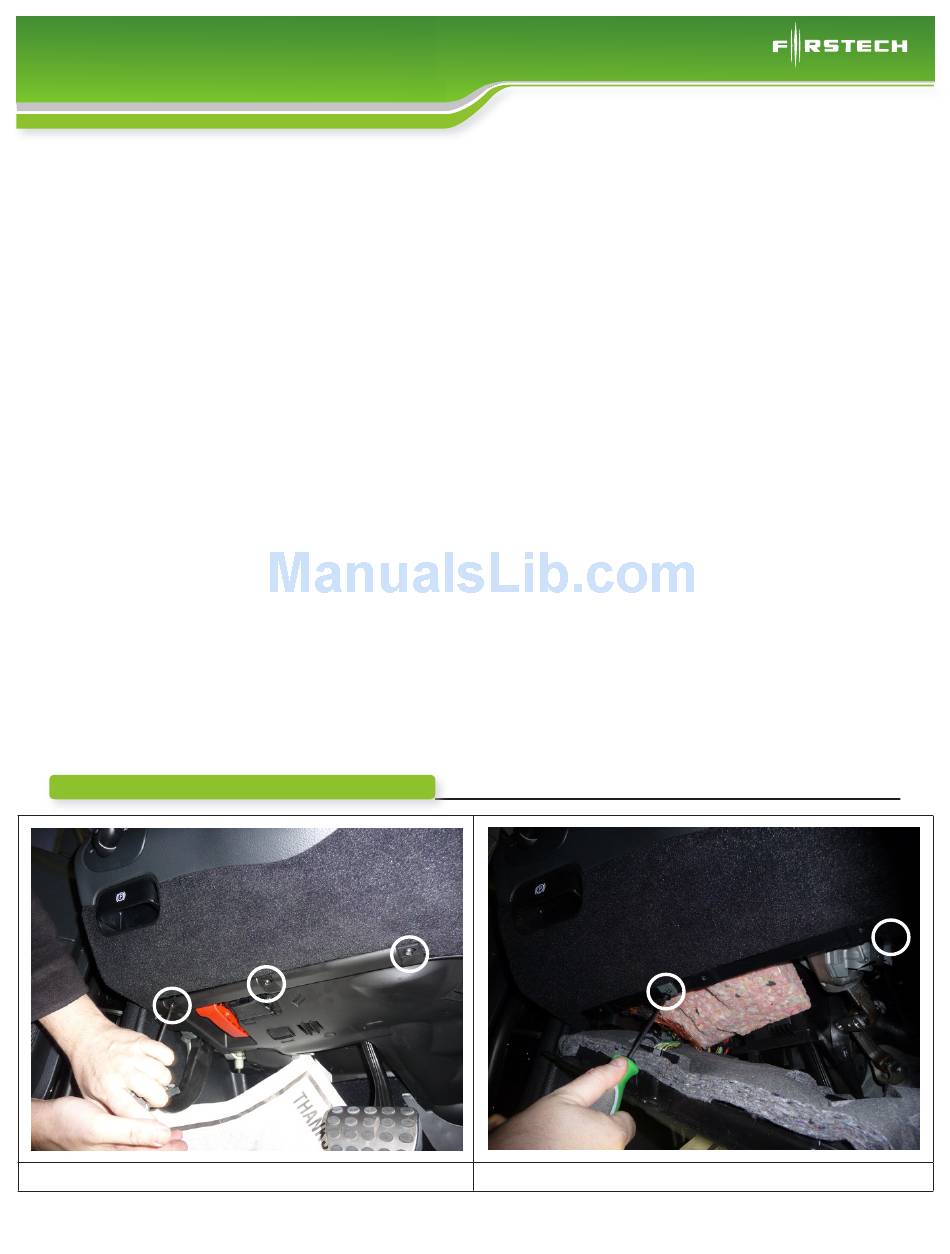

Installation Images

Remove (3) T-20
FT-MB211-DC Installation Guide
Remove (2) T-20
