Cadet RBF Owner's Manual
  1. Manuals
  2. Brands
  3. Cadet Manuals
  4. Heater
  5. RBF Series
  6. Owner's manual

Cadet RBF Owner's Manual

With built-in on/off switch
Hide thumbs Also See for RBF:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Benefits You Can Depend On
• DUAL SAFETY FEATURES
Primary: "power reset" thermal switch
Secondary: over temperature thermal fuse
• Heating element style quickly warms your
room, and quickly cools when heater is not in
use
• Common sense components designed with
you in mind
1. NO sharp edges
2. Corrosion resistant
3. Easy to install wall can
• Convenient ON/OFF switch control
• Retrofits into model RBC wall can, or use with
model RBFC wall can sold separately
• Your Cadet heater has been thoroughly tested
and is guaranteed with a 2 year extended
warranty
Grill
Grill Frame
Grill Front
¼"
1"
.63
2.54
30.48
Wall Can Bottom
10
25.71
1½"
3.81
2¾"
6.98
www.cadetheat.com
Wall Can Side
19"
17
7
/
"
8
48.26
45.4
12"
/
"
1
8
SAVE THESE INSTRUCTIONS
Tel: 360-693-2505
http://www.cadetheat.com/products/wall-heaters/RBF
Line Voltage
120
17"
43.18
4"
10.16
TOOLS REQUIRED:
• Phillips Screwdriver
• Straight Screwdriver
• Wire Strippers
PO Box 1675 Vancouver, WA

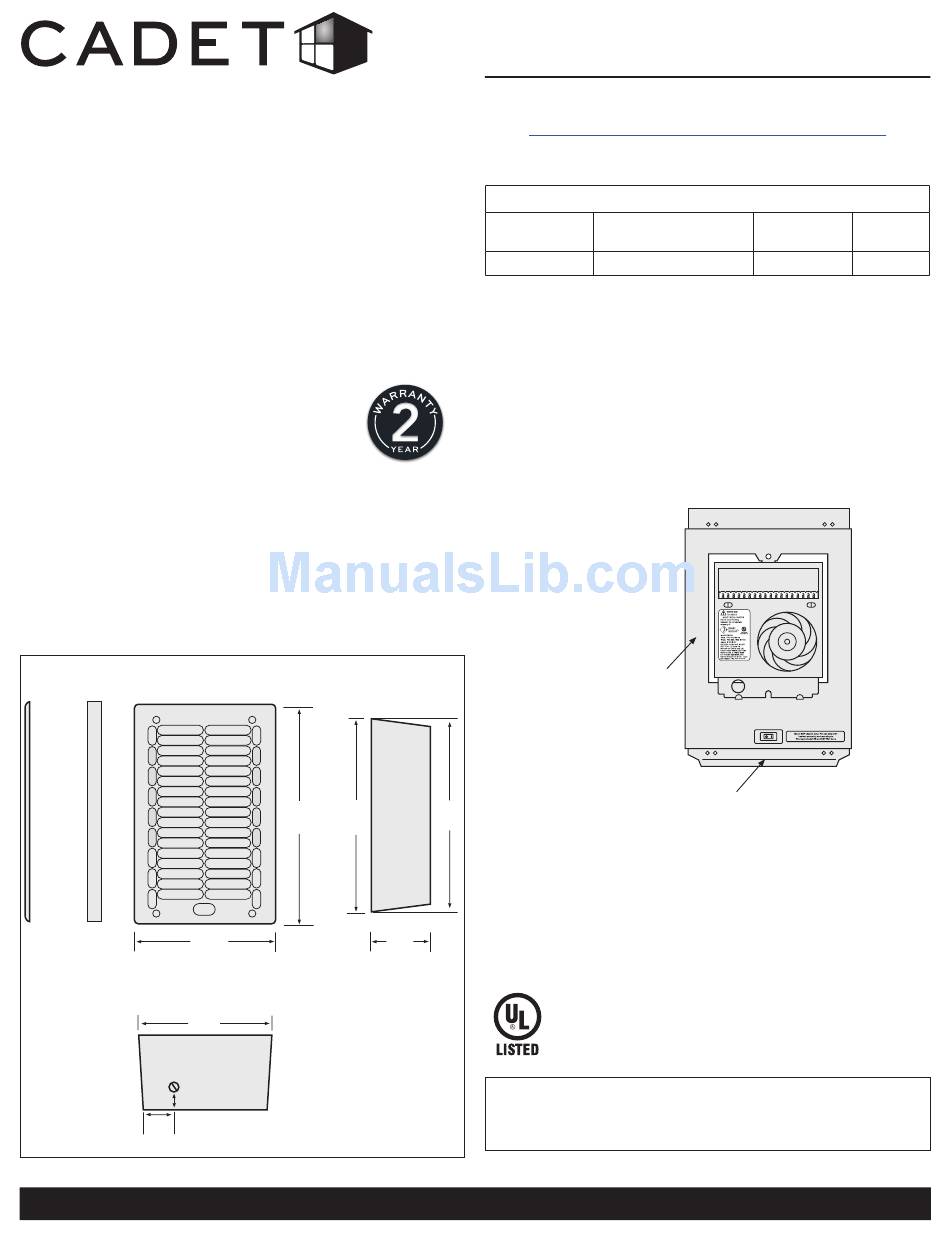

RBF Heater
Owner's Guide
RBF Model
Model with On/Off
Switch
RBF101
RBF with Built-in On/Off Switch
*Wall Thermostat Not Required
Rating Label
Built-in On/Off Switch
• Utility Knife
• (2) 1 1/2" Wood Screws
• Insulated Wire Connectors
• (1) Strain Relief Connector
98668-1675
Watts
Amps
1000
8.33
Page 1

Advertisement

Table of Contents
loading

Related Manuals for Cadet RBF

Summary of Contents for Cadet RBF

  • Page 1 • Convenient ON/OFF switch control • Retrofits into model RBC wall can, or use with model RBFC wall can sold separately • Your Cadet heater has been thoroughly tested and is guaranteed with a 2 year extended warranty Rating Label...

  • Page 2: Important Instructions

    IMPORTANT INSTRUCTIONS WARNING When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1. Read all instructions before installing or using WARNING this heater. Risk of Electrical Shock. Do not insert or allow foreign objects to enter any ventilation or exhaust WARNING opening as this may cause an electric shock or...

  • Page 3: Installation Instructions

    REQUIRED MINIMUM distance of 6 inches from adjacent surfac- REQUIRED MINIMUM distance of 6 inches from adjacent surfac- es and 4-1/2 inches from the floor (See Figure 3). However, Cadet es and 4-1/2 inches from the floor (See Figure 3). However, Cadet...

  • Page 4: Heater Assembly

    Position the heater assembly to fit adapter plate to the surface of the wall can (See Figure 4). Be sure all lead wires are inside the wall can before securing heater assembly. (Use the four #10 32 x ½ inch machine screws; two at top and two at bottom.) Spring Clip RB/RBF Wall Can Heater Assembly Grill Frame...

  • Page 5: Warranty

    LIMITED TWO-YEAR WARRANTY: Cadet will repair or replace 8. These warranties give you specific legal rights, and you may any RBF heater found to be defective within two years after the also have other rights which vary from state to state. Cadet nei- date of purchase.

  • Page 6: Maintaining Your Heater

    5. The entire heater, or any of its components may be checked for continuity to de- control. termine the cause of any problems. Repair or replace the heater or rocker switch. Page 6 ©2013 Cadet Printed in USA Rev 10/13 #720196...
  • Page 7 • Calza en la cámara de pared del modelo RBC o bien puede usarlo con la cámara de pared del RBFC se vende por separado • Su calentador Cadet ha sido completamente probado y cuenta con una garantía extendida de 2 años Etiqueta calificación...

  • Page 8: Instrucciones Importantes

    INSTRUCCIONES IMPORTANTES ADVERTENCIA Al utilizar artefactos eléctricos, siempre se deben adoptar precauciones básicas para reducir el riesgo de incendios, electrocución y lesiones personales, incluyendo lo siguiente: ADVERTENCIA 1. Lea todas las instrucciones antes de instalar o usar este calentador. Riesgo de electrocución. No introduzca ni permita que ingresen objetos en las aberturas ADVERTENCIA de la ventilación o escape, ya que ello puede...

  • Page 9: Instrucciones Para La Instalación

    4-1/2 pulgadas desde el piso (vea la La distancia MÍNIMA REQUERIDA es de 6 pulgadas desde las figura 3). Sin embargo, Cadet RECOMIENDA 12 pulgadas desde superficies adyacentes y 4-1/2 pulgadas desde el piso (vea la las superficies adyacentes y el piso para lograr un rendimiento figura 3).
  • Page 10 Fije el conjunto usando los cuatro tornillos maquinados No. 10 32 x ½ pulg.; dos en la parte superior, y dos en la inferior. Presilla a resorte Cámara de pared RB/RBF Conjunto del calentador Bastidor de la rejilla Rejilla...
  • Page 11 GARANTÍA LIMITADA DE DOS AÑOS: Cadet reparará o reemplazará 8. Estas garantías le otorgan derechos legales específicos y es posible todo calentador RBF que se determine esté averiado en un plazo de dos que usted tenga otros derechos que varíen de un estado a otro. Cadet años a partir de la fecha de compra.
  • Page 12 5. Se debe revisar la continuidad de todo el calentador, o bien de sus componen- lante averiado. tes a fin de determinar la causa de cualquier problema. Repare o reemplace el calentador o control de interruptor basculante. Página 12 ©2013 Cadet Impreso en EE UU Rev 10/13 #720196...
